Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-596+F650
-
Warranty:
-
18 Months
-
Product name:
-
Tire Changer Machine
-
Color:
-
Red/ Blue
-
Outside clamping:
-
10"-20"
-
Inside clamping:
-
12''-24''
-
Certification:
-
CE
Quick Details
-
Motor Power:
-
1.1Kw/0.75Kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110v/220v/380v/415v
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Jaray
-
Model Number:
-
F-596+F650
-
Warranty:
-
18 Months
-
Product name:
-
Tire Changer Machine
-
Color:
-
Red/ Blue
-
Outside clamping:
-
10"-20"
-
Inside clamping:
-
12''-24''
-
Certification:
-
CE
|
Product name
|

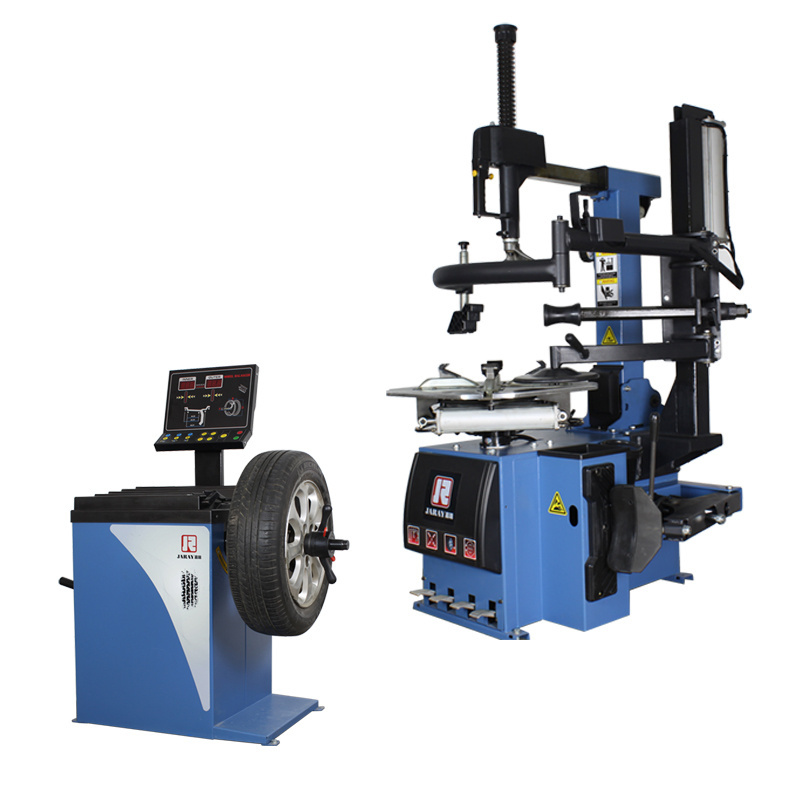

Right helper arm backward tire changer
|
Product model
|
F-596
|
|
Outer Clamp
|
10-20
|
Inter Clamp
|
12-24
|
|
Max.Wheel Width
|
345mm
|
Max.Wheel Diameter
|
1040mm
|
|
Motor voltage
|
220v/380v
|
Motor power
|
1.1kw/0.75kw
|
|
Working noise
|
<70db
|
Operating air pressure
|
8-10bar
|
|
Net weight
|
210kg
|
Gross weight
|
320kg
|
|
Equipment size
|
1100mm×900mm×1820mm
|
Packing dimensions
|
1180mm×920mm×1770mm
|
Professional tire changer disassembly head, carbon steel material,special technology. Ensure the strength of the disassembly head.
The column of the box body is connected with the box body at 6 contact points, and the front and rear gears of the column base control the backward inclination range of the column.column cylinder is equipped with speed limit to control the backward
inclination speed of the column.
inclination speed of the column.
The back end of the woking shovel support is lengthened, so that the force angle of the shovel is better and the storage box is super large.
The aluminum alloy explosion-proof oil-water separator accurately controls the pressure and oil output. Increase the service life of the machine, connect the inflation pipeline behind the water filter cup to control the moisture in the inflation gas circuit.
Fine processing work plate and anti scraping blade design ensure smooth movement of claw during operation,
Carbon structural steel claw, wear-resistant and rust proof. The angle is reasonable and suitable for the bending degree of the hub. Whether the inner support or the outer clamp, the hub will be firmly fixed.
The cylinder adopts a special cylinder to ensure the roundness of the cylinder. Thicken the pull rod of phosphating cylinder to increase the tensile force.
All aluminum foot pedal and frame, anti-Corrosion, anti rust, durable, drawer design, easy to disassemble.
The five-way valve is stressed in the horizontal direction to increase the service life of the valve body. All metal joint to ensure air tightness
Aluminum shovel cylinder, corrosion resistant and durable, thickened all inclusive box, removable foot pedal, pure copper motor.
Random Accessories
Packing box style
|
Product name
|
Medium wheel balancer
|
Product model
|
F-650
|
|
Motor voltage
|
220v
|
Motor power
|
0.25kw
|
|
Max.wheel diameter
|
1000mm
|
Maxi.wheel weight
|
65kg
|
|
Measuring time
|
6-8s
|
Balancing accuracy
|
±1g
|
|
Rim width
|
1.5-16
|
Rim diameter
|
13-24
|
|
Spindle speed
|
≤200r/min
|
Gross weight
|
110kg
|
|
Equipment size
|
1070mm×580mm×1290mm
|
Packing dimensions
|
1000mm×680mm×1060mm
|
The top cover of injection moulding process ensures beauty and strength, and the multi-station toolbox facilitates the classsification of balance blocks.
Independent operation of the display panel, with a better angle of operation.
Precision spindle cooperates with low resistance bearing to ensure data accuracy. Phosphating treatment of spindle, anti-corrosion and anti-rustg to better fit with the circular column and enhance the stress contact area.
High sensitive photovoltaic panel is more accurate in numerical value.
The motor is certified by ce, the noise of pure copper core is low, and the heat dissipation performance of aluminium alloy end cover is stronger, which can avoid the motor temperature caused by frequent starting or braking.
Random Accessories
Packing box style
