- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V or 380V
-
Power:
-
30000
-
Dimension(L*W*H):
-
8000*1200*800
-
Weight (KG):
-
800
-
Temperature range:
-
RT to 200C/300C
-
Drying process:
-
Continuous Automatic Drying Machine
-
Heating source:
-
Electric/gas
-
Heating elements:
-
stainless steel heater
-
Product Type:
-

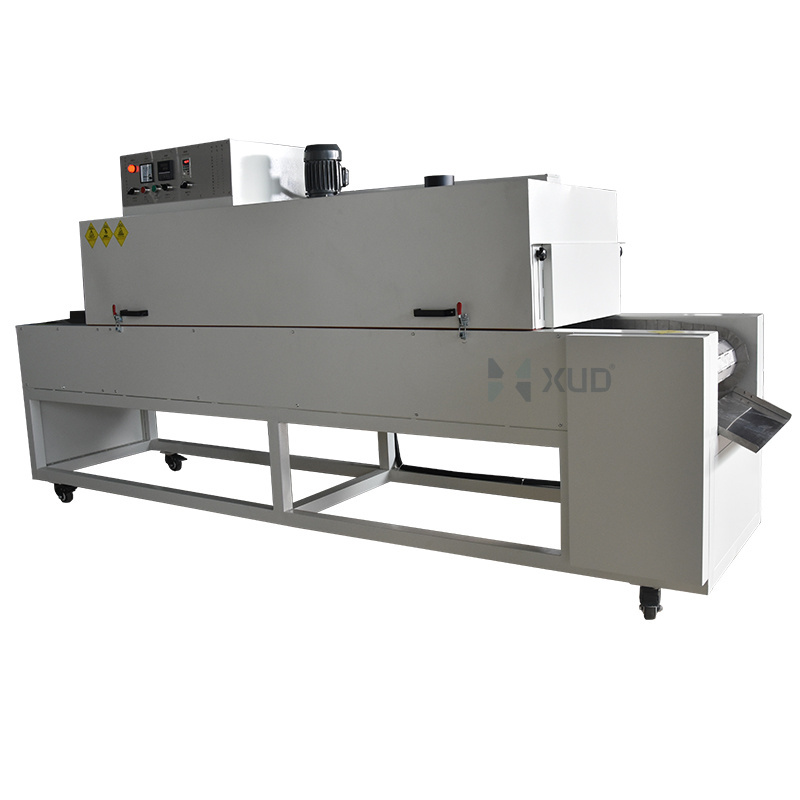

Tunnel IR Drying Machine
-
Drying Oven Application:
-
Plastic/Metal/Screen printing/Chemical
-
Our certificate:
-
CE
-
Controller:
-
PID + SSR + Timer(Programmable Touch Screen Controller)
-
Belt type:
-
PVC/stainless steel mesh wire etc
-
Speed of belt:
-
0-10m/min(adjustable)
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUD
-
Voltage:
-
220V or 380V
-
Power:
-
30000
-
Dimension(L*W*H):
-
8000*1200*800
-
Weight (KG):
-
800
-
Temperature range:
-
RT to 200C/300C
-
Drying process:
-
Continuous Automatic Drying Machine
-
Heating source:
-
Electric/gas
-
Heating elements:
-
stainless steel heater
-
Product Type:
-
Tunnel IR Drying Machine
-
Drying Oven Application:
-
Plastic/Metal/Screen printing/Chemical
-
Our certificate:
-
CE
-
Controller:
-
PID + SSR + Timer(Programmable Touch Screen Controller)
-
Belt type:
-
PVC/stainless steel mesh wire etc
-
Speed of belt:
-
0-10m/min(adjustable)
The features of our dryer:
1.Temperature Range:RT-250℃, adjustable, constant temperature, independent temperature control of each section;
2. Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature;
3. The interior is made of high quality thermal insulation materials with good thermal insulation effect;
4. Internal hot air circulation, baking objects evenly heated;
5. Fast heating time, stable and accurate temperature;
6. Double over temperature protection, safe and reliable electrical control;
7. Domestic first-class heat insulation and heat breaking technology, remarkable sealing effect;
8. The shell temperature of the body is low, which has little influence on indoor ambient temperature;
9. Environmental protection,energy-saving, strong safety performance.
2. Intelligent temperature controller, PID automatic calculation, LED display, with SCR power silicon controlled, can accurately control the precision of temperature;
3. The interior is made of high quality thermal insulation materials with good thermal insulation effect;
4. Internal hot air circulation, baking objects evenly heated;
5. Fast heating time, stable and accurate temperature;
6. Double over temperature protection, safe and reliable electrical control;
7. Domestic first-class heat insulation and heat breaking technology, remarkable sealing effect;
8. The shell temperature of the body is low, which has little influence on indoor ambient temperature;
9. Environmental protection,energy-saving, strong safety performance.
|
Model No
|
XUD2200
|
XUD12000
|
||
|
Heating area size
|
L1500*W400*H120mm
|
L10000*W600*H300mm
|
||
|
Overall size
|
L2200*W650*H1300mm
|
L12000*W1010*H1770mm
|
||
|
Inlet and outlet size
|
500mm inlet, 200mm outlet
|
1 meter each
|
||
|
The normal working temperature
|
RT～150 ℃
(Customized)
|
RT～200℃
(Customized)
|
||
|
Conveyor drying oven's Material
|
Inner stainless steel 201
(SS 201,SS 304,galvanized plate,customized)
|
|
||
|
Belt's material
|
PVC/stainless steel/teflon mesh belt
(Customized)
|
|
||
|
Heat preservation material
|
Good quality 100K grade high density aluminum silicate fiber filling (insulation layer thickness is 90mm)
|
|
||
|
Power
|
6KW
|
45KW
|
||
|
Voltage
|
380V 50HZ 3PH
|
|
||
|
Quantity of heating zones
|
1 pcs
|
5pcs
|
||
|
Temperature control
|
Adopt intelligent dual LED digital temperature control meter with P.I.D self-setting and SSR solid-state relay output,making temperature control more accurate
|
|
||
|
Protection device
|
It has leakage (short circuit) protection, phase sequence lack of phase (wrong phase) protection, motor overload (over current) protection, over temperature power off protection,safe and reliable
|
|
||
|
Standard size,fast dispatch! All requirements can customize,click here to inquiry.
|
|
|
||
* Customer application case
Our customers using tunnel drying oven to dry metal after washing or waxing etc,for water drying ,curing or other products processing.
Q1：Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of all kinds of industrial dying oven manufacturer in China .Every machine from our factory has a 14-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
Q2: What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. 100% On-time delivery.
Q
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
Q4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Q5. How to install and use the product?
We will send you operating instructions, English video by Email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
