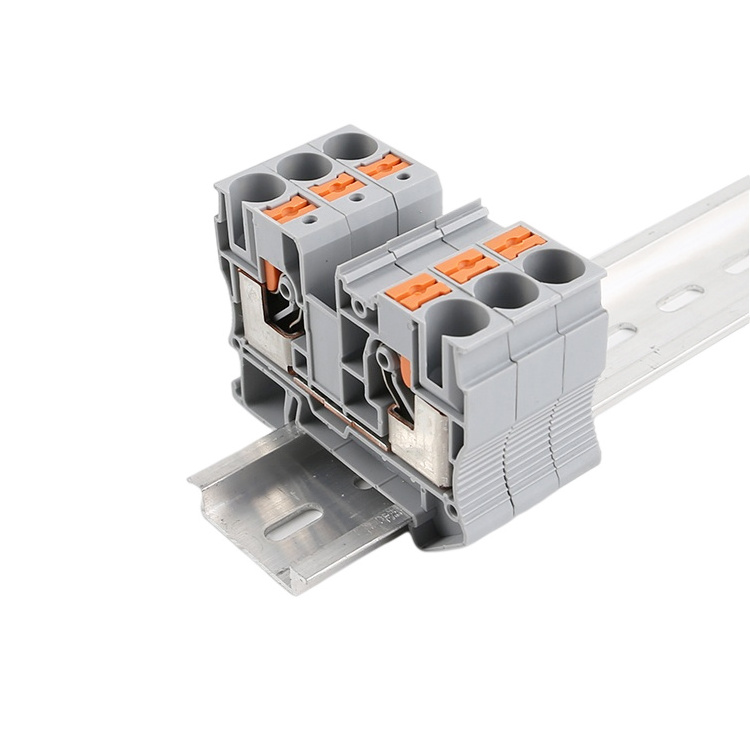

PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block
PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block

PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.01
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Item:
Push in Din Rail Mounting Terminal Block
Cross section, solid/soft Cable:
0.5-16mm² / 0.5-10 mm²
Material:
Flame resistant Nylon PA66, Nickel plated brass conductor
Color:
Gray ,Orange ,Blue/ Customized
Application:
Wire Connecting
Current:
57A
Mounting Type:
DIN Rail NS 35
Certification:
CE RoHS
Connection method:
Spring connection
Rated Voltage:
1000V

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
BAOTENG
Model Number:
PT 10
Item:
Push in Din Rail Mounting Terminal Block
Cross section, solid/soft Cable:
0.5-16mm² / 0.5-10 mm²
Material:
Flame resistant Nylon PA66, Nickel plated brass conductor
Color:
Gray ,Orange ,Blue/ Customized
Application:
Wire Connecting
Current:
57A
Mounting Type:
DIN Rail NS 35
Certification:
CE RoHS
Connection method:
Spring connection
Rated Voltage:
1000V

PT 10 mm Feed Through Screwless Pluggable Quick Wire Connector Spring Cage Push in Din Rail Mounting Terminal Block

Bannar

Product Description

PT series terminals block

Specifications

1. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.

2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.

3. Electric potential distribution is realized by eitherconnecting central adaptor to the center of  terminal or inserting a side adaptor to the cone jack.

4. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.

5. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.

6. Two ends on the top with white marking system to realize uniformed sign.

7. 15 years lifetime.

8. OEM acceptable.

Model N o.

PT 10

Length/Height/Wide (mm)

67.7/49.5/10.2

Type

Push in Spring Cage Din Rail Terminal Blocks

Material

Flame resistant Nylon PA66 , Nickel plated brass conductor

Rated Voltage /Current

1000V /57A

Application

Wire Connecting

C ross section , solid/soft Cable

0.5 - 16 mm² / 0. 5 - 10 mm²

Conductor Size

20-6AWG

Mounting Type

DIN Rail NS 35

Standard

IEC 60947-7-1

LOGO

BAOTENLINK,  LOGO can be customized

Color

Grey, Blue, other color can be customized

Certification

CE/Ro HS / CQC/ISO 9001

Name

Din Rail Electric Terminal Block
