Quick Details
-
Jacket:
-
Rubber
-
Place of Origin:
-
China
-
Brand Name:
-
Speed cable
-
Model Number:
-
H01N2 D Welding Cable
-
Product name:
-
0 3 5 8 Guage Electric Welding Machine Cable Manufacturers
-
Wire guage:
-
0 3 5 8 Gauge
-
Rated voltage:
-
AC 200V OR 400V DC
-
Color:
-
Red or Black
-
Conductor working temperature:
-
No More Than 65 Degree
-
Sheath thickness:
-
2.1mm
-
Service:
-
OEM/ODM
-
Customized products:
-
Available as per drawing or sample
Quick Details
-
Insulation Material:
-
Rubber
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
Rubber
-
Place of Origin:
-
China
-
Brand Name:
-
Speed cable
-
Model Number:
-
H01N2 D Welding Cable
-
Product name:
-
0 3 5 8 Guage Electric Welding Machine Cable Manufacturers
-
Wire guage:
-
0 3 5 8 Gauge
-
Rated voltage:
-
AC 200V OR 400V DC
-
Color:
-
Red or Black
-
Conductor working temperature:
-
No More Than 65 Degree
-
Sheath thickness:
-
2.1mm
-
Service:
-
OEM/ODM
-
Customized products:
-
Available as per drawing or sample

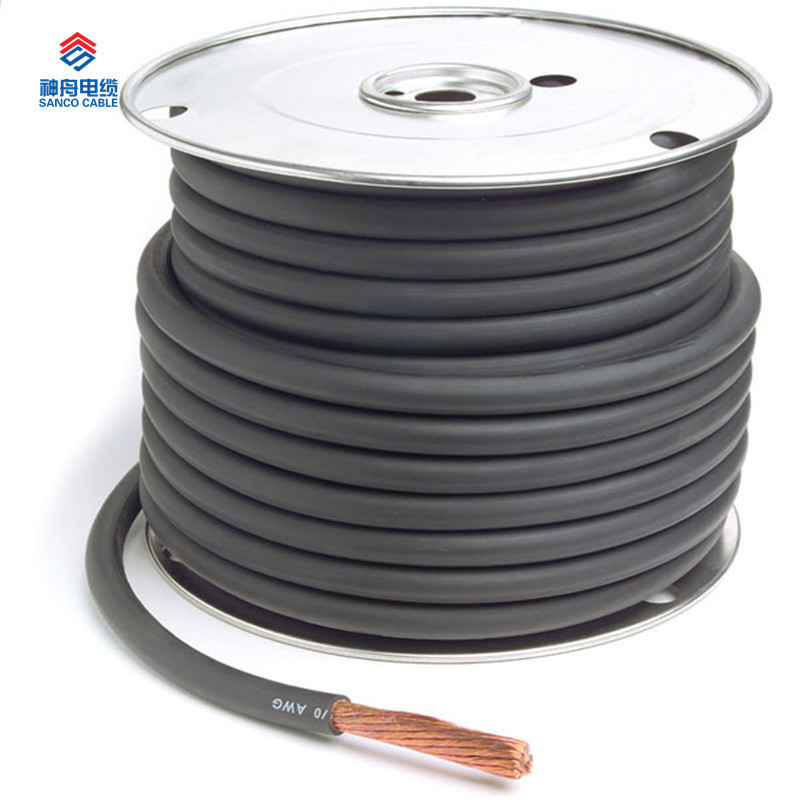

0 3 5 8 Gauge Electric Welding Machine Cable Manufacturers
Process Flow:
Application and structure:
The electric welding machine cable is used for electric welder secondary side wiring and connecting electric tweezers,welding machine or hand operation.also can be used as entertainment or stage lighting cables for movie theater, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, and as a cheaper alternative to pendant/reeling cable on hoists and cranes.
Conductor:Plain annealed copper wire or tinned copper wire
Separator:Polyester film isolating layer
Jacket: Rubber ,Neoprene or other equivalent synthetic elastomer rubber sheathed welding cable
Standard:IEC 60245
maximum temperature at
conductor:
85 °C
max. operating temperature,
fixed:
-20 - +85 °C
nominal voltage Uo: 100 V
nominal voltage U: 100 V
Feature and specification:
The
electric welding machine cable
can resistant to cuts, tears and abrasion in addition to moisture.
Welding Wire offers good color retention along with great flexibility.
| Wire guage |
Nom. Area
mm2 |
Max. Dia. of wire
mm |
Nom. Cover Thickness mm |
Average O.D. mm |
Maximum DC
Resistance at 20℃
|
|
| Min. | Max. | bare copper | ||||
| 8awg | 10mm2 | 0.21 | 1.2 | 6.2 | 7.8 | 1.91 |
| 6awg | 16mm2 | 1.2 | 7.3 | 9.1 | 1.21 | |
| 4awg | 25mm2 | 1.2 | 8.6 | 10.8 | 0.78 | |
| 2awg | 35mm2 | 1.2 | 9.8 | 12.3 | 0.554 | |
| 1/0 guage | 50mm2 | 1.5 | 11.9 | 14.8 | 0.386 | |
| 2/0 guage | 70mm2 | 1.5 | 13.6 | 17 | 0.272 | |
| 3/0 guage | 95mm2 | 1.8 | 15.6 | 19.5 | 0.206 | |
Noted:We can also provide tinned copper conductor electric welding machine cable . more details pls click here
