Stiffener
It is also called internal bracing wire/hook.
It is commonly installed in the welded gabion cages to prevent bulging out and
ensure the tidy and firm structure. The materials of stiffener can be galvanized or Galfan steel wire, which is same as the mesh wire of welded gabion cage. It can also be made of stainless steel wire, which supply higher tensile strength and more durable
life.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
shitai
-
Model Number:
-
HT-010
-
Wire Gauge:
-
2.0-6.0mm
-
Surface treatment:
-
Galvanized PVC coated
-
Product name:
-
Gabion Wall
-
Certificate:
-
ISO 9001:2008
-
Usage:
-
Flood Control Retaining Wall
-
Packing:
-
Pallet
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
gabion mesh
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
shitai
-
Model Number:
-
HT-010
-
Wire Gauge:
-
2.0-6.0mm
-
Surface treatment:
-
Galvanized PVC coated
-
Product name:
-
Gabion Wall
-
Certificate:
-
ISO 9001:2008
-
Usage:
-
Flood Control Retaining Wall
-
Packing:
-
Pallet

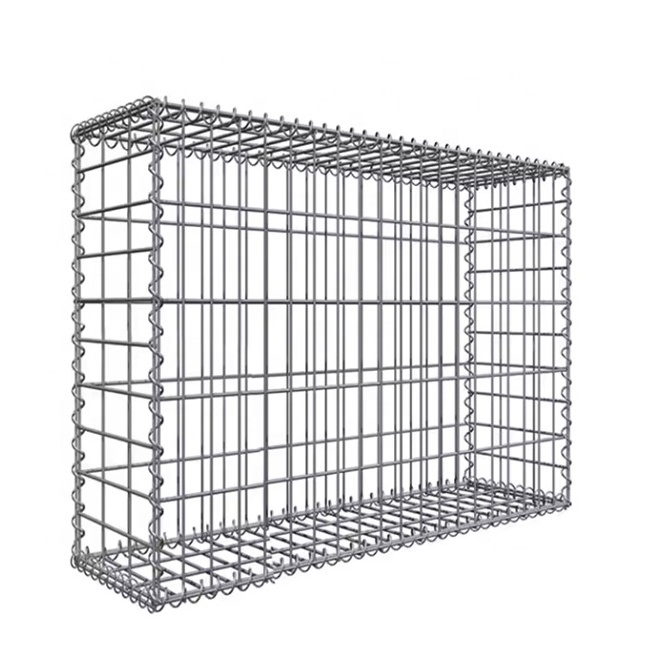

Gabion wall construction welded wire mesh gabion
Welded Gabion Mesh
is made of high-quality low-carbon steel wire, which is processed and formed by automatic, precise and accurate mechanical equipment in strict accordance with the standard of BS1052:1986.
And the surface is passivated and plasticized by processes such as electro-galvanizing, hot-dip galvanizing, dip-plastic coating or Galfan(Zinc-aluminium coating).
|
Wire Diameter(mm)
|
3.0mm, 4.0mm, 5.0mm, 6.0mm, etc.
|
|
Mesh Opening(mm)
|
50mm, 75mm, 100mm, 50x100mm, 100x150mm, 100x200mm, etc.
|
|
Gabion Size (m)
|
1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m, 1x1x0.5m, 2x1x0.5m, etc.
|
|
Customization
|
All above sizes can customized according to your request.
|
High Quality Gabion Basket, w
e strictly control every step from product material selection, processing to production. All molded gabions need to go through strict quality inspection before they can be packaged for sale.
1. High Quality Raw Materials
The weight of
zinc coating
is different for different materials, which is meet the quality testing standard of EN10244-2:2001.
Normal
Hot dipped galvanized material's zinc coating is 40-80g/㎡,
Heavy galvanized material's zinc coating is 220-300g/㎡,
Galfan material's zinc coating is 220-500g/㎡,
The
tensile strength
of different materials also varies, generally ranging from 350-550MPA, and even up to 800MPA, all
meet the quality testing standard of EN ISO 6892-1:2016.
Attached is the
quality inspection report
of Galfan coated low-carbon steel wire:
2. High Strength Welding Mesh
Galvanized
welded mesh is made of high-quality low-carbon steel wire welded, with firm solder joints after electro galvanized or hot-dip galvanized.
firm solder joint, smooth surface, uniform mesh, not easy to fall off
3.
Finished Gabion Quality Inspection
gabion wire diameter, gabion mesh opening, gabion size
We can package the gabions according to the customer's requirements:
1.by pallets, 2.by creat, 3.by carton, 4.by plastic film then by pallet, 5.by pallet in a container, etc.
Support shipping types:
land transportation, sea transportation, air transportation, express delivery. We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.
1.by pallets, 2.by creat, 3.by carton, 4.by plastic film then by pallet, 5.by pallet in a container, etc.
Support shipping types:
land transportation, sea transportation, air transportation, express delivery. We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.
Connection Types of welded gabion box:
•
Spiral wire connection
The spiral wire is made of high quality galvanized steel wire, Galfan coated steel wire, PVC coating steel wire and stainless steel wire. It is widely used in the welded gabion cages fixation and fastening.
•
Lacing wire connection
The lacing wire is the most economical type.It made of galvanized wire, PVC coating wire, Galfan coated wire.
The lacing wire is the most economical type.It made of galvanized wire, PVC coating wire, Galfan coated wire.
•
C ring connection
Compared with lacing wire, the C ring can save more times and it is very easy to operate, just use the professional C ring guns to fasten the gabio cage.
Compared with lacing wire, the C ring can save more times and it is very easy to operate, just use the professional C ring guns to fasten the gabio cage.
•
U clip connection
U clip
is an metal sheet shaped clips which has better tensile strength than the C rings or lacing wire, and it has long service life. Material: high quality stainless steel.
Welded gabion mesh is widely used, mainly for park landscape modeling, building exterior walls, and outsourcing of commercial building. The welded gabion has simple construction, beautiful structure, low cost, easy installation and durability. It is an ideal choice for garden decoration and slope protection and greening.
Welded Gabion Applications:
|
Protective Applications:
|
Landscape Constructions:
|
|
• Retaining wall
|
• Gabion bench
|
|
• Slope protection
|
• Gabion planter
|
|
• River channel controlling
|
• Fireplaces
|
|
• Defense barrier
|
• Gabion staircase
|
|
• Noise barrier wall
|
• Gabion pot
|
|
• Bridge protection
|
• Gabion partition wall
|
|
• Soil strengthening
|
• Gabion barbecue
|
|
• Seawall protection
|
• Gabion waterfall
|
|
• Flood controlling
|
• Gabion flower pot
|
Anping Shitai Wire Mesh Products CO., LTD
Which is founded in 1991, has been devoted into gabion R&D and production for 30+ years, our main products include
wire mesh, welded mesh,
welded gabion, hexagonal gabion, gabion mattress, defensive barrier,
crimped screen mesh, 358
fence, chain link fence, protection mesh, etc.
All products from Shitai Wire Mesh have been up to EU, GB , ISO9001 and ASTM standards. With the philosophy of "Quality first, Customer first, Service first", Shitai wire mesh has gained good reputation in both domestic and overseas market.
OUR SERVICES
◆Pre-sale Service
1. Sample can be offered free fast while courier fee paid by buyer's side.
2. We have full stock, and can delivery within 3 days. Many styles for you to choose.
3. OEM and ODM order are accepted, any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service is what we are trying best to offer you.
5. All of our products are product by our professional workman and we have our high work effect foreign trade team. You can totally believe our service.
6. We have rich experience of design, manufacture and sell, we cherish every order from our honor.
◆
After You Choose
1. We will count cheapest shipped cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after you payment.
3. Email you the tracking No. and help to check the parcels until it arrive you.
◆
After-sale Service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please feel free to contact us by Email or Telephone.
Q:Are you factory or Middleman?
A:Yes, we are factory, have been in providing the professional products in gabion field for 20+ years.
Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
Q:How many days you need to produce one container gabion?
A:Production Time: 12-15 days for one container.
A:Yes, we are factory, have been in providing the professional products in gabion field for 20+ years.
Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q: How about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
Q:How many days you need to produce one container gabion?
A:Production Time: 12-15 days for one container.
