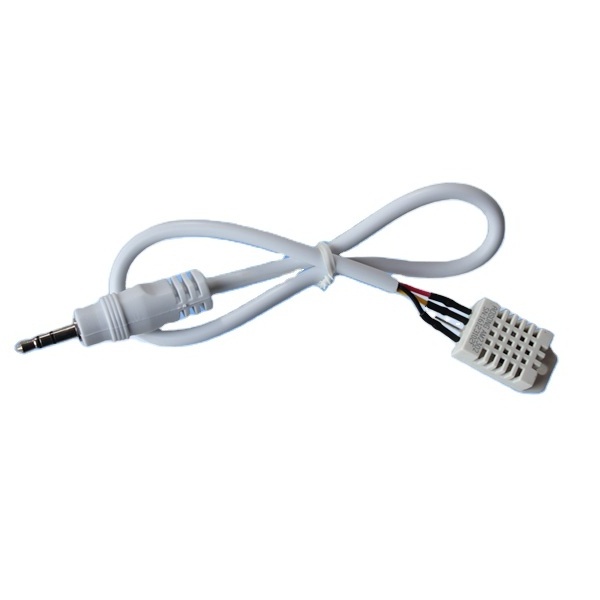

new design DHT22 AM2302 temperature and humidity sensor

new design DHT22 AM2302 temperature and humidity sensor

Features:

• Unique 1Wire interface requires only one port pin for communication. Multidrop
• capability simplifies distributed temperature sensing applications. Requires no
• external components
• Operating temperature range:-55°C to +125°C (-67F to +257F), ±0.5°C accuracy
• from -10 °C to +85°C
• Can be powered from data line. Power supply range is 3.0V to 5.5V
• Thermometer resolution is programmable from 9 to 12 bits.
• Size of Sheath:6*30mm

Application:

The DS18B20 Digital Thermometer provides 9 to 12bit (configurable) temperature

readings which indicate the temperature of the device. Information is sent to/from the

DS18B20 over a 1Wire interface, so that only one wire (and ground)needs to be

connected from a central microprocessor to a DS18B20. Power for reading, writing,

and performing temperature conversions can be derived from the data line itself with no

need for an external power source.

Because each DS18B20 contains a unique silicone serial number, multiple DS18B20s

can exist on the same 1Wire bus. This allows for placing temperature sensors in many

different places. Applications where this feature is useful include HVAC environmental

controls, sensing temperatures inside buildings,equipment or machinery, and process

monitoring and control.

Product display:

Detail pictures:

Drawing:

Similar products:

Packaging Details:

** 1-50KG,by courier

** 50-100KG,by air

** Above 100KG,by sea

Company information:

Guangzhou Jianyuan Electronic Co.,Ltd. was established in 2004,egaged in NTC thermistor,temperature and humidity sensors and connectors,Factory has mearly 2.000

square meters.

Our company possesses not only the advanced manufacturing equipments,completed

testing facilities and 90% experienced high-quality managers,15 engineers and technicians,

but also an independent and completed system intergrating researching,developing,

manuf acturing and selling.Based on the superior quality and silver service,our products are

popular in Europe,South America,Middle East,Russia,Africa,and other countries.

Nowadays our good reputation has been shaped in the international market.

The company inherts the following management philosophy:pursue quality and satisfy

the customer,improve our management level and product quality with steady step,our

company has successfully passed ISO 9001 QC system certification.

To look forward to the future,the company will develop continuously with the working

spirit of innovating,keeping improving practically and constantly and will be introducing

competitive products and service constantly to gain your trust remarkably!

How to Order :

In order to help you get the exact model, please offer the following necessary info.:

1, The application of the ds18b20 sensor:__________

2, Working environment of ds18b20 sensor:________

3, The range of operation temperature:___°c to ___°c

4, The dimension and the drawing of the sensor- cable length___, probe diameter___ and probe length__.

5, Connector model
