Quick Details
-
Rolling thinckness:
-
0.2-1.0mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HOWANN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5200mm*1300mm*800mm
-
Weight:
-
2200 kg
-
Feeding width:
-
Other
-
Product Name:
-
metal gutter machine
-
Frame Materials:
-
350H steel
-
Diameter:
-
50 solid
-
Forming Shaft:
-
Material 45# quenched and tempered
-
Cutting System:
-
Hydraulic Cutting
-
Electric tension:
-
380V 50 Hz 3 Phase or as your requirements
-
Main Engine power:
-
5.5 KW
-
Hydraulic oil:
-
40# hydraulic oil
-
Material of cutting table:
-
Gr 12 mould steel with quenched treatment
-
Certificate:
-
ISO CE
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.2-1.0mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HOWANN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5200mm*1300mm*800mm
-
Weight:
-
2200 kg
-
Feeding width:
-
Other
-
Product Name:
-
metal gutter machine
-
Frame Materials:
-
350H steel
-
Diameter:
-
50 solid
-
Forming Shaft:
-
Material 45# quenched and tempered
-
Cutting System:
-
Hydraulic Cutting
-
Electric tension:
-
380V 50 Hz 3 Phase or as your requirements
-
Main Engine power:
-
5.5 KW
-
Hydraulic oil:
-
40# hydraulic oil
-
Material of cutting table:
-
Gr 12 mould steel with quenched treatment
-
Certificate:
-
ISO CE
Product Description

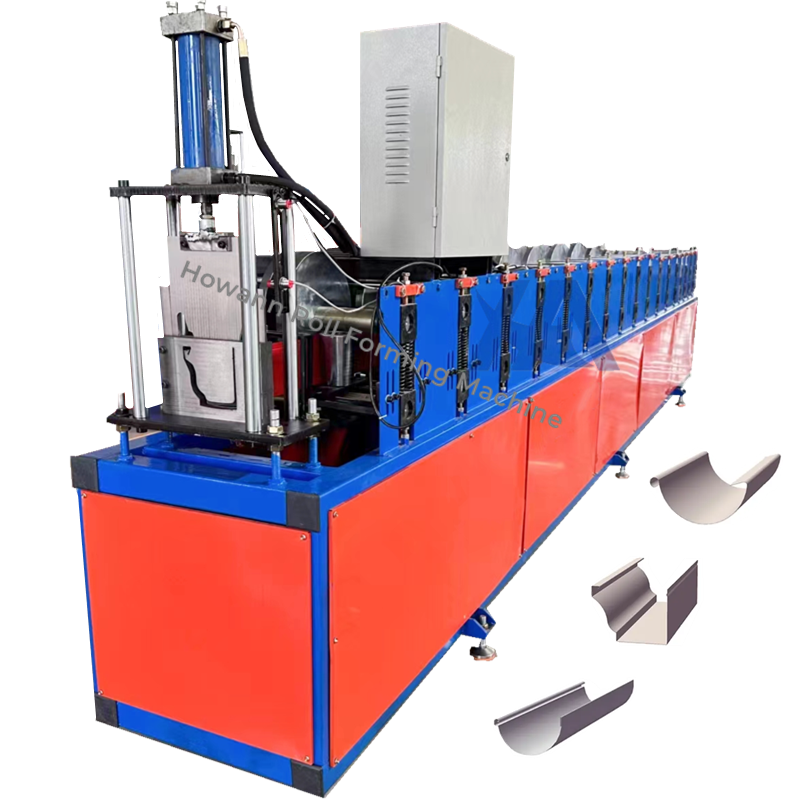

This gutter roll forming machine
is for steel or aluminum sheet cold form industries. It can form rain gutter profiles according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production. Therefore, it is really a new type of energy-saving and high-effective equipment for metal rain gutters. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
The working flow
Uncoiling --- Material Feeding --- Roll Forming --- Step Making --- Automatic Cutting --- Products Receiving
|
|
||
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Construction works
|
|
|
Product Name
|
gutter Roll Forming Machine
|
|
|
Frame Materials
|
350H steel
|
|
|
Diameter
|
80mm
|
|
|
Forming roller
|
16row
|
|
|
Forming Shaft
|
Material 45# quenched and tempered
|
|
|
Max.speed
|
15m/min
|
|
|
Effective with
|
80-300mm
|
|
|
Pressing width
|
1000mm
|
|
|
Cutting System
|
Hydraulic Cutting
|
|
|
Main Engine power
|
22 KW with cycloidal reducer
|
|
|
Electric tension
|
380V 50 Hz 3 Phase or as your requirements
|
|
|
Hydraulic oil
|
40# hydraulic oil
|
|
|
Material of cutting table
|
Cr 12 mould steel with quenched treatment
|
|
Product Details
If you are interested in our products, please do not hesitate, you can contact us directly, I believe we will have a good cooperation.
WhatsApp: +8615036181512 E-mail: eva@howann.cn
