Quick Details
-
Ejector Force(kN):
-
33 kN
-
Theoretical Shot Volume(cm³):
-
253 cm³
-
Injection Rate (g/s):
-
107.5 g/s
-
Injection Weight (g):
-
230 g
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
4000
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
IJT-H140
-
Brand Name:
-
INJECT
-
Power (kW):
-
11 kW
-
Opening Stroke:
-
360MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
type of machine:
-
130T plastic injection molding machine price
-
color:
-
white and green
-
termperature control:
-
Closed loop PID
-
Mold temperature control:
-
Included
-
Spare parts:
-
Included
-
Power supply monitored:
-
Included
-
Feed throat-temperature:
-
Included
-
screen:
-
color LCD
-
Certification:
-
CE and ISO9000
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
420 mm
-
Distance between Tie Bars(Height)(mm):
-
420 mm
-
Ejector Stroke(mm):
-
120 mm
-
Ejector Force(kN):
-
33 kN
-
Theoretical Shot Volume(cm³):
-
253 cm³
-
Injection Rate (g/s):
-
107.5 g/s
-
Injection Weight (g):
-
230 g
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
4000
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
360 mm
-
Model Number:
-
IJT-H140
-
Brand Name:
-
INJECT
-
Power (kW):
-
11 kW
-
Opening Stroke:
-
360MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
type of machine:
-
130T plastic injection molding machine price
-
color:
-
white and green
-
termperature control:
-
Closed loop PID
-
Mold temperature control:
-
Included
-
Spare parts:
-
Included
-
Power supply monitored:
-
Included
-
Feed throat-temperature:
-
Included
-
screen:
-
color LCD
-
Certification:
-
CE and ISO9000
plastic

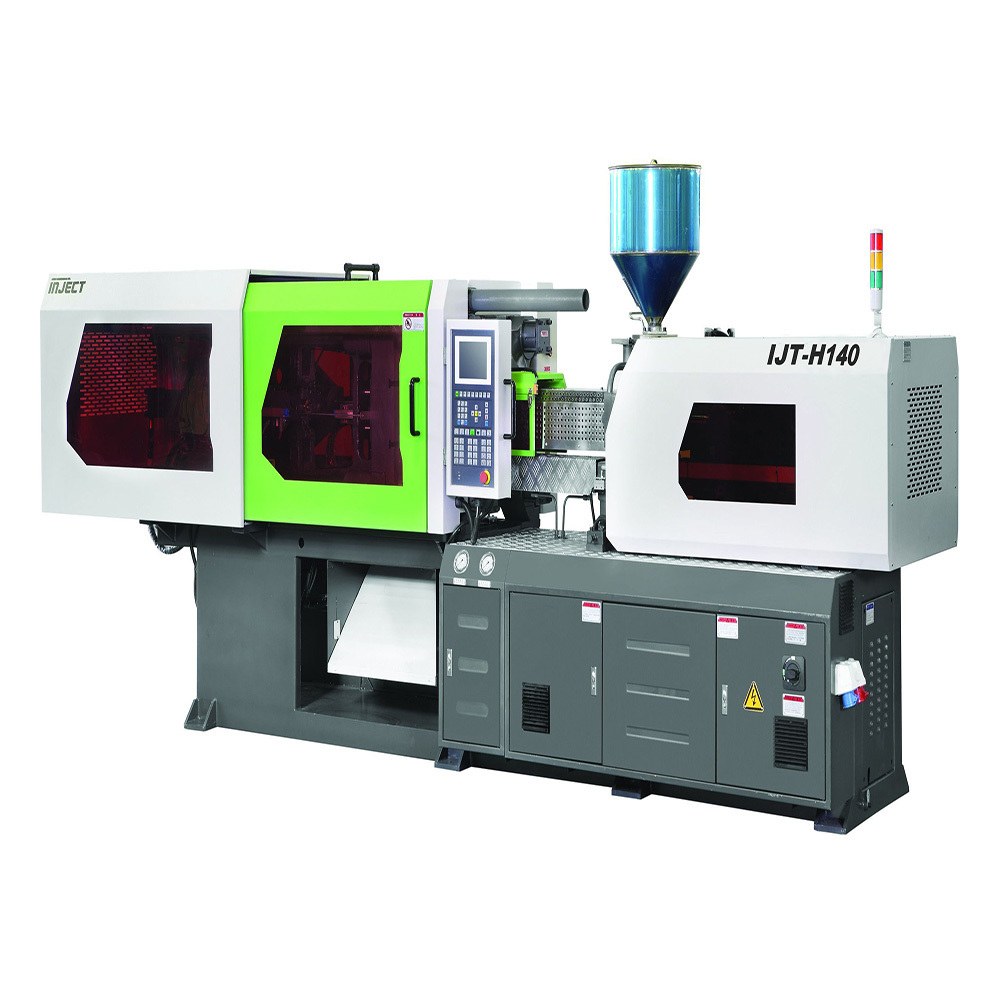

INJECT Variable injection machine
Technical Data
|
|
IJT -H140 |
|||
|
Injection Unit |
||||
|
Screw Diameter |
mm |
36 |
40 |
45 |
|
Screw L/D Ratio |
L/D |
24.3 |
21.9 |
19.5 |
|
Shot Volume |
cm ³ |
203 |
253 |
321 |
|
Injection Weight (PS) |
g |
185 |
230 |
292 |
|
Injection Pressure |
Mpa |
203 |
164 |
130 |
|
Injection Rate |
cm³/s |
87 |
107.5 |
136 |
|
Plasticizing Capacity |
g/s |
14.1 |
19.4 |
26.4 |
|
Screw Speed |
rpm |
0-220 |
||
|
Clamping Unit |
||||
|
Clamping Tonnage |
KN |
1300 |
||
|
Toggle Stroke |
mm |
360 |
||
|
Space Between Tie-bars |
mm |
420x420 |
||
|
Max. Mold Height |
mm |
450 |
||
|
Min. Mold Height |
mm |
150 |
||
|
Ejector Stroke |
mm |
120 |
||
|
Ejector Tonnage |
KN |
33 |
||
|
Ejector Number |
P iece |
5 | ||
|
Others |
|
|||
|
Max. Pump Pressure |
Mpa |
14 |
||
|
Motor Power |
KW |
11 | ||
|
Heater Power |
KW |
7.7 |
||
|
Machine Dimension |
m |
4.75x1.25x1.85 |
||
|
Machine Weight |
ton |
4 |
||
|
Oil Tank Capacity |
L |
220 |
||
Usually packed by wood or customized. Shipped by sea .
