Quick Details
-
service:
-
factory direct sale
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
material:
-
silicone rubber
-
tensile strength:
-
high pressure
-
service:
-
factory direct sale

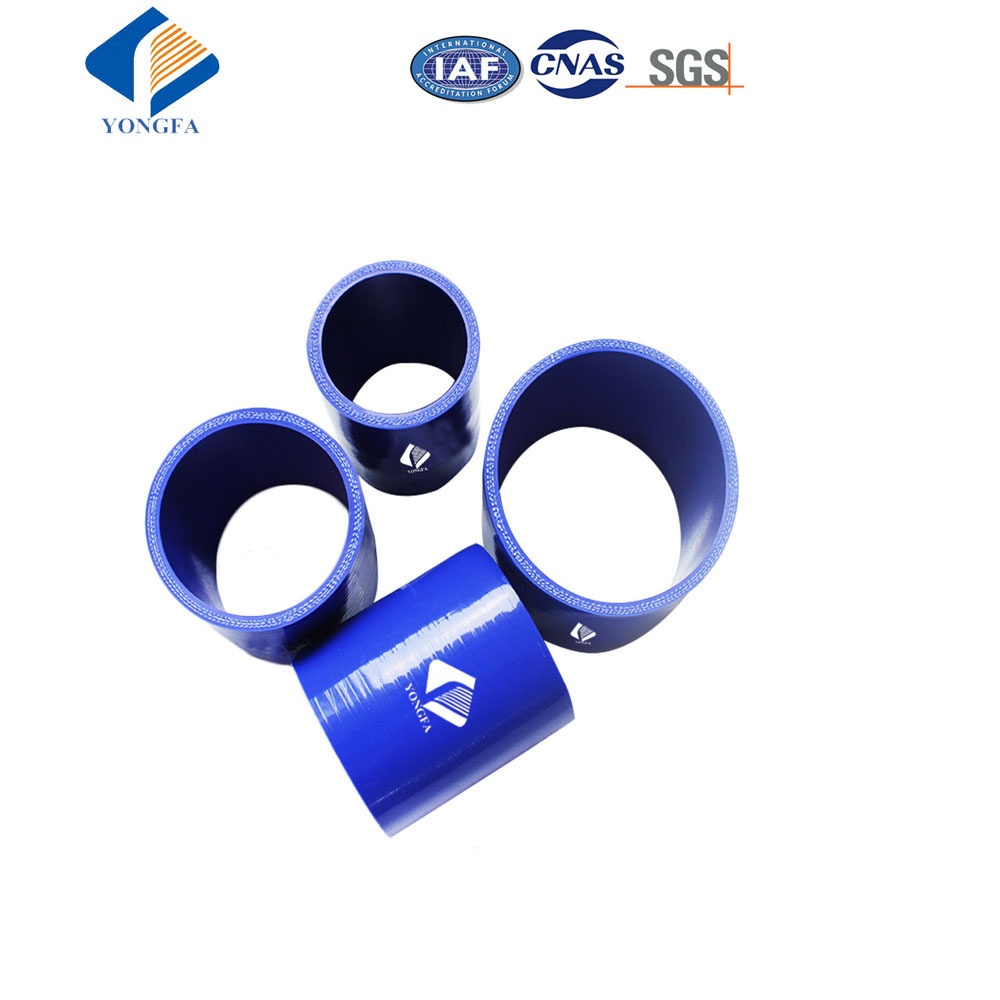

2018 china manufacturer 76mm intake straight hump silicone hose pipe .
High quality silicone hoses, which are specially designed for auto and truck.All of our silicone hoses are 4ply Reinforced for the high pressure and temperature environments. Also they are resistant to UV, water, oxygen, and oil.
|
Products |
Straight Silicone Hose |
|
Products features |
|
|
Working temperature |
-60 ~ 260 °C |
|
Support Pressure |
0.3 to 0.9MPa |
|
Bursting Pressure |
2MPa |
|
Hardness |
35~80 shore A |
|
Thickness |
2mm ~ 6mm |
|
Diameter Range |
10mm~120mm |
|
Color options |
blue/black/red ,at your request |
|
Size tolerance |
+/- 0.5mm |
|
Reinforcement |
3~4 layers of polyester or nomex |
|
We can provide special products, according to your drawings or samples at any time. Your logo or number can print on the hoses.
|
|
Straight Silicone Hose specification:
| ID(mm) | Length(mm) | PLY | THICKNESS(mm) |
| 25 | 76 | 3 | 4 |
| 38 | 76 | 3 | 4 |
| 40 | 76 | 3 | 4 |
| 45 | 76 | 3 | 4 |
| 51 | 76 | 3 | 4 |
| 54 | 76 | 3 | 4 |
| 57 | 76 | 3 | 4 |
| 60 | 76 | 3 | 4 |
| 64 | 76 | 3 | 4 |
| 70 | 76 | 3 | 4 |
| 76 | 76 | 4 | 5 |
| 80 | 76 | 4 | 5 |
| 83 | 76 | 4 | 5 |
| 89 | 76 | 4 | 5 |
| 102 | 76 | 4 | 5 |
| 114 | 76 | 4 | 5 |
| 127 | 76 | 4 | 5 |
