Quick Details
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
2000 - 5800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
LINGLING
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
350 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
grinding machine for spice food cassia tea chemical mushroom
-
Function:
-
grinding machine for spice food cassia tea chemical mushroom
-
Usage:
-
corn root grinder detergent soap crusher powder grinding machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Quick Details
-
Output (kg/h):
-
20 - 2000 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
80 - 1500 mesh
-
Power (kW):
-
13.37
-
Range of Spindle Speed(r.p.m):
-
2000 - 5800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
LINGLING
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
350 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
grinding machine for spice food cassia tea chemical mushroom
-
Function:
-
grinding machine for spice food cassia tea chemical mushroom
-
Usage:
-
corn root grinder detergent soap crusher powder grinding machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None

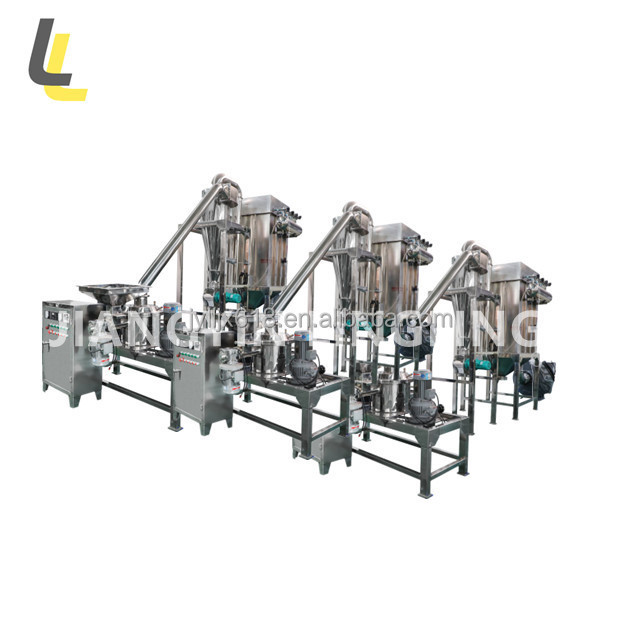

WFJ tea ginger turmeric moringa leaf air classifier mill ultra fine powder grinder
MAIN APPLICATION
The machine is made up of three parts: main machine, discharge part and dust collecting part. The particle is filtered by
wind,which ensures the fineness and uniformity of the particle.It is widely used in food, chemiacal,cosmetics, plastic, dyestuff, resin, colourant, and agricultural industry.
wind,which ensures the fineness and uniformity of the particle.It is widely used in food, chemiacal,cosmetics, plastic, dyestuff, resin, colourant, and agricultural industry.
WORKING PRINCIPLE
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.
Technical Data:
|
Model
|
WFJ-10
|
WFJ-15
|
WFJ-20
|
WFJ-30
|
WFJ-60
|
WFJ-80
|
WFJ-100
|
||||||
|
Production Capacity (kg)
|
10~50
|
50~100
|
80~200
|
200~400
|
400~800
|
500~1000
|
600~1200
|
||||||
|
Feeding size (mm)
|
<5
|
<10
|
<10
|
<12
|
<12
|
<12
|
<12
|
||||||
|
Crushing fineness (mesh)
|
80-600
|
|
|
|
|
|
|
||||||
|
Motor power (kw)
|
12
|
13.37
|
18.37
|
42.5
|
77.5
|
96
|
138
|
||||||
|
Spindle speed (rpm)
|
4000
|
5800
|
4200
|
3800
|
3200
|
2800
|
2000
|
||||||
|
Weight (kg)
|
500
|
1000
|
1200
|
1800
|
2500
|
3000
|
4000
|
||||||
|
Overall dimension
(L*W*H)(mm) |
1700x1800x2200
|
4500x1250x2700
|
6000x1250x2900
|
7100x1300x3650
|
8000x2300x4500
|
8500x2500x4600
|
10000x2800x5000
|
||||||
