Quick Details
-
Product name:
-
streaming encoder sdi kenoview
-
Keyword:
-
iptv hd sdi encoder network encoder
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Input:
-
SDI
-
Audio/Video Outputs:
-
RJ45
-
Application:
-
IPTV OTT System Total Solution
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ONVIF2.4
-
Ethernet:
-
100Base-T Ethernet interface
-
The usual time:
-
100,000 hours
-
Rate Control:
-
CBR/VBR
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wanwon
-
Model Number:
-
SX-HE-NH100SW
-
Product name:
-
streaming encoder sdi kenoview
-
Keyword:
-
iptv hd sdi encoder network encoder
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Input:
-
SDI
-
Audio/Video Outputs:
-
RJ45
-
Application:
-
IPTV OTT System Total Solution
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ONVIF2.4
-
Ethernet:
-
100Base-T Ethernet interface
-
The usual time:
-
100,000 hours
-
Rate Control:
-
CBR/VBR

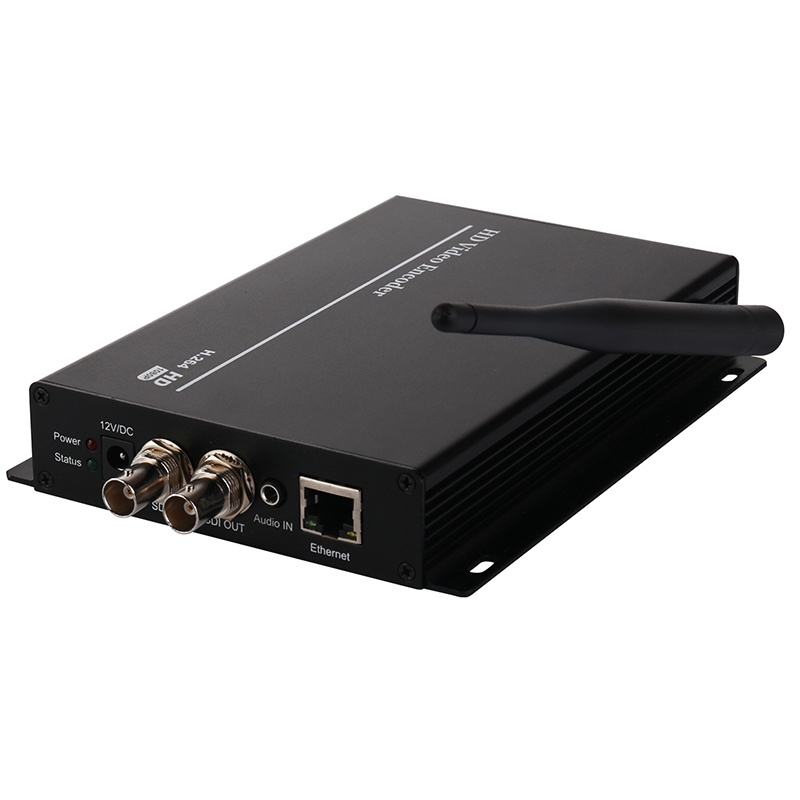

Wireless Wifi HD SDI IPTV live streaming video encoder for broadcasting
1. Introduction
H.264 SDI Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports input SDI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@30fps, 720@60fps, etc. This Encoder works with RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
2. Features
1. With 2 SDI ports, 1 SDI input, 1 SDI loopback.
2. Embedded HiLinux System, stable and effective.
3. Friendly Web Control UI, default IP is 192.168.0.31.
4. Support RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF.
5. Support output 2 RTMP (main stream & 2nd Stream) to different Media Server.
6. Main Stream Support output resolution - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270
7. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
8. Output Stream bitrate adjustable.
9. Support Audio digital gain.
10. Support Image quality Settings, Brightness, Contras, Hue, Saturation.
11. Support firmware upgrade.
12. Wifi version for option.
13. IP address can be set by yourself.
14. Support remote control via router port forward.
15. 3U chassis available, max supports 16Pcs Encoder installed.
3. Application
1. IPTV (Wowza, Xtream Codes, etc.,)
2. Online Live Broadcast
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
4. Specifications
|
Video |
|
|
Input |
2 * SDI |
|
Supports input SDI Resolution |
Max support 1920x1080P@60Hz |
|
Output Stream Resolution |
Max support 1920x1080P@30Hz / 720P@60Hz |
|
Data Rate |
0.8Mbps~12Mbps |
|
Rate Control |
CBR / VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|
Audio |
|
|
Encoding |
AAC |
|
Sampling rate |
Auto |
|
Bit-rate |
48K/64K/96K/128K/160K/192K |
|
Sampling precision |
24 bit |
|
Data Rate |
64Kb/s~384Kb/s |
|
System |
|
|
Ethernet |
100Base-T Ethernet interface |
|
Protocol |
RTMP, HTTP, RTSP, UDP/RTP, ONVIF |
|
User Interface |
WEB default IP - 192.168.0.31 |
|
Others |
|
|
Dimension (W* L*H) |
165*130*30mm |
|
Weight |
0.3kg |
|
Power |
12V/DC |
|
Consumption |
5W |
5. Connection Diagram
