Quick Details
-
Brand Name:
-
S4A
-
Model Number:
-
WS2 fingerprint wireless door lock
-
Type:
-
Fingerprint wireless door lock
-
WS2:
-
Fingerprint wireless door lock
-
User Capacity:
-
1000 Users
-
fingerprint users:
-
100
-
PIN / card users:
-
900
-
PIN Length:
-
4-6 digits
-
Card Type:
-
125KHz EM card
-
Communication Frequency:
-
433MHz
-
Communication Distance:
-
20m Maximum
-
Working Temperature:
-
Outdoor, IP65 (Fingerprint Keypad)
-
Physical:
-
Zinc-Alloy and ABS
Quick Details
-
Special Features:
-
Use battery
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
WS2 fingerprint wireless door lock
-
Type:
-
Fingerprint wireless door lock
-
WS2:
-
Fingerprint wireless door lock
-
User Capacity:
-
1000 Users
-
fingerprint users:
-
100
-
PIN / card users:
-
900
-
PIN Length:
-
4-6 digits
-
Card Type:
-
125KHz EM card
-
Communication Frequency:
-
433MHz
-
Communication Distance:
-
20m Maximum
-
Working Temperature:
-
Outdoor, IP65 (Fingerprint Keypad)
-
Physical:
-
Zinc-Alloy and ABS
Fingerprint access control keypad rfid reader wireless door lock with remote control and wireless exit button 1000 Users
The WS2 is an IP65 DIY Fingerprint Lock Kit for home/office use.

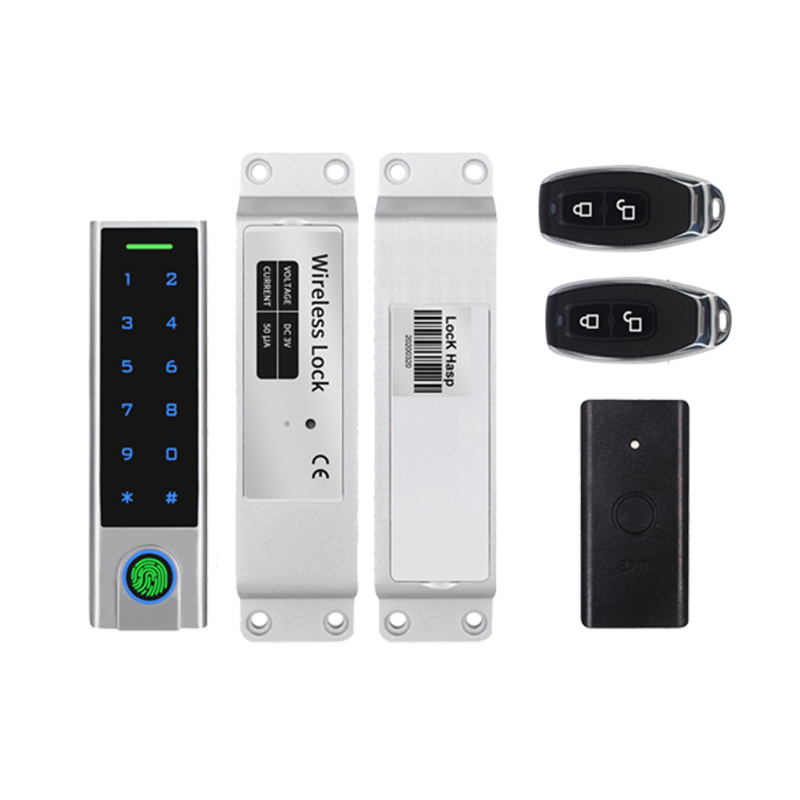

It includes a Metal Wireless Fingerprint Keypad+ a Wireless Bolt Lock + a Wireless Exit Button + 2pcs
Remote Transmitters. 433MHz Rolling Code of encryption algorithm and the split design guarantee higher-secure.
IP65 DIY Fingerprint Lock Kit
> All wireless, no need wires any more
> Easy for installation and operation
> Open times: 16,000 times for lock, 10,000 times for keypad
> 433MHz Rolling Code technology
> Ultra low power consumption
> With two remote transmitters
> Metal Wireless Fingerprint Keypad (IP65)
> Communication distance: 20M max
> Open the lock by fingerprint keypad, wireless exit button and remote transmitters
> Battery life: more than 12 months
|
Specification |
|
|
User Capacity |
1000 Users (including 100 fingerprint users + 900 PIN / card users) |
|
PIN Length |
4-6 digits |
|
Card Type |
125KHz EM card |
|
Operating Voltage |
|
|
Wireless Lock |
2 units of AA batteries |
|
Wireless Fingerprint Keypad |
3 units of AAA batteries |
|
Wireless Exit Button |
1 units of 2032 Lithium battery |
|
Remote Transmitter |
1 unit of 2032 Lithium battery |
|
Idle Current |
All items < 10uA |
|
Working Current |
|
|
Wireless Fingerprint Keypad |
< 50mA |
|
Wireless Lock |
< 42mA |
|
Wireless Exit Button |
< 3mA |
|
Remote Transmitter |
< 3mA |
|
Communication Frequency |
433MHz |
|
Communication Distance |
20m Maximum |
|
Working Temperature |
Outdoor, IP65 (Fingerprint Keypad) |
|
Operating Temperature |
|
|
Wireless Lock |
-20°C~+60°C (-4°F~+140°F) |
|
Wireless Fingerprint Keypad |
-20°C~+60°C (-4°F~+140°F) |
|
Operating Humidity |
0%~86%RH |
|
Physical |
|
|
Wireless Lock |
Zinc-Alloy |
|
Wireless Fingerprint Keypad |
Zinc-Alloy |
|
Others |
ABS Shell |
|
Dimensions |
|
|
Wireless Fingerprint Keypad |
L149 * W43.5 * H22 (mm) |
|
Wireless Lock |
L170 x W39 x D25(mm) |
|
Wireless Exit Button |
L83 x W40 x D16(mm) |
|
Remote Transmitter |
L62 x W30 x D11.5(mm) |
|
