REAL Power Wind Generator Aluminum Blades / 1KW Windmill System 1000W 12v 24V 48V 96V Strong Wind Turbine 5 PCS 1.2m 1.5kw 2.8m

1kw wind power generator is an equipment to convert wind energy into electric power which is

changed into storage battery group. It can be widely used in rich wind areas but without normal

energy supply from any power system . It is capable of providing power for lighting, TV,

telecommunication equipment and so on.

FD2.8-1kw wind turbine normal spec

Model	FD2.8-1K
Rated Power	1000W
Max Power	1500W
Blades Rotor Diameter	2.8m ( 9.18 ft.)
Blade Quantity &Material	3 Pcs / FRP
Rated Rotate Speed	380(r/min)
Start Torque	0.4(N.M)
Generator Type	PMG AC Direct Drive
Generator Material	Aluminium body+Copper wire+Nd-Fe-B
Normal Output Voltage	24V 48V 120V 240V 300V 360V 500V provide customized service
Optional Output Voltage(DC)	24-500V
Start Wind Speed	2 m/s
Rated Wind Speed	9m/s
Working Wind Speed	3-25m/s (6.72-56 mph)
MAX.Design Wind Speed	40m/s (89.6mph)
Tower Height	6m(19.68ft)higher available
Top Weight	55kg
Protection method	yaw + auto brake

FD3.2-1kw wind turbine normal spec

Model:	FD3.2-1000W
Rotor Diameter:	3.2m
Number of Blades:	3pcs
Material of Blades:	Fibre glass expoxy
Cut-in wind speed:	2m/s
Working wind speed:	2-25m/s
Survival wind speed:	40m/s
Rated wind speed:	8m/s
Rated rotate speed:	350r/min
Rated output power:	1000w
Max output power:	1500w
Type of tower:	Guy wire tower
Type of generator:	Permanent-magnet 3 phrase AC
Speed regulation method:	Yaw
Working voltage:	DC48V/DC24V
Operating Temperature:	-60℃---+60℃
Tower height:	guy wire tower 9m
Tower weight:	60kgs
Wind turbine main body weight:	61kg
Measurement(CBM):	0.32 cbm(wind turbine, controller, inverter)
Life span:	15-20 years
Warranty:	3 years after installation

1kw wind turbine on grid system output power data:

Rated power (w)	Wind speed (m/s)	Rotation speed(r/min)	Working voltage(V)	Output power(W)
1000	3	164	55	42
	4	218	72	98
	5	263	86	192
	6	308	93	332
	7	342	108	528
	8	387	112	788
	9	431	120	1002
	10	456	132	1107
	11	478	142	1199
	12	496	150	1276
	13	520	156	1343
	14	543	185	1392
	15	564	224	1446
	16	581	240	1483
	17	598	263	1509
	18	614	322	1561
	19	630	339	1603
	20	642	350	1645

Wind turbine main body including: 3 pcs blades, nose cone, hub, generator, nacelle, tail rod,

tail vane.

Blades:

Vacuum mould blades with protection film

C.W blades, low noise level, high efficiency

FRB material, 3 pcs blades per set

Adjust blades rotor balance before delivery

PMA:

Rated output power: 1kw

2.On grid wind power system

Wind turbine on grid system: wind turbine with tower + PWM on grid controller with dump load

+ grid tie inverter

Matched controller

Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie

inverter. Controller with auto brake function, PWM voltage stablization function.

Type	1KW-24Vdc	1KW-48Vdc	1KW12V
Wind turbine rated power	1KW	1KW	1KW
Wind turbine max. power	2KW	2KW	2KW
Solar panel	300Wp	300Wp	300Wp
Battery	24Vdc	48Vdc	12Vdc
Function	Rectifier,charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current
PWM constant pressure voltage	>28Vdc	>56Vdc	>14Vdc
3-phase load voltage of the wind turbine	29±1Vdc	58±1Vdc	15±1Vdc
Recovery charging voltage of the wind turbine	27±1Vdc	54±1Vdc	13.5±1Vdc
Solar stop charge voltage	29±1Vdc	58±1Vdc	15±1Vdc
Solar recovery charging voltage	<28Vdc	<56Vdc	<14Vdc
Low-voltage of the battery	20±1Vdc	40±1Vdc	10±1Vdc
Self-provided connecting wire of the battery	>8mm²	>6mm²	>16 mm²
PWM fuse	63A	25A	100A
Solar fuse	16A	10A	40A
Charging fuse	63A	32A	125A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller (mm)	480*360*230	480*360*230	480*360*230
Weight of the controller	12Kg	11Kg	12 Kg
Size of the load (mm)	395*300*125	395*300*125	395*300*125
Weight of the load	5.5 Kg	5 Kg	5.5Kg

Matched Inverter:

Matched grid tie inverter 1.5kw/2kw; pure sine wave inverter single phrase 2kva/3kva

Inverter output voltage, frequency can be manufactured according to different countries request.

Grid tie inverter from ABB, Ginlong,BOS...

Wind turbine tower:

Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)

Tower height can be manufacture according to user's request.

The tower with  hot-galvanize.

We provided the tower foundation drawing after confirm the tower type, tower height.

Production Capacity: 200 sets per month

Main market: US, Canada, Australia, New Zealand, European...srtong wind place/typhoon place

Home, farm,  signal station, island, garden...

Testing Machinery:

Generator platform test

Blade balance adjustment instrument

Blade weight center test platform

1. Wind turbine use inner foam protection outer Plywooden case .

2. Tower with Foam package only .

3. Solar panels controller invertor  with inner carton box outer plywooden case.

4.Pakage size and weight please refer to our sales.

5.Shipping  by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your

request.

Packing details for 1 set wind turbine main body + 1 set controller with dump load:

Item#	Product description	Spec	Unit	Q'ty	Remark
1	main body	FD2.8-1kw24v	set	1	Including splitpin
	hex nut	M20*1.5	pcs	1	8.8 grade
	flat washer	φ20	pcs	1
	hexagon bolt	M10*25	pcs	4
	hexagon bolt	M10*80	pcs	4
	hex nut	M10	pcs	4
	flat washer	φ10	pcs	8
2	blades	FD2.8 L=1.34m	pcs	6
3	hub	FD2.8	set	1
	hexagon bolt	M12*80	pcs	9	8.8 grade
	hex nut	M12	pcs	9
	flat washer	φ12	pcs	9
	elastic pin	φ5*25	pcs	3
	hexagon bolt	M6*20	pcs	3	8.8 grade
	flat washer	φ6	pcs	3
4	nose cone	FD2.8	pcs	1
5	tail vane	1kw	set	1
6	tail rod	1kw	pcs	1
	hexagon bolt	M10*70	pcs	2	8.8 grade
	self lock nut	M10	pcs	2
	flat washer	φ10	pcs	2

System Design Service ;

We cam design diffirent system for customers according their request  For example, on-grid or off-grid system , solar

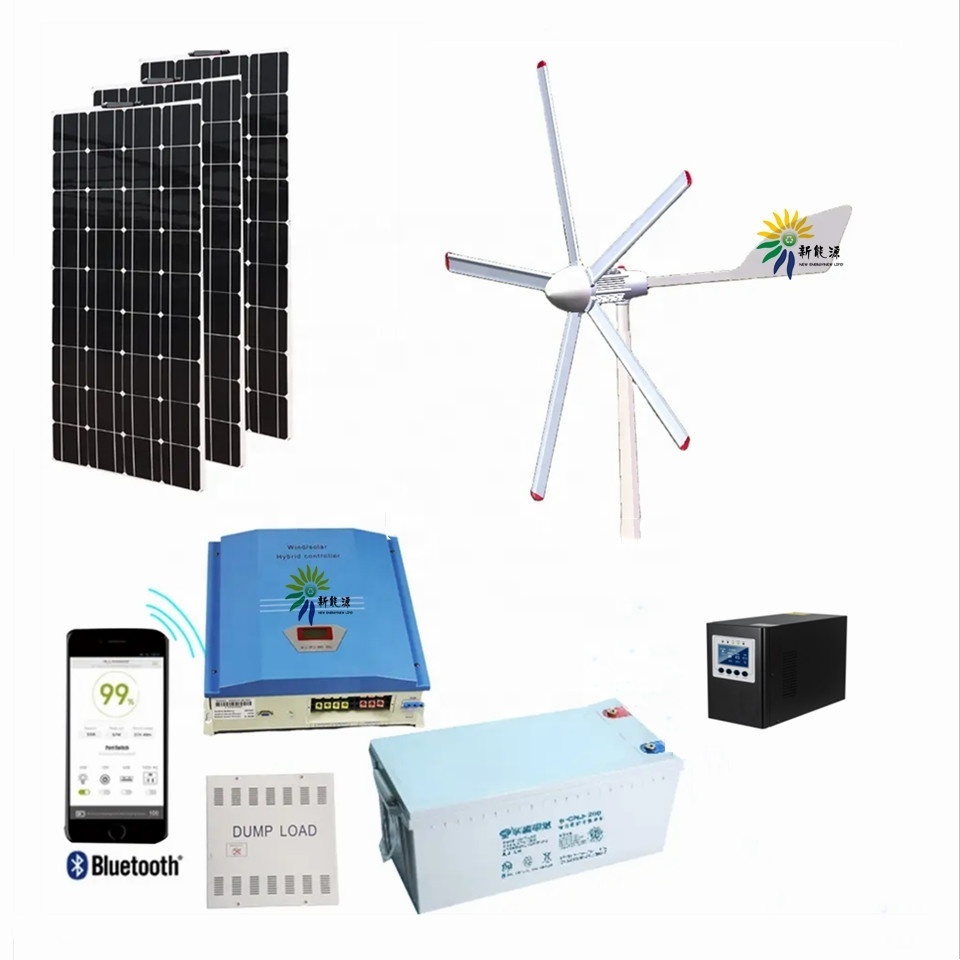

wind hybrid system or  solar wind  diesel generator  system  like below:
