Quick Details
-
Voltage:
-
clients local standard
-
Dimension(L*W*H):
-
500*1300mm
-
Weight:
-
1.2t, 1.2t
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Item:
-
mini gold wash plant
-
Usage:
-
Mining washing
-
Drum dia:
-
500 mm
-
Drum length:
-
1300 mm
-
Screen Size:
-
<3-20 mm
-
Capacity:
-
20-65t/h
-
engineer installation::
-
supply
-
staff training::
-
supply
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008 CE
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengcheng
-
Voltage:
-
clients local standard
-
Dimension(L*W*H):
-
500*1300mm
-
Weight:
-
1.2t, 1.2t
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Item:
-
mini gold wash plant
-
Usage:
-
Mining washing
-
Drum dia:
-
500 mm
-
Drum length:
-
1300 mm
-
Screen Size:
-
<3-20 mm
-
Capacity:
-
20-65t/h
-
engineer installation::
-
supply
-
staff training::
-
supply
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008 CE
Jiangxi small trommel screen mobile mini gold wash plant
Description of sand trommel screen :
Sand Trommel screen (washing plant) is a very important first step screening & washing equipment in gold processing projects,
It provides a simple, efficient and economical solution to upgrade a wide rang of material , and optimize the subsequent process steps of recovery. This method of screening helps not only to reduce manual operat ion and investment , also increase product grade , while allow s rapid and large volume processing.
FEATURES of sand trommel screen :
-
Screen replaceable for different mesh sizes
-
Multiple screen size
-
Easily changed screen plates
-
Unique screen design, result in higher capacities, longer screen life and no material clogging
-
Gear drive mechanism
MACHINE STRUCTURE
MACHINE WORKING PRINCIPLE:
♣ From the storage hopper ,the raw material is fed into the drum , and lifted up by the rotation, in the meantime washed by the flushing water as it falls back down, this action is repeated with each revolution along the wall of drum screen .the finer ore passes through the screen while the bigger ore tumbles towards the eventual exit at the backside of the drum.
♣ The fine size mineral ore is then passed to the downstream process equipment ,which can be in various forms ,such as centrifugal concentrator ,spiral chutes , jig machines etc .
Related Products :
| ♥ View More | ♥ View More |
|

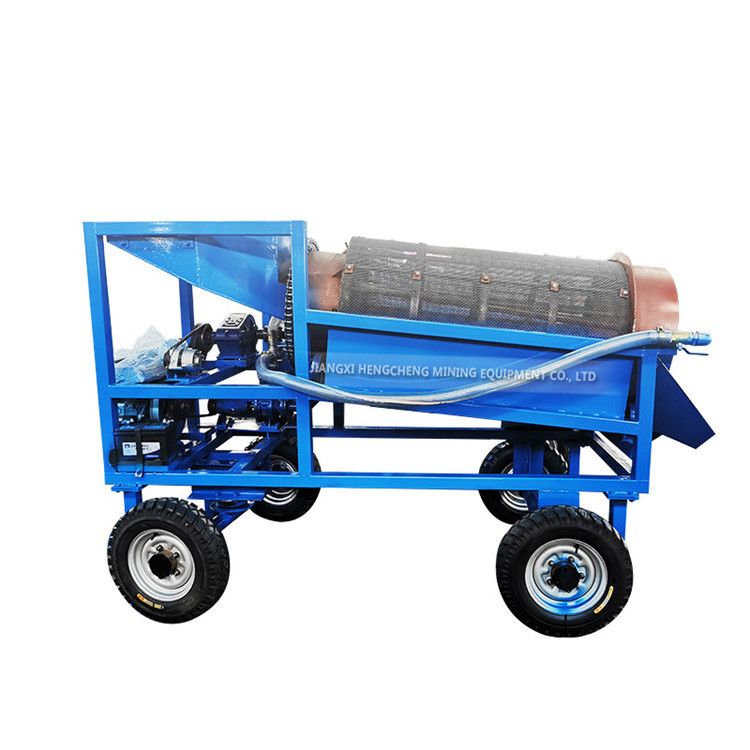

With wheels mobile gold washing machine
|
Technical data of sand trommel screen :
|
Model |
Capacity (t/h) |
Power (kw) |
Drum Diameter (mm) |
Drum Length (mm) |
sieve mesh Size (mm) |
Dimension (mm) |
Weight (kg) |
|
GT1015 |
10-15 |
4.0 |
1000 |
1500 |
<3~10 |
3000*1400*2145 |
2200 |
|
GT1020 |
20-25 |
5.0 |
1000 |
2000 |
3460*1400*2145 |
2800 |
|
|
GT1225 |
25-35 |
7.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
|
|
GT1530 |
35-50 |
11 |
1200 |
3000 |
4460*1900*2820 |
5100 |
|
|
GT1545 |
50-70 |
15 |
1500 |
4500 |
5960*1900*3080 |
6000 |
|
|
GT1848 |
70-90 |
22 |
1800 |
4800 |
6500*2300*4000 |
7500 |
|
|
GT2055 |
90-120 |
30 |
2000 |
5500 |
7500*2500*4000 |
8600 |
APPLICATION IN THE MINE SITES:
Sand Trommel screen( washing plant) is a main washing & screening machine for alluvial deposit minerals, especially for those gold mine sites ; our trommel machine already exported to many different countries, like Africa Ghana, Togo, Asia Philippines, Australia. etc
Packing & Delivery:
| Package | sand trommel screen |
| Outside package | Standard export wooden cases or as request of customers |
| Inner Package | Stretch film |
