Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feeding volume:
-
70%
-
Speed control:
-
Intelligent automatic PID control,50-300rpm,accuracy ± 5 ‰
-
PH control:
-
PID control,range: range: 0.00 to 14.00 ± 0.01
-
Temperature control:
-
PID control,PT100, accuracy± 0.2 ℃
-
Defoaming control:
-
PID control,100-100000Ω
-
Ventilation:
-
1: 1VVM
-
Pressure:
-
0-0.35MPa
-
Sterilization:
-
In situ
-
Exhaust:
-
Stainless steel condenser exhaust
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bailun
-
Weight:
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feeding volume:
-
70%
-
Speed control:
-
Intelligent automatic PID control,50-300rpm,accuracy ± 5 ‰
-
PH control:
-
PID control,range: range: 0.00 to 14.00 ± 0.01
-
Temperature control:
-
PID control,PT100, accuracy± 0.2 ℃
-
Defoaming control:
-
PID control,100-100000Ω
-
Ventilation:
-
1: 1VVM
-
Pressure:
-
0-0.35MPa
-
Sterilization:
-
In situ
-
Exhaust:
-
Stainless steel condenser exhaust

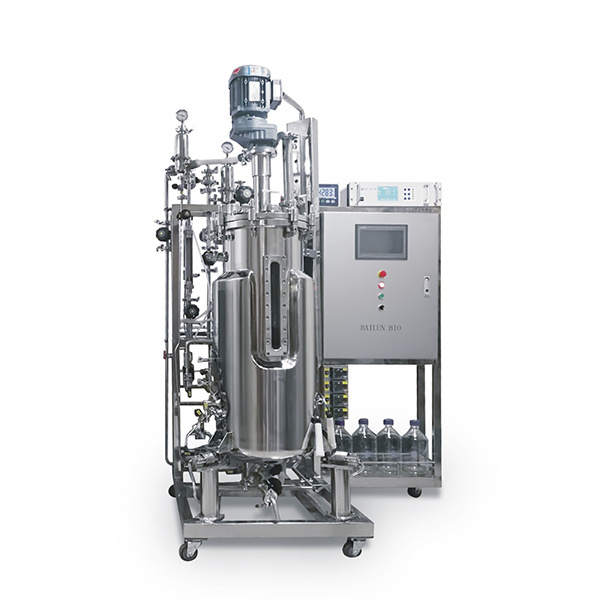

Product Description
Material: 316L stainless steel inside and 304 jacket
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications.
Our Factory in China.
We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications.
Our Factory in China.
We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
Specification
|
Item
|
Value
|
|
Processing
|
Fermenting Equipment
|
|
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Vaccine, Bacterial Culture
|
|
Condition
|
New
|
|
Place of Origin
|
Shanghai,
China
|
|
Brand Name
|
Bailun
|
|
Processing Types
|
lactic acid bacteria,yeast,enzymes,microorganisms,Fungus,MSG,soy sauce
|
|
Warranty
|
1 Year
|
|
|
Field installation, commissioning and training
|
|
Machinery Capacity
|
50L, 100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L
|
|
Machinery Test Report
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Gearbox, Motor, Gear, Pump, Pressure vessel, PLC, OTHER, Bearing, Engine
|
|
Key Selling Points
|
Automatic
|
|
Marketing Type
|
Hot Product 2019
|
|
Video outgoing-inspection
|
Provided
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Application
|
Culture bacterial yeast cell
|
|
Control system
|
PLC Siemens
|
|
Function
|
PH/DO/Foam/Temp control
|
|
Feeding volume
|
70%
|
|
Volume
|
2L-30000L
|
|
Material
|
Stainless steel 304/316
|
|
Sterilizatiom
|
In situ
|
|
PH/DO sensor
|
Mettler or Hamilton
|
Other downstream products
Tubular Centrifuge
Why Choose Us
1. Good price good quality with beautiful shape.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEc ertification.
6. Reliable factory, established since 1998.
7. Professional service and tec hnology support.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEc ertification.
6. Reliable factory, established since 1998.
7. Professional service and tec hnology support.
