Quick Details
-
Brand Name:
-
BOTUO
-
Model Number:
-
LB-06.10
-
Place of Origin:
-
Zhejiang, China
-
Theory:
-
Reciprocating Pump
-
Item:
-
SWRO High Pressure Pump
-
Flow Rate:
-
6 L/min (1.6 GPM)
-
Power:
-
2 HP (1.5KW)
-
Rotation Speed:
-
1450 r.p.m ( option 1750, 2800, 3400 rpm)
-
Warranty:
-
1 Year
-
Sample:
-
Sample available, be charged
-
Fuel:
-
Electricity Powered
-
Certification:
-
other
Quick Details
-
Application:
-
Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
other
-
Brand Name:
-
BOTUO
-
Model Number:
-
LB-06.10
-
Place of Origin:
-
Zhejiang, China
-
Theory:
-
Reciprocating Pump
-
Item:
-
SWRO High Pressure Pump
-
Flow Rate:
-
6 L/min (1.6 GPM)
-
Power:
-
2 HP (1.5KW)
-
Rotation Speed:
-
1450 r.p.m ( option 1750, 2800, 3400 rpm)
-
Warranty:
-
1 Year
-
Sample:
-
Sample available, be charged
-
Fuel:
-
Electricity Powered
-
Certification:
-
other

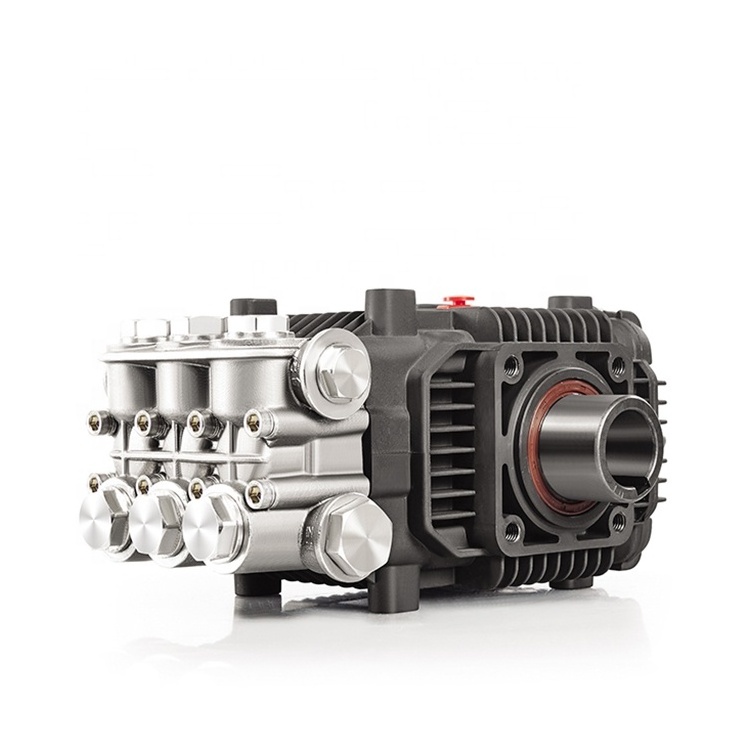

Stainless Steel Plunger Pump for SWRO Process
♦♦ Description of SWRO High Pressure Pump
We offer a complete line of stainless steel pumps to meet the demands of many industrial applications, such as reverse osmosis water desalination, seal gland flushing and waste water odor control. Available as 304, 316 stainless steel, these pumps offer flow and pressure ranges: 2-30L/min (0.6-8GPM), and 50-250Bar( 100-3625PSI), with outstanding corrosion resistance, strength and long service life .
♦♦ Specification of SWRO High Pressure Pump
|
Item |
SWRO High Pressure Pump |
|
Model |
LB-12.10- SWRO High Pressure Pump |
|
Flow Rate |
12 L/min (3GPM) |
|
Pressure |
100 Bar (1450 PSI) |
|
Power |
3 HP (2.2 KW) |
|
Rotation Speed |
1450 r.p.m ( option 1750, 2800, 3400 rpm) |
|
Lubrication |
Oil Bath |
|
Warranty |
1 Year |
|
Hollow Shaft |
24mm, 28mm Flange On |
|
Solid Shaft |
24mm |
|
Construction |
Triplex Ceramic Plunger |
|
Usage |
Chemical Water, Sea Water, Waste Water |
|
Application |
Reverse Osmosis, Desalination, Chemical Industries, Waste Water Odor Control |
♦♦ Tech Para.
|
Model |
Flow Rate |
Pressure |
Power |
Rotation |
Plunger |
Stroke |
|||
|
L/min |
GPM |
bar |
psi |
hp |
kw |
rpm |
mm |
mm |
|
|
LB2.10 |
2.3 |
0.6 |
100 |
1450 |
0.75 |
0.55 |
1450 |
15 |
3 |
|
LB3.10 |
3.1 |
0.8 |
100 |
1450 |
1 |
0.75 |
1450 |
15 |
4 |
|
LB4.10 |
3.8 |
1 |
100 |
1450 |
1 |
0.75 |
1450 |
15 |
5 |
|
LB6.10 |
5.4 |
1.4 |
100 |
1450 |
1.5 |
1.1 |
1450 |
15 |
7 |
|
LB8.14 |
7.7 |
2 |
140 |
2030 |
3 |
2.2 |
1450 |
15 |
10 |
|
LB12.10 |
11.1 |
2.9 |
100 |
1450 |
3 |
2.2 |
1450 |
18 |
10 |
|
LB15.10 |
15.5 |
4.1 |
100 |
1450 |
4 |
3 |
1450 |
18 |
14 |
|
Remark: |
1. Max. Pressure 250 bar |
||||||||
|
2. Hollow Shaft: 24, 28mm; Solid Shaft 24mm |
|||||||||
♦♦ Feature of SWRO High Pressure Pump
- High Strength Stainless Steel 316 Manifold
- Stainless Steel 304 Screw Bolt
- Precision Processed Ceramic Plunger, Durable, Dependable
- Aluminum Alloy Crankcase, Anti-Corrosion, Heat Dissipation
- Forged Crankshaft, Special Heat Treatment
- Alloy Connecting Rod
- Stainless Steel Checking Valve
- HP Seals
♦♦ Advantage & Benefits
1. Innovative & Unique
We are the trend-setter in China for this SWRO High Pressure Pump, we create & design and then introduce it to the consumers, in China, only a few companies have the ability to manufacture this pressure pump, with the unique & special feature, we proudly introduce them to you too.
2. Cost-Effective & Profitable
Compared to other overseas companies, we have great advantage in pricing, and presently, very few Chinese companies involve in this pump, we are the really right supplier or partner for you. It will be a profitable cooperation to work with us.
3. Stability & Dependability
We grasp all the technology of this SWRO High Pressure Pump, and we utilize the high grade materials & components. The quality is guaranteed.
4. Superior Service & Support
The technical support & assistance is available anytime, the quick-response will be effected, the spare parts requests will be solved by most economical way.
