Quick Details
-
Dimension(L*W*H):
-
1055*805*345mm
-
Weight:
-
27.1 KG
-
Name:
-
commercial oil press machine
-
Advantage:
-
High Oilput
-
Character:
-
Easy Movable
-
Function:
-
Oil Pressing
-
Color:
-
Customer Required
-
Quality:
-
High Level
-
Operation:
-
Easily
-
Keyword:
-
Soybean Oil Solvent Extraction Equipment
-
Model:
-
TS-BXG-128
Quick Details
-
Production Capacity:
-
98%-100%
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V/50HZ triphase
-
Dimension(L*W*H):
-
1055*805*345mm
-
Weight:
-
27.1 KG
-
Name:
-
commercial oil press machine
-
Advantage:
-
High Oilput
-
Character:
-
Easy Movable
-
Function:
-
Oil Pressing
-
Color:
-
Customer Required
-
Quality:
-
High Level
-
Operation:
-
Easily
-
Keyword:
-
Soybean Oil Solvent Extraction Equipment
-
Model:
-
TS-BXG-128
Sudan and Kenya warehouses
Welcome to our overseas warehouses in Sudan and Kenya
Product Description
1.
Description

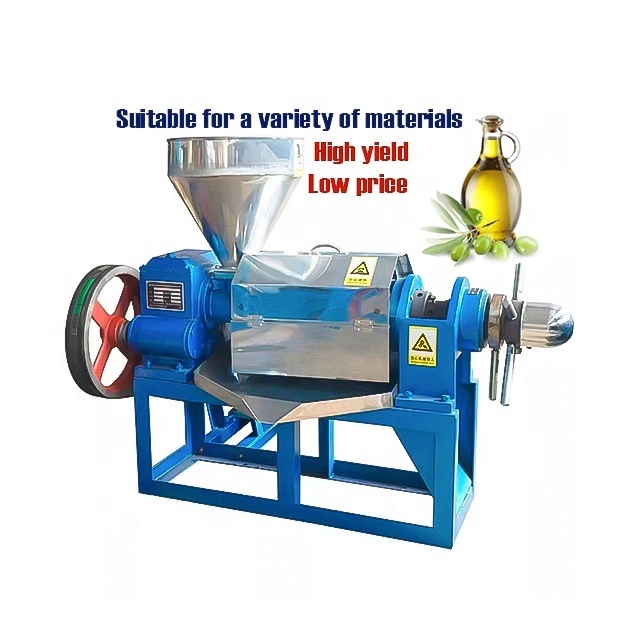

Screw type presses are advanced oil processing machinery, characterized by their simple design, easy to use, wide suitability and continuous operation; and high productivity and high oil output rate.Moreover, they can be used for various raw materials, as ground nuts, bean, rape and cotton seeds, sesame, olive, sunflower,coconuts and cocoa and grass seeds. Besides, they are suitable for medium-small sized oil extruding workshops or professional farmers. Certainly, they can be used for repressing in submerging oil workshops, too.
2. Advantage
1. There is less than 6% oil in the cake;
2. The thickness of cake can be adjusted when machine stops running;
3. Only needs 10-20 square meters workshop for the oil pressing .
4. The surface of the oil machine is made of chrome plated stainless steel.
5. High efficiency, energy and labor saving, easy operation, simple maintenance.
1. There is less than 6% oil in the cake;
2. The thickness of cake can be adjusted when machine stops running;
3. Only needs 10-20 square meters workshop for the oil pressing .
4. The surface of the oil machine is made of chrome plated stainless steel.
5. High efficiency, energy and labor saving, easy operation, simple maintenance.
working principle
When the oil press is running, the processed oil enters the press chamber from the hopper. By pressing the spiral to make the material embryo continuously pushed in, press. Because the material embryo is in motion in the press chamber of the oil press, under the condition of high pressure in the press chamber, there is a great friction resistance between the material embryo and the press screw, and between the material embryo and the press chamber so that the friction between the material embryo and the micro material can be generated resulting in relative motion.On the other hand, because the root garden of the squeeze screw diameter is gradually thickening, pitch is gradually reduced, so when the squeeze screw rotation, thread hard material embryo can advance forward, and can turn outward, at the same time close to the squeeze screw thread surface material layer also with the squeeze shaft rotation. In this way, each particle of the material embryo in the press chamber does not move in the same direction with the same velocity but there is also arelative motion between the particles.Squeezed oil produced by friction heat and to satisfy the operation on calories, helps to material in the embryo protein denaturation, destroyed the colloid, increased the plastic, but also reduces some oil viscosity easy exhalation, thus increasing the spiral oil press, to squeeze out the oil from material, and article from row gap and the discharge gap flow out.
|
model
|
85
|
68
|
|
Screw diameter
|
100mm
|
85
|
|
Screw speed
|
37r/min
|
20r/min
|
|
Motor power
|
7.5kw
|
5.5kw
|
|
Voltage
|
380v
|
380V
|
|
Vacuum pump
|
1.1kw
|
1.1kw
|
|
Heating power
|
3kw
|
2kw
|
|
Capacity
|
150-230kg/h
|
50kg/h
|
|
Weight
|
500kg
|
130kg
|
|
Size
|
1300*680*1500
|
850*350*1050
|
Processing materials
Automatic oil press is suitable for rapeseed, peanut, soybean, canopy, rapeseed, sesame, tea seed, sesame, olive, walnut meat, corn germ, rice bran, tea seed, safflower, seabuckthorn seed, neem seed, rubber seed, Chinese prickly ash seed, tomato seed, -, grape seed, flax seed, evening primrose, chilli seed, castor, citrus seeds, cocoa, coffee beans, basil, almond, peach kernel , rose fruit and other plant oils.
