Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YIHUA
-
Model Number:
-
CCFJ
-
Speed:
-
1500/1800rpm
-
Standby Power:
-
41kva/37.5kw
-
Color:
-
Optional
-
Engine:
-
Cu-mm-ins
-
Engine Model:
-
4BTA3.9-GM47
-
Optional Engine:
-
Deutz, Weichai,Yuchai
-
Alternator:
-
Marathon
-
Optional Alternator:
-
Stamford, Leroy-somer , YIHUA TFW2, Weifang
-
Controller:
-
Smartgen, Deepsea, ComAp, Datakom, Harsen, etc.
-
Insulation Class&Protection Class:
-
Class H;IP21-23,IP44 for option
-
Certificate:
-
ISO9001, CE, ZY, CCS
Quick Details
-
Rated Voltage:
-
110/220V,, 440V, 480V, etc.
-
Rated Current:
-
voltage and frequency
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YIHUA
-
Model Number:
-
CCFJ
-
Speed:
-
1500/1800rpm
-
Standby Power:
-
41kva/37.5kw
-
Color:
-
Optional
-
Engine:
-
Cu-mm-ins
-
Engine Model:
-
4BTA3.9-GM47
-
Optional Engine:
-
Deutz, Weichai,Yuchai
-
Alternator:
-
Marathon
-
Optional Alternator:
-
Stamford, Leroy-somer , YIHUA TFW2, Weifang
-
Controller:
-
Smartgen, Deepsea, ComAp, Datakom, Harsen, etc.
-
Insulation Class&Protection Class:
-
Class H;IP21-23,IP44 for option
-
Certificate:
-
ISO9001, CE, ZY, CCS
Open Type_

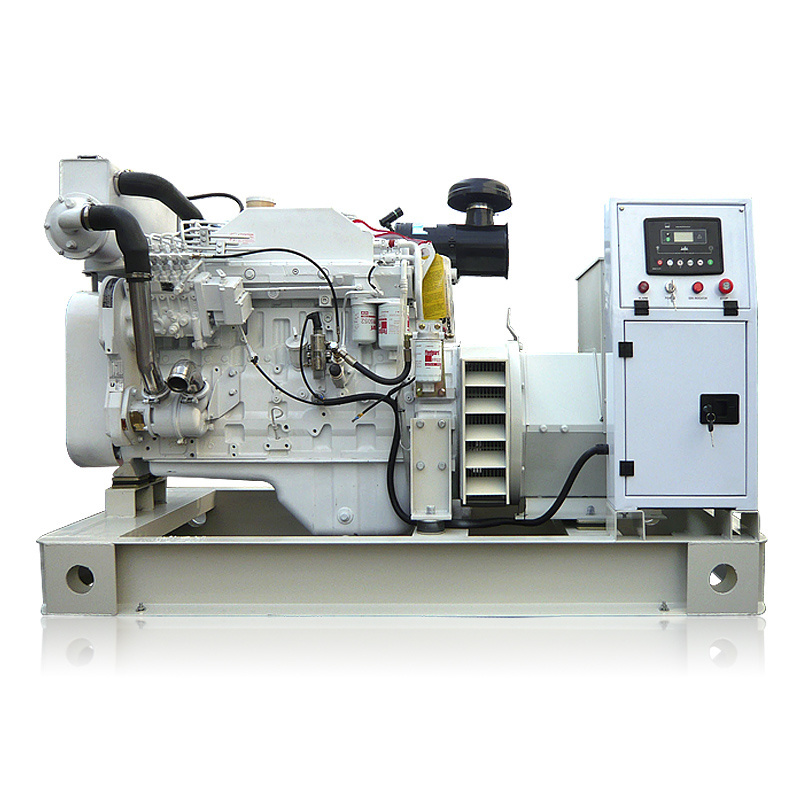

Three Phase Cum-mins 37.5kva/30kw CCFJ Open Type Marine Used Diesel Generator with CCS Certified
| Genset Type | Open Type |
| Voltage | 110/220V, 220/380V,230/400V, 440V, 480V, etc. |
| Electric System | 24V/12V |
| Frequency | 50HZ/60HZ |
| Rated Speed | 1500/1800rpm |
| Type | single phase or three phase,4wire connection |
| Cooling System | Water Cooled |
| Fuel Tank | at least 8 hours running time for full load |
| Insulation Class | Class H/F |
| Protection Class | IP21-23 |
| Wave Distort | <10% |
| Frequency at Stable State | <0.5% |
| Frequency Deviation at Instantaneous State | ≤+10% |
| Frequency Return Time | ≤3s |
| Voltage deviation at stable state | ≤±1% |
| Voltage deviation at instantaneous state | ≤+20% |
| Voltage return time | ≤4s |
| Voltage modulation | ≤0.3% |
| Other | Open/Silent/weather proof/trailer type for optional with silencer,manual and tools |
