Quick Details
-
Brand Name:
-
HUAZHENG
-
Model Number:
-
HZCR-5000
-
Product type:
-
Energy and Power Quality Analyzer
-
Frequency:
-
40Hz~70Hz.
-
Harmonic Order:
-
0~50.
-
Number of Transient records:
-
150 sets.
-
Working temperature and humidity:
-
-10°C~40°C; below 80%Rh.
-
Storage temperature and humidity:
-
-10°C~60°C; below 70%Rh.
-
Capacity of snapshots:
-
60.
-
Certificate:
-
ISO
-
Sales Service:
-
Yes
Quick Details
-
Warranty:
-
1 years, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAZHENG
-
Model Number:
-
HZCR-5000
-
Product type:
-
Energy and Power Quality Analyzer
-
Frequency:
-
40Hz~70Hz.
-
Harmonic Order:
-
0~50.
-
Number of Transient records:
-
150 sets.
-
Working temperature and humidity:
-
-10°C~40°C; below 80%Rh.
-
Storage temperature and humidity:
-
-10°C~60°C; below 70%Rh.
-
Capacity of snapshots:
-
60.
-
Certificate:
-
ISO
-
Sales Service:
-
Yes

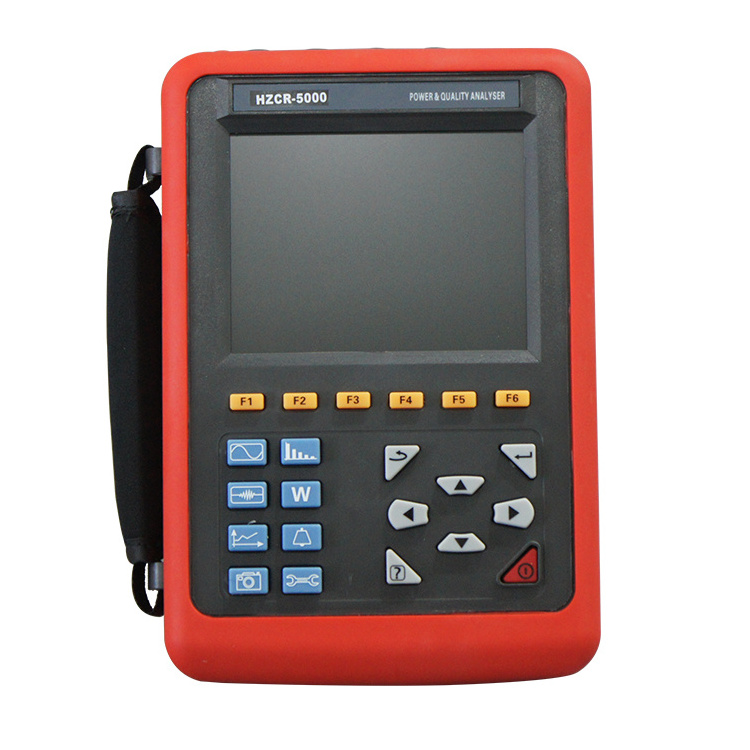

three phase electrical safety comprehensive 3 Phase Power quality Analyzer
Product Description
|
Base condition and working condition
|
|||
|
Influence factor
|
Test item
|
Base condition
|
Working condition
|
|
Environment temperature
|
All parameters
|
(23±2)°C
|
-10°C~ 40°C
|
|
Relative humidity
|
All parameters
|
40%~ 60%
|
<80%
|
|
Phase-to-neutral voltage
|
All parameters
|
(100±1%)V
|
1.0V~ 1000V
|
|
Phase-to-phase voltage
|
True RMS phase-to-phase voltage
|
(200±1%)V
|
1.0V~ 2000V
|
|
Current
|
True RMS current
|
(5±1%)A
|
10mA~ 1000A
|
|
Network frequency
|
All parameters
|
50Hz±0.1Hz
|
40Hz~ 70Hz
|
|
Phase shift
|
Active power and active energy
|
Cosφ=1
|
Cosφ: 0.2~ 1.0
|
|
Reactive power and reactive energy
|
Sinφ=1
|
Sinφ: 0.2~ 1.0
|
|
|
Harmonic
|
All parameters
|
<0.1%
|
0.0%~ 100%
|
|
Voltage unbalance
|
All parameters
|
<10%
|
0.0%~ 100%
|
|
Working voltage of device
|
All parameters
|
DC9.8V±0.1V
|
DC9.5V~ 10.5V
|
|
External electric field,
magnetic field |
All parameters
|
Should be avoided
|
|
|
Test position
|
Measured related parameters of current
|
Tested wire at the center of clamp.
|
|
