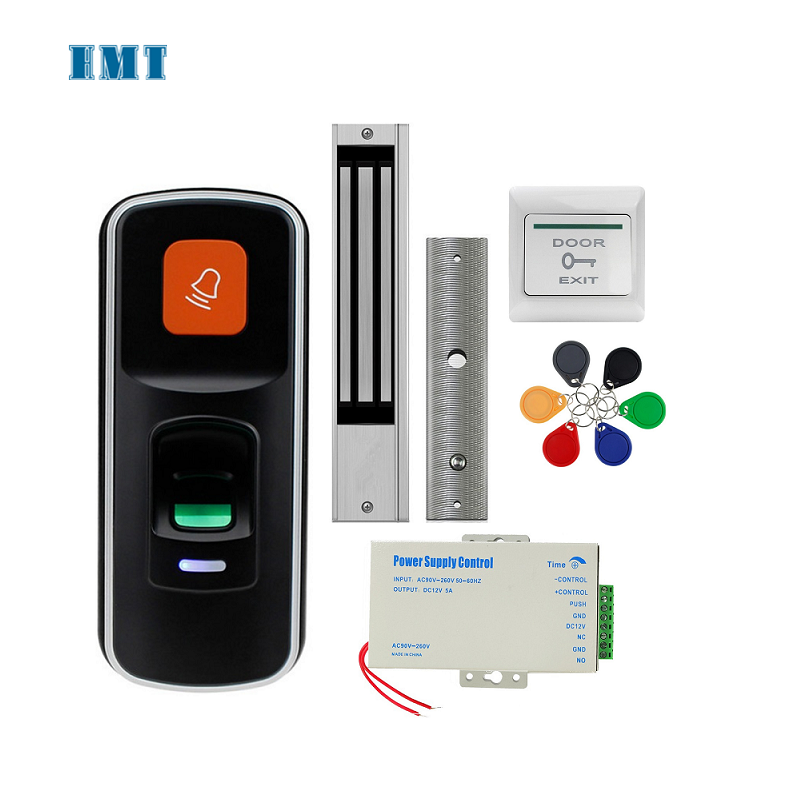

RFID Door Access Control System Kit Set 125KHz Fingerprint Biometric Electric Magnetic Electronic Locks DC12V Power Supply

RFID Door Access Control System Kit Set 125KHz Fingerprint Biometric Electric Magnetic Electronic Locks DC12V Power Supply

FOB Reference Price: Get Latest Price

≥1 Sets

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HMT

Model Number:: HMT-FS66SK

Type:: Keypad

Name:: Fingerprint Access Control System Kit

Fingerprint Capacity:: 1000

Card Capacity:: 1000

Card Type:: EM

Access Ways:: RFID Cards, Password

Work Voltage:: DC 12

Wiring Connections:: Electric lock, Exit Button,DoorBell

Usage:: Office, Home , School, Factory

Size:: 155*65*28mm

Quick Details

Special Features:: Waterproof / Weatherproof

Customized support:: OEM, ODM, Customized logo

Place of Origin:: Guangdong, China

Brand Name:: HMT

Model Number:: HMT-FS66SK

Type:: Keypad

Name:: Fingerprint Access Control System Kit

Fingerprint Capacity:: 1000

Card Capacity:: 1000

Card Type:: EM

Access Ways:: RFID Cards, Password

Work Voltage:: DC 12

Wiring Connections:: Electric lock, Exit Button,DoorBell

Usage:: Office, Home , School, Factory

Size:: 155*65*28mm

Product Description

RFID Door Access Control System Kit Set 125KHz Fingerprint Biometric Electric Magnetic Electronic Locks DC12V Power Supply

Features: 1. Read 125KHz EM / 13.56MHz Mifare (Factory default: EM 125KHz)

2. Fingerprint standalone without keypad 3. Contains card reader mode. 4. Supports different access ways: Entry by fingerprint + Card or Entry by multi cards 5. Support master added a card and deleted card 6. User capacity: 1000 users

7. Fingerprint capacity: 1000 users

Specification

Model number: HMT-FS66 Fingerprint capacity: 1,000pcs Card capacity: 1,000pcs Working frequency: 125Khz Recognizing Style: Fingerprint or Card Door bell: Yes Wiegand Interface: Wiegand26 Supply Voltage: 12VDC Size: 155*65*28mm

Model Number: HMT-M280 Material: Zinc Alloy Product size: 250Lx46Wx25H(mm) Power supply voltage: 12V, or 24V for optional Holding Force: 600lbs Features: LED indicate (red indicate the door is unlock, door is lock there is no light) Suitable For: Wooden door , Glass door ,Metal door , Fireproof door Surface Temperature: ≤+20℃ Suitable Temperature: 0~+55°C Operating Humidity: 0~90%(non-condensing)

Model number: HMT-PS5S size: 130*68*38mm ripple voltage: Up ≤ 50mV Input voltage: AC 220V Input Frequency: 50Hz Output voltage: DC12V Output current: 5A

Model number: HMT-KP01 Product Name: Touch Screen LED Door Exit Button Switch Material: Fireproof PVC Material Faceplate Product size: 86Lx86Wx20H(mm) Power supply voltage: 12VDC Contact output: NO/NC/COM /LED Maximum current: 3A / 36DC Endurance test: 1000000 tested Installation: hollow door frame

Model number: HMT-K3E Color: Blue,Yellow,Red,Orange,Black,Grey,White or customized Function: Build RFID chip inside, read/write Memory: 64bits or depends on different chip Operating Frequency: 125khz,13.56MHz,or according to the chip Chip: TK4100 or others Resistance: IP67 Certificate:ISO,ROHS,FCC,CE Data Transmission Speed: 106 Kboud Read Distance: 1-30mm Read/Write time: 1-3(ms) Read Times: >100 000 Data Retention: >10 years Optional Technology: 1) Silk-screen Printing Logo/image/graphic... 2) Laser engraving serial numbers 3) Chip encoding

Wire Diagram
