- Product Details
- {{item.text}}
Quick Details
-
Application:
-
outdoor,window,landscape lighting,amusement,architectural,indoor
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Color Rendering Index(Ra):
-
90
-
Product Weight（kg）:
-
2
-
Input Voltage(V):
-
dc 12v 24v ac 220v 240v meanwell driver
-
Lamp Luminous Flux(lm):
-
80 lumens /w
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyeled
-
Model Number:
-
YY-XQ..W-4057
-
Product Name:
-
low voltage led wall washer
-
Size:
-
custom Length 300mm - 1500 mm W40mm H57mm
-
wattage:
-
9w,10w,12w,15w,18w,20w,24w,30w,36w,48w,50w,54w,14x3w
-
Light source:
-
smd/cob 5050,2835,5630,3528,3030 chip
-
single color:
-
white,green,pink,orange,yellow,amber
-
multi color:
-
3in1 3w rgb,4 in 1 rgbw,5in1 rgbwa
-
Installation:
-
floor,wall mounted
-
dmx 512 signal:
-
addressable n programmable with dmx decoder
-
Control:
-
dmx 512 controller control or wifi/ wireless remote control
Quick Details
-
Color Temperature(CCT):
-
RGB RGBW
-
Warranty(Year):
-
2 years,3 years,5years
-
Lamp Body Material:
-
Aluminum housing n Tempered Glass diffuser
-
Application:
-
outdoor,window,landscape lighting,amusement,architectural,indoor
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Color Rendering Index(Ra):
-
90
-
Product Weight（kg）:
-
2
-
Input Voltage(V):
-
dc 12v 24v ac 220v 240v meanwell driver
-
Lamp Luminous Flux(lm):
-
80 lumens /w
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-25 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuanyeled
-
Model Number:
-
YY-XQ..W-4057
-
Product Name:
-
low voltage led wall washer
-
Size:
-
custom Length 300mm - 1500 mm W40mm H57mm
-
wattage:
-
9w,10w,12w,15w,18w,20w,24w,30w,36w,48w,50w,54w,14x3w
-
Light source:
-
smd/cob 5050,2835,5630,3528,3030 chip
-
single color:
-
white,green,pink,orange,yellow,amber
-
multi color:
-
3in1 3w rgb,4 in 1 rgbw,5in1 rgbwa
-
Installation:
-
floor,wall mounted
-
dmx 512 signal:
-
addressable n programmable with dmx decoder
-
Control:
-
dmx 512 controller control or wifi/ wireless remote control

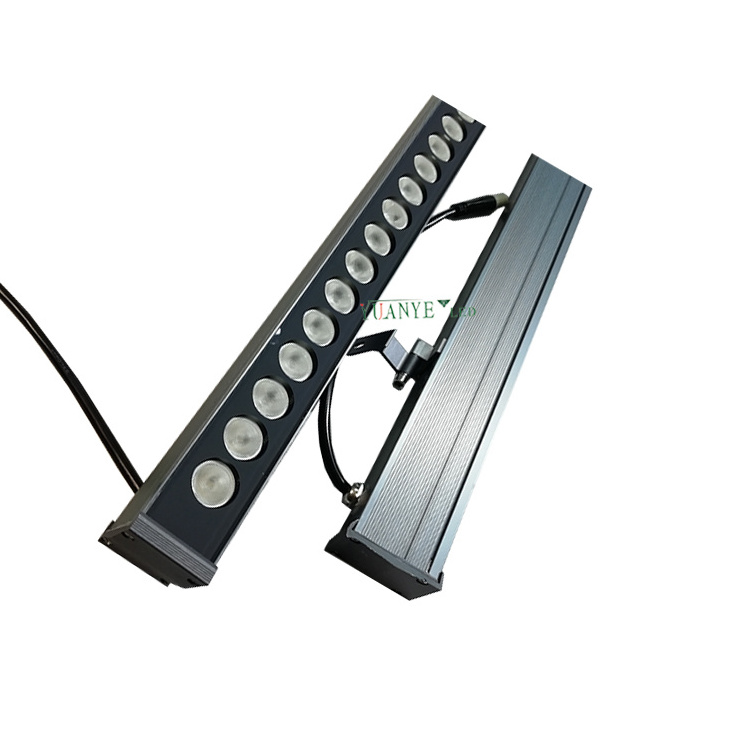

LED outdoor wall washer light
This is 100% factory owned private mold with 6063 Aluminum Housing plus Tempered Glass Cover,beautiful appearance and reasonable waterproof structure,as well as heat-resisting and impact resistance.
This wall washer is suitable for outdoor, indoor use.
The waterproof is IP65 IP66 IP67 and IP68.
• Multiple Power Options - custom watt 1w to 50w
• Input Voltage Options – AC100-240V, AC/DC12V,24V,36V,48V (model with W40*H57mm) ;
AC/D
C12V,24V,36V,48V
(model with W40*H33mm)
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT,RGBWCCT
• Beam angle Option -
5°,8°,
10°,
15°,30°,45°,60°,90°,
120°,
10
o
x15
o
,10
o
x35
o
,10
o
x45
o
,10
o
x50
o
,10
o
x60
o
,30
o
x65
o
• Eco-friendly, UV-Resistant, waterproof IP20,IP65,IP67 and IP68.
• 2 models for options, same width 40mm, custom length 1200mm maximum, hight 57mm or 33mm.
|
Name
|
Value
|
|
|
||
|
Reference size and watt
(YY
-XQ..W-4057 and YY-XQ..W-4033 suitable)
|
L100mm,2w,3w,4w,5w
L150mm,4w,5w, 6w,7w
L200mm,6w,7w,8w,9w,10w
L250mm,8w,9w,10w,12w
L300mm,12w,14w,15w
L350mm,12w,14w,15w,16w,17w
L400mm,16w,17w,18w,19w,20w
L450mm,18w,19w,20w,21w,22w
L500mm,18w,19w,20w,21w,22w,23w,24w,25w
L550mm,18w,20w,21w,22w,23w,24w,25w,26w,27w L600mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w L650mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w L700mm,18w,20w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w L750mm,18w,20w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w,36w,37w L800mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,39w,40w L850mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,40w,42w L900mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,37w,40w,42w,45w L950mm, 18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,40w,42w,45w,47w L1000mm, 18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w L1200mm ,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w |
|
|
||
|
Width n Height
|
YY-XQ..W-4057, width 40mm, height 57mm
YY-XQ..W-4033, width 40mm, height 33mm
|
|
|
||
|
Material
|
Aluminum + Tempered Glass
|
|
|
||
|
Light Source
|
Brand SMD with lifespan 50000 Hours
|
|
|
||
|
CCT
|
2200K,2700K,3000K,4000K,4500K,5000K, 6000K,6500K, RED,BLUE, GREEN,YELLOW,AMBER
RGB, RGBW, RGBY, RGBCCT,RGBWCCT
(CCT: Correlated Color Temperature)
|
|
|
||
|
Waterproof Rate
|
IP20 IP65 IP67 IP68
|
|
|
||
|
Input Voltage
|
YY-XQ..W-4057, AC100-240V, AC/DC12V,24V,36V,48V
YY-XQ..W-4033, AC/DC12V,24V,36V,48V |
|
|
||
|
control/dimming
|
ON/OFF, DMX512,DALI,0/1-10V, TRIAC,PWM,ZIGBEE...
|
|
|
||
|
Certificate
|
CE , RoHS
|
|
|
||
|
Package and Logo
|
Standard Export Carton with Individual pack / PE layer ;
Customized packing and Logo is acceptable.
|
|
|
||
underwater, wet location, coastal regions...
