Water Vapor Permeation Unit for woven and nonwoven testing

Water Vapor Permeation Unit for woven and nonwoven testing

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Labthink

Model Number:: C330H Water Vapor Transmission Rate

Usage:: Moisture Transmission Rate Analyzer

Model:: C330H Water Vapor Transmission Rate

Certificate:: ISO CE

Standard:: ASTM ISO EN JS

Quick Details

Warranty:: 12 months

Power:: Electronic

Customized support:: Test Item Customization

Place of Origin:: Shandong, China

Brand Name:: Labthink

Model Number:: C330H Water Vapor Transmission Rate

Usage:: Moisture Transmission Rate Analyzer

Model:: C330H Water Vapor Transmission Rate

Certificate:: ISO CE

Standard:: ASTM ISO EN JS

Product Description

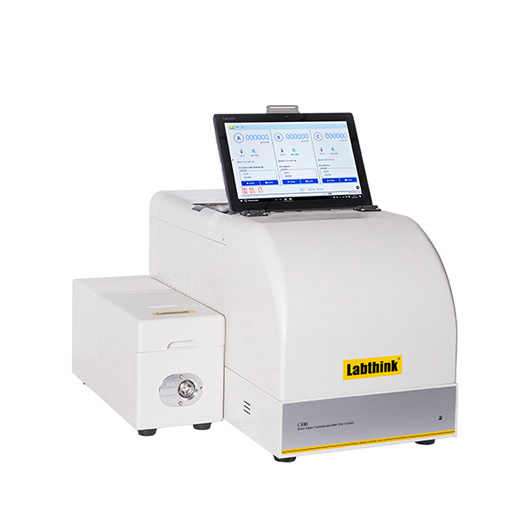

C330H Water Vapor Transmission Rate Test System, is designed and manufactured based on the electrolytic sensor method and conforms to the requirements of ISO 15106-3. This instrument can be used to measure the water vapor transmission rate of barrier materials with high and medium moisture barrier properties with a wide testing range and high testing efficiency. The instrument is featured with patented design of integrated block consisting of 3 test cells. Equipped with high precision sensors and professional computer-controlled system, the instrument can regulate and control the temperature, humidity and flow rate precisely, guaranteeing the testing sensitivity and repeatability of test results. C330H is applicable to determination of water vapor permeability of plastic films, sheeting, paper, packages and other relative packaging materials in food, pharmaceutical, medical apparatus, consumer goods, photovoltaic and electronic industries, etc.

Features

Labthink electrolytic sensor for water vapor analysis with higher sensitivity.

Patented integrated test block with advanced hydrodynamic and thermodynamic design

Temperature and humidity are accurately and automatically controlled throughout the test, eliminating the need for operator intervention or separate data-logging devices.

Temperature and humidity sensor for independent monitoring of test cells.

Standards

ISO 15106-3, ASTM F3299, GB/T 21529, YBB 00092003-2015

Applications

Films, Sheeting
Paper and Paper Board
Packages, Package Caps
LCD Monitor Films
Solar Back-Sheets
Plastic Packages for Drugs and Health Care Products
Plastic Pipes
Blister Packs
Aseptic Wound Protection Films and Medical Plasters
Battery Plastic Shells

	Parameters
Test Range	g/(m2·day) (Standard)	0.005 ~ 50
		g/(100in2·day)	0.0003 ~ 3.223
		g/(pkg·day)(Package)	0.000025 ~ 0.25
Resolution	g/(m2·day)	0.001
Repeatability	g/(m2·day)	0.005 or 2%
Test Temperature	°C	10 ~ 55 ±0.2
Test Humidity	RH	5% ~ 90% ±1%, 100%
Additional Functions	Package Test (3L Max.)	Optional
		DataShieldTM Note2	Optional
		Computer System required by GMP	Optional
		CFR21 Part11	Optional

	Specifications
Test Chamber	3 test chambers
Specimen Size	108mm X 108mm
Specimen Thickness	≤3mm
Standard Test Area	50cm2
Carrier Gas	99.999% High-purity Nitrogen (outside of supply scope)
Carrier Gas Pressure	≥0.28MPa / 40.6psi
Port Size	1/8 inch metal tubing
