Quick Details
-
Voltage:
-
On your request
-
Dimension(L*W*H):
-
6100X3850X4235 mm
-
Weight:
-
8.8 t
-
Warranty:
-
one year, not including wearing parts
-
Product name:
-

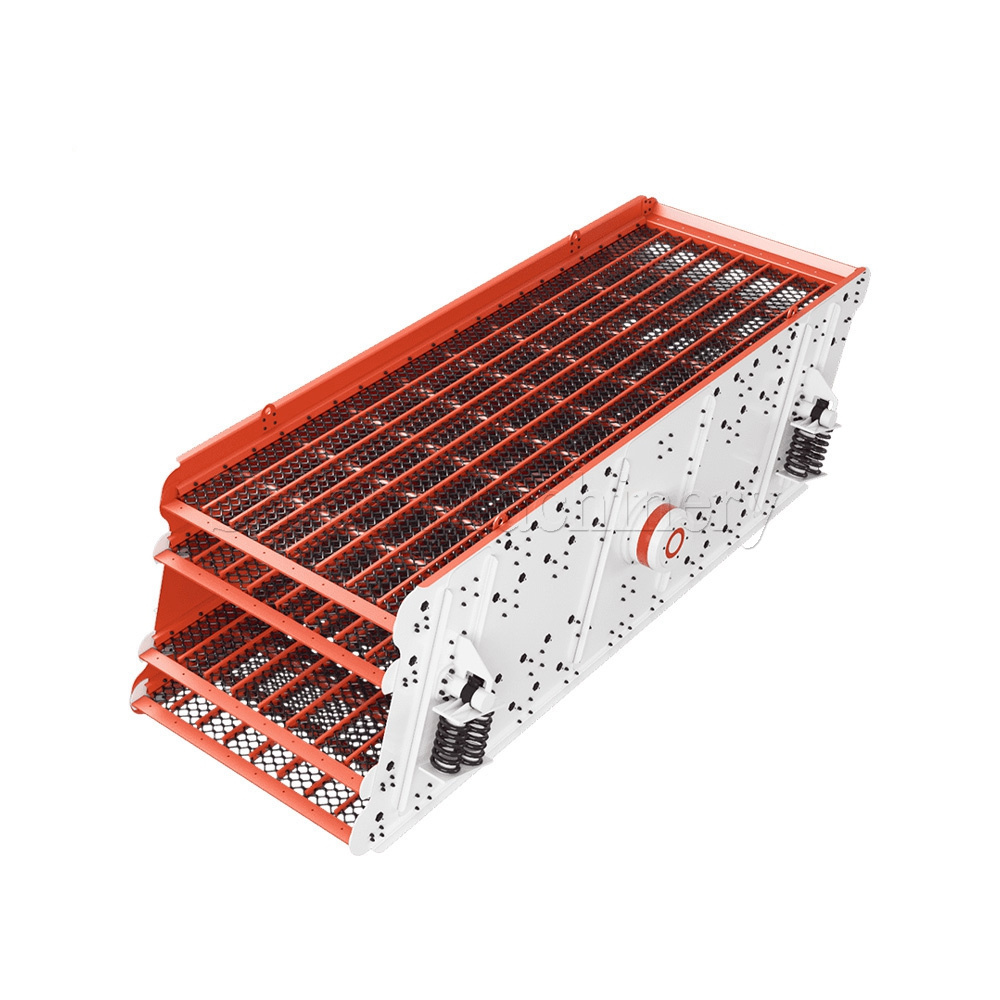

Sand Screening Plant Vibrating Sieve Machine 3YZS2160 Vibrating Screen
-
Model:
-
3YZK2160
-
Layer(s):
-
3 Layers
-
Capacity:
-
81-720tph
-
Max feeding size:
-
400mm
-
Motor Power:
-
30kw
-
Feature:
-
High Screening Efficiency
-
Installation:
-
Under Technical Guidance
-
Mesh size:
-
3-100mm
-
Color:
-
Customers' Request
-
Local Service Location:
-
None
-
Certification:
-
ISO, CE
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHIBO
-
Voltage:
-
On your request
-
Dimension(L*W*H):
-
6100X3850X4235 mm
-
Weight:
-
8.8 t
-
Warranty:
-
one year, not including wearing parts
-
Product name:
-
Sand Screening Plant Vibrating Sieve Machine 3YZS2160 Vibrating Screen
-
Model:
-
3YZK2160
-
Layer(s):
-
3 Layers
-
Capacity:
-
81-720tph
-
Max feeding size:
-
400mm
-
Motor Power:
-
30kw
-
Feature:
-
High Screening Efficiency
-
Installation:
-
Under Technical Guidance
-
Mesh size:
-
3-100mm
-
Color:
-
Customers' Request
-
Local Service Location:
-
None
-
Certification:
-
ISO, CE
Vibrating screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry. It can be featured with 2 layers, 3 layers, 4 layers . It is used to sort and classify the materials accoding to the particle size by its circular vibration.
Range of application:
Quarry, Building material, Transportation, Energy, Chemistry, etc.
Applied Material:
Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Iron ore, Limestone, Diabase.
Advantages of Vibrating Screen Machine
2.high efficiency, large capacity, the moisture content of the material requirements low.
3.With eccentric block as exciting force, strong exciting force.
| Model | Screen Surface Specification(mm) | Layers | Feeding Size(mm) | Sieve Pore Size(mm) | Capacity(t/h) | Power(kw) | Vibrating Frequency(r/min) | Stroke(mm) |
| 2YZK1237 | 3700×1200 | 2 | ≤400 | 3-50 | 30-100 | 5.5 | 970 | 5-9 |
| 3YZK1237 | 3700×1200 | 3 | ≤400 | 3-50 | 30-100 | 7.5 | 970 | 5-9 |
| 2YZK1548 | 4800×1500 | 2 | ≤400 | 3-100 | 30-275 | 15 | 970 | 5-9 |
| 3YZK1548 | 4800×1500 | 3 | ≤400 | 3-100 | 30-275 | 15 | 970 | 5-9 |
| 2YZK1848 | 4800×1800 | 2 | ≤400 | 3-100 | 56-330 | 18.5 | 970 | 5-9 |
| 3YZK1848 | 4800×1800 | 3 | ≤400 | 3-100 | 56-330 | 18.5 | 970 | 5-9 |
| 4YZK1848 | 4800×1800 | 4 | ≤400 | 3-80 | 56-330 | 22 | 970 | 5-9 |
| 2YZK1860 | 6000×1800 | 2 | ≤400 | 3-100 | 65-586 | 18.5 | 970 | 5-9 |
| 3YZK1860 | 6000×1800 | 3 | ≤400 | 3-100 | 65-586 | 22 | 970 | 5-9 |
| 4YZK1860 | 6000×1800 | 4 | ≤400 | 3-100 | 65-586 | 30 | 980 | 5-9 |
| 2YZK2160 | 6000×2100 | 2 | ≤400 | 3-100 | 81-720 | 22 | 980 | 5-9 |
| 3YZK2160 | 6000×2100 | 3 | ≤400 | 3-100 | 81-720 | 30 | 970 | 5-9 |
| 4YZK2160 | 6000×2100 | 4 | ≤400 | 3-100 | 81-720 | 30 | 980 | 5-9 |
| 2YZK2460 | 6000×2400 | 2 | ≤400 | 3-150 | 100-810 | 22 | 970 | 5-9 |
| 3YZK2460 | 6000×2400 | 3 | ≤400 | 3-150 | 100-810 | 30 | 980 | 5-9 |
| 4YZK2460 | 6000×2400 | 4 | ≤400 | 3-150 | 150-850 | 37 | 980 | 5-9 |
| 2YZK2870 | 7000X2800 | 2 | ≤400 | 5-100 | 120-680 | 22x2 | 750 | 8 |
| 3YZK2870 | 7000X2800 | 3 | ≤400 | 5-100 | 180-720 | 22x2 | 750 | 8 |
| 2YZK3070 | 7000X3000 | 2 | ≤400 | 5-100 | 200-700 | 37 | 750 | 8 |
| 3YZK3070 | 7000X3000 | 3 | ≤400 | 5-100 | 230-800 | 45 | 750 | 8 |
