Quick Details
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WAYHANG/GATEOPEN
-
Model Number:
-
WH-120 PRO
-

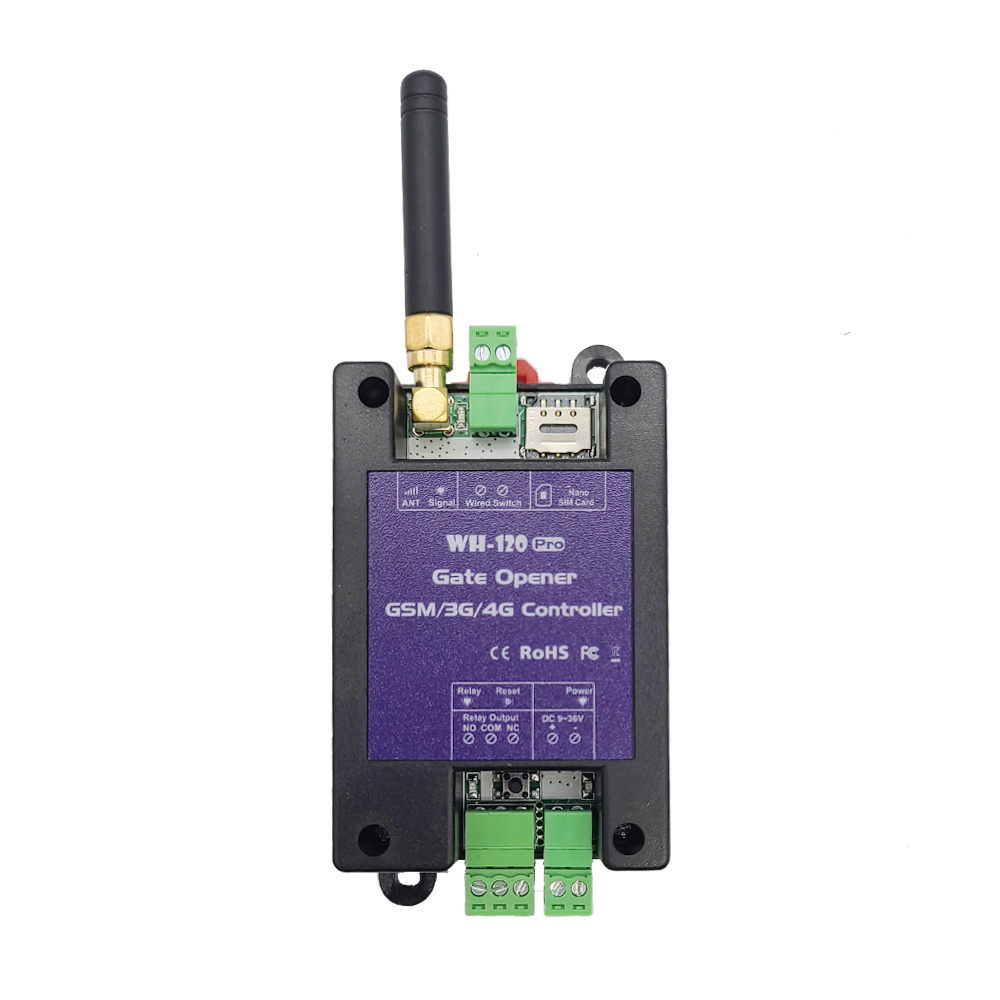

Product Name:
-
GSM Gate Opener
-
Usage:
-
Garage Shutter Door
-
Power supply:
-
DC 9V~36V/1A
-
GSM:
-
850/900/1800/1900MHz
-
4G(Optional):
-
C/E/SA
-
Communication protocol:
-
GSM PHASE 2/2+ (include data service)
-
Related Voltage of the Output Relay:
-
3A/240V AC
-
SIM Card:
-
Nano type, 3V
-
Antenna:
-
50 Ω SMA
-
Dimension and Weight:
-
96.5*50*31.5mm/88g
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
2G, 4G
-
Application:
-
Office Building
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WAYHANG/GATEOPEN
-
Model Number:
-
WH-120 PRO
-
Product Name:
-
GSM Gate Opener
-
Usage:
-
Garage Shutter Door
-
Power supply:
-
DC 9V~36V/1A
-
GSM:
-
850/900/1800/1900MHz
-
4G(Optional):
-
C/E/SA
-
Communication protocol:
-
GSM PHASE 2/2+ (include data service)
-
Related Voltage of the Output Relay:
-
3A/240V AC
-
SIM Card:
-
Nano type, 3V
-
Antenna:
-
50 Ω SMA
-
Dimension and Weight:
-
96.5*50*31.5mm/88g
Product Description
Compared with WH-120:
1.The appearance has been improved, the back is easy to fix and dissipate heat.
2.The circuit has been optimized to prevent the problem of sometimes not being powered on
3.The functions of batch checking and deleting authorized numbers have been added
4.The Relay delay time has been added to 999 seconds
1.The appearance has been improved, the back is easy to fix and dissipate heat.
2.The circuit has been optimized to prevent the problem of sometimes not being powered on
3.The functions of batch checking and deleting authorized numbers have been added
4.The Relay delay time has been added to 999 seconds
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
Others
|
|
Application
|
Office Building
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
WAYHANG/GATEOPEN
|
|
Model Number
|
WH-120
|
|
Product Name
|
GSM Gate Opener
|
|
Usage
|
Garage Shutter Door
|
|
Power supply
|
DC 9V~36V/1A
|
|
GSM
|
850/900/1800/1900MHz
|
|
4G(Optional)
|
C:GSM:900/1800,LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20 SA:GSM: 850/900/1800/1900MHz LTE-FDD B1/B3/B5/B7/B8/B28/B66 |
|
Communication protocol
|
GSM PHASE 2/2+ (include data service)
|
|
Related Voltage of the Output Relay
|
3A/240V AC
|
|
SIM Card
|
Nano type, 3V
|
|
Antenna
|
50 Ω SMA
|
|
Wired Switch
|
Support
|
|
Working temperature
|
-10℃～+60℃
|
|
Storage temperature
|
-20℃～+60℃
|
|
Relative humidity
|
10-90%, No condensation
|
|
Dimension
|
96.5*50*31.5mm
|
|
Weight
|
88g
|
