Quick Details
-
Brand Name:
-
Boerstn
-
Model Number:
-
XL-21
-
G.W.:
-
121kgs
-
product dimension:
-
140 x 73 x 46 cm
-
wooden case size:
-
160 x 79 x 52 cm
-
rated current of main breaker:
-
630A
-
Color:
-
GREY
Quick Details
-
Voltage:
-
12
-
Current:
-
630
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Boerstn
-
Model Number:
-
XL-21
-
G.W.:
-
121kgs
-
product dimension:
-
140 x 73 x 46 cm
-
wooden case size:
-
160 x 79 x 52 cm
-
rated current of main breaker:
-
630A
-
Color:
-
GREY
| model | XL-21 |
| Technical data | main breaker:EZD 630A MCCB,distribution branch 160A, 250A ,30A MCCB ,with digital multi-function meter, CT-Current transformers |
| net weight | 100 kgs |
| G.weight | 121 kgs |
| product dimension | 73 x 140 x 46 cm (W x H x D) |
| Wooden case package size | 79 x 160 x 52 cm |
| rated voltage | 380V AC, 400V AC, 415V AC , 440V AC...... |
| Rated current | 630A |
| Usage | Power distribution |
| Brand | Boerstn |

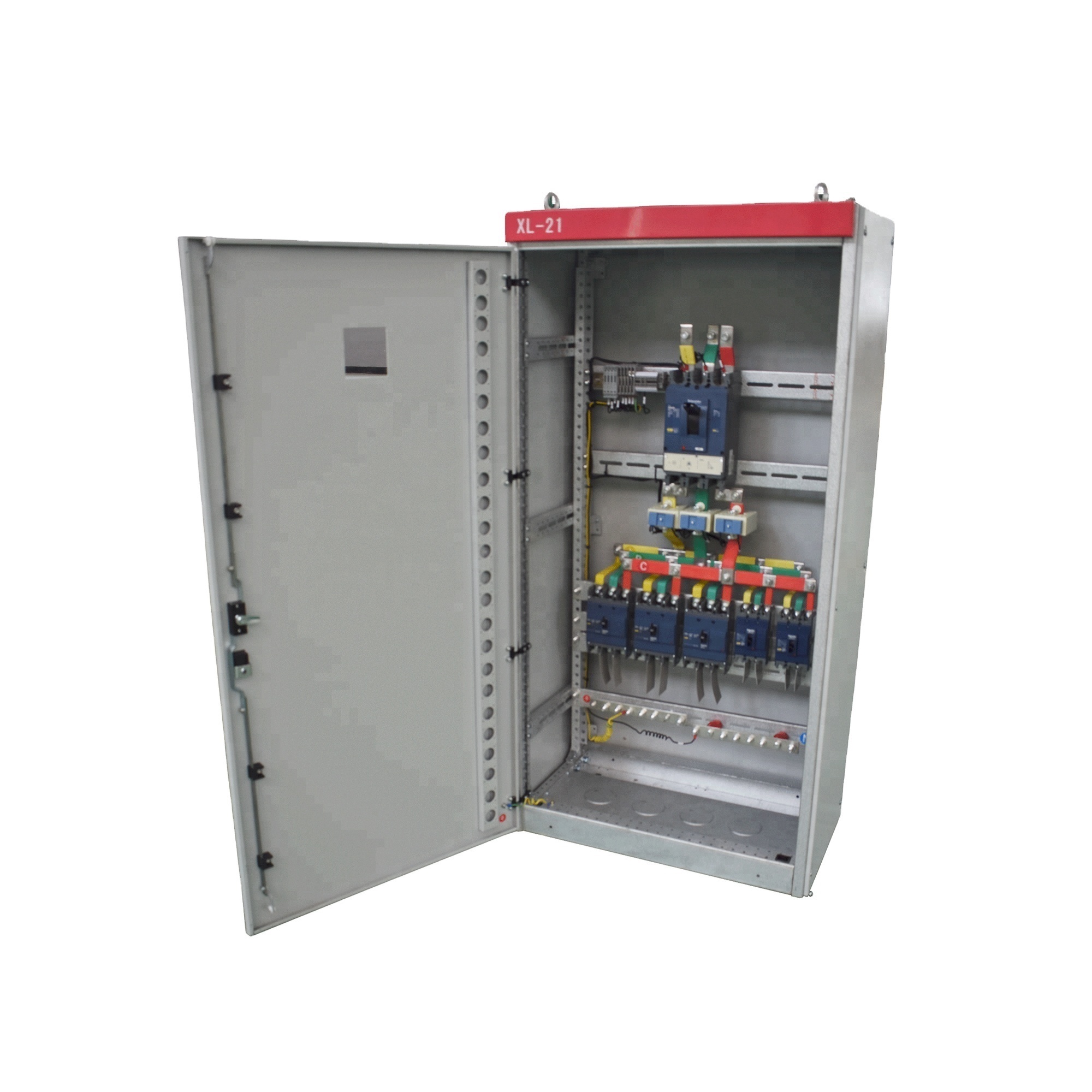

XL-21 Low Voltage Electrical Power Supply and Distribution Switchboard
The new type XL-21 power cabinet is widely used in power plants and industrial and mining enterprises as three phase AC 500V three-phase three wire, three-phase four wire, three-phase five wire power distribution system for power or illumination, indoor wall installation, front panel operation, front panel inspection ; Cabinet is fully enclosed structure, by C a section or 8MF profile assembly. Cabinet inside adopts the new type rotary load isolating switch with load operat ion , front door installed ammeter ,voltmeter and the signal lamp, button, selector switch and other components. The main distribution box adopts self- design of new components, compact structure, beautiful appearance, easy maintenance, a variety of wiring options for users to choose, it is an ideal alternative to the old XL-21 power cabinet.
The switchgear meet the requirements of standard IEC60439 etc .
- Ambient temperature : -5 ℃ ~ + 40 ℃ , and the average temperature within 24h not exceed + 35 ℃ .
- Altitude: not exceed 2000m.
- The ambient air temperature of + 40 ℃ not more than 50%; at lower temperaturescan have a higher relative humidity on (eg: + 20 ℃ at 90%), taking into account the change in temperature allows the generation of a moderate condensation.
- Equipment installation and the vertical gradient should not exceed 5 °
- Equipment should be installed in the absence of severe vibration, shock-free and corrosion-freeplace
| No | Name | Unit | Parameter |
| 1 | Main circuit rated voltage | V | AC: 380 |
| 2 | Main circuit rated voltage | V | AC: 220, 380 |
| 3 | Rated frequency | Hz | 50/60 |
| 4 | Rated insulation voltage | V | 660 |
| 5 | Rated current | A | 800A |
