Quick Details
-
Weight:
-
550kg
-
Warranty:
-
One Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
Good quality paddy rice mini rice harvester 4LZ-1.2
-
Power:
-
9.7/13.2
-
Working width:
-
1200mm
-
Working efficiency:
-
0.16-0.35m2/h
-
Color:
-
Customerized
-
Operating Speed:
-
1.4-3.2km/h
-
Function:
-
Combined rice Harvester
-
Feeding Capacity:
-
1.2kg/s
-
Application:
-
Rice
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sankay
-
Dimension(L*W*H):
-
3200*1100*1300mm
-
Weight:
-
550kg
-
Warranty:
-
One Year
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
Good quality paddy rice mini rice harvester 4LZ-1.2
-
Power:
-
9.7/13.2
-
Working width:
-
1200mm
-
Working efficiency:
-
0.16-0.35m2/h
-
Color:
-
Customerized
-
Operating Speed:
-
1.4-3.2km/h
-
Function:
-
Combined rice Harvester
-
Feeding Capacity:
-
1.2kg/s
-
Application:
-
Rice
|
Unit |
Specification |
||||
|
Model |
/ |
4LZ-1.2 |
|||
|
Type of Structure |
/ |
Self-walking of full feeding type |
|||
|
Matched Engine |
Type |
/ |
Changchai CG14 |
||
|
Rated Power |
KW/HP |
9.7/13.2 |
|||
|
Rated Speed |
r/min |
2400 |
|||
|
Overall dimension of operation (L * W * H) |
mm |
3200*1100*1300 |
|||
|
Weight |
kg |
550 |
|||
|
Working width of cutting platform |
mm |
1200 |
|||
|
Feeding Capacity |
kg/s |
1.2 |
|||
|
Minimum Ground Clearance |
mm |
260 |
|||
|
Efficiency |
hm2/h |
0.16-0.35 |
|||
|
Operating Speed |
Km/h |
1.4-3.2 |
|||
|
Fuel Consumption |
Kg/h m2 |
10.5-13.5 |
|||
|
Breakage Rate |
/ |
≤1.5% |
|||
|
Impurity Rate |
/ |
≤2% |
|||
|
Total Loss Rate |
/ |
≤1.5% |
|||
|
Size of Crawler |
mm |
66*44*320 |
|||
|
Gage of Crawler |
mm |
1100 |
|||
|
Cutter Type |
/ |
reciprocating |
|||
|
Winder |
Type |
/ |
Type of eccentric spring tooth |
||
|
Diameter/Length |
mm |
660/1160 |
|||
|
Number |
piece |
4 |
|||
|
threshing cylinder |
Number |
piece |
1 |
||
|
Type |
/ |
Type of axial pin tooth |
|||
|
Outer Diameter |
mm |
∅ 340*855 |
|||
|
Fan |
Type |
/ |
stationary |
||
|
Diameter |
mm |
∅ 242 |
|||
|
Number |
Piece |
1 |
|||
|
Mode of Receiving Grain |
/ |
Artificial grain receiving |
|||
|
Type of Gear Box |
/ |
Gear -mechanical |
|||

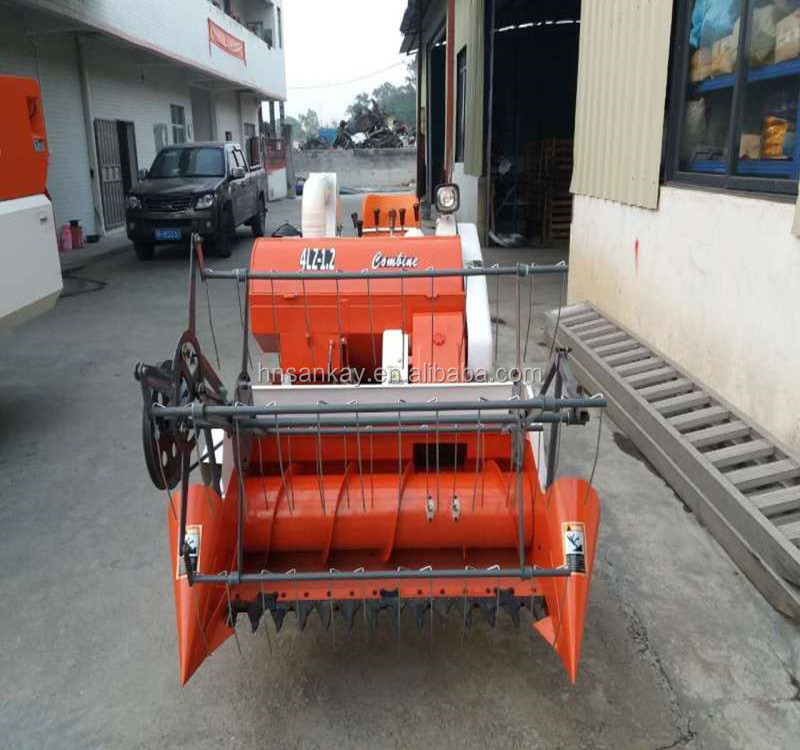

Agricultural Equipment 4LZ-1.2 Crawler New Mini Small Wheat Combine Harvester Machine Price
1. Reasonable design, excellent threshing and selecting functions.
2. Simple structure, flexible operation and easy to control, 1 people with bag for collecting grains.
3. Low power consumption and strong compound threshing ability.
4. Special wheel for paddy field.
5. Stable performance, light in weight, and small volume, and carry convenience.
6. Wide applicability, high efficiency, and short period for recovery of investment
