Quick Details
-
Brand Name:
-
Sance
-
Model Number:
-
0-30M
-
Measurement Dept:
-
0-30M
-
Product name:
-
Water Level Meter
-
Response Time:
-
≤1ms
-
Material:
-
Steel Material
-
Application:
-
Measuring the water level
-
Operating voltage (V):
-
DC=9
-
Repetitive reading (mm):
-
±2.0
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sance
-
Model Number:
-
0-30M
-
Measurement Dept:
-
0-30M
-
Product name:
-
Water Level Meter
-
Response Time:
-
≤1ms
-
Material:
-
Steel Material
-
Application:
-
Measuring the water level
-
Operating voltage (V):
-
DC=9
-
Repetitive reading (mm):
-
±2.0

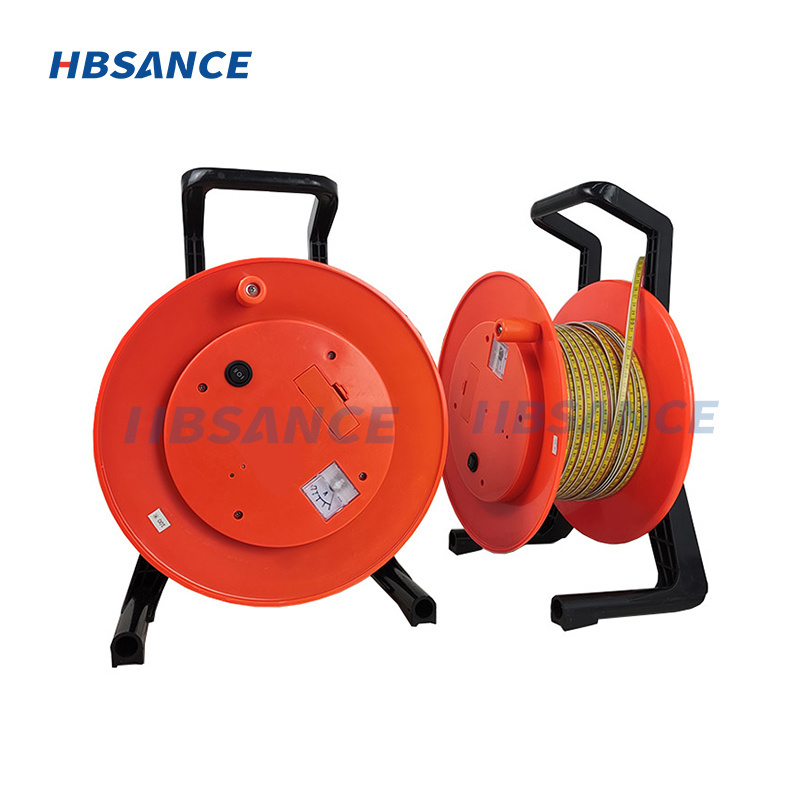

30M Water Level Meter
(Orange
)
Introduction
The steel ruler water level gauge provides the most accurate way to measure the water level, it can be used to measure the water level inside wells, boreholes and the water level pipes, it’s very suitable for the underground water level observation in hydroelectric engineering and manual inspection of the earth and rock dam body saturation line.
The instrument can be used during construction, and also long term engineering safety monitoring, it complies with the earth dam safety monitoring technical specifications.
Specification
|
Model
|
30
|
50
|
100
|
150
|
200
|
300
|
500
|
||||||
|
Measurement dept(m)
|
0~30
|
0~50
|
0~100
|
0~150
|
0~200
|
0~300
|
0~500
|
||||||
|
Minimum reading(mm)
|
1.0
|
|
|
|
|
|
|
||||||
|
Repetitive reading(mm)
|
±2.0
|
|
|
|
|
|
|
||||||
|
Operating voltage (V)
|
DC=9
|
|
|
|
|
|
|
||||||
Notes
A) When the probe touches the water, the sounder beeps, the indicator flashes, then slowly put down the steel ruler cable, in order to find out the sound carefully or the exactly location of the indicate moment, then we can read the depth from this point to the borehole.
B) The reading accuracy is depends on the timely determination of the buzzer and the indicate starting position. The measurement accuracy is depends on the operator's proficiency, so the operator should practices more.
