Quick Details
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-4317
-
Model:
-
HZ-4317
-
Specimen:
-
61.8mm x 125mm
-
Capacity:
-
60KN
-
Back pressure:
-
0~500kPa Digital control and display
-
Pore pressure:
-
(water)-30kPa~600kPa, (air)00~600kPa
-
Confining pressure:
-
0~600kPa Digital control and display
-
Sear speed:
-
0.0016~4mm/min
-
Product name:
-
Dynamic Triaxial Apparatus for soil testing
-
Certificate:
-
CE ISO
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lixian
-
Model Number:
-
HZ-4317
-
Model:
-
HZ-4317
-
Specimen:
-
61.8mm x 125mm
-
Capacity:
-
60KN
-
Back pressure:
-
0~500kPa Digital control and display
-
Pore pressure:
-
(water)-30kPa~600kPa, (air)00~600kPa
-
Confining pressure:
-
0~600kPa Digital control and display
-
Sear speed:
-
0.0016~4mm/min
-
Product name:
-
Dynamic Triaxial Apparatus for soil testing
-
Certificate:
-
CE ISO

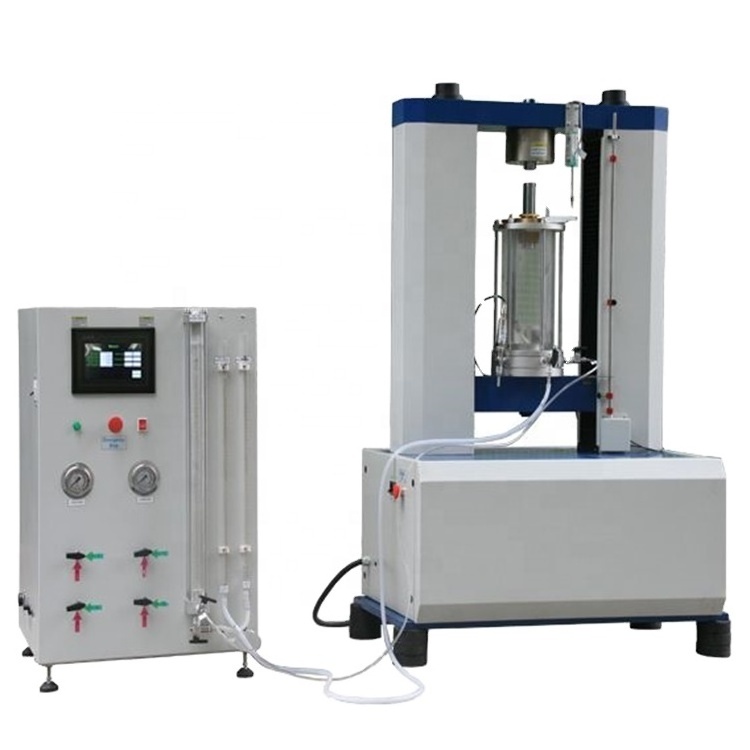

Dynamic Triaxial Apparatus for soil testing
Application:
The Apparatus is used to determine the resisting shear strength of the soil specimen with maximum confining pressure of 2.0MPa and specimen dimension is of Φ61.8x125mm,Φ101x200mm. The apparatus can perform unconsolidated-undrained shear test (UU),consolidated-undrained shear test (CU), and consolidated-drained (CD) shear test. It consists of frame, test control device,pressure chamber and specimen tools etc.
Technical parameters
|
Model |
HZ-4317
Dynamic Triaxial Apparatus
|
|
Specimen |
Φ61.8mm x 125mm |
|
Capacity |
60KN |
|
Confining pressure |
0~600kPa Digital control and display |
|
Sear speed |
0.0016~4mm/min |
|
Back pressure |
0~500kPa Digital control and display |
|
Axial force |
F=0~6kN |
|
Pore pressure |
(water)-30kPa~600kPa, (air)00~600kPa |
|
Clay inlet value force |
S=300kPa,500kPa |
|
Volume deformation |
V=0~50cm, minimum resolution:0.1ml |
