Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
220V-50HZ
-
Dimension(L*W*H):
-
1.5*0.63*1.2m
-
Weight:
-
130 kg
-
Min paper size:
-
150x150mm
-
Maximum height of paper:
-
50mm
-
Laminating temperature:
-
80-120℃
-
Pressure:
-
0.1~0.5MPa
-
Feeding mode:
-
Automatic
-
Feeding Method:
-
Friction
-
With slitting function:
-
with
-
Anti-curl function:
-
with
-
Auto Cutting after laminating:
-
Yes
-
Rolling-up after lamianting:
-
No
Quick Details
-
Type:
-
Laminating Machine
-
Production Capacity:
-
0-10m/min
-
Max. workable width:
-
370mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOSUN
-
Voltage:
-
220V-50HZ
-
Dimension(L*W*H):
-
1.5*0.63*1.2m
-
Weight:
-
130 kg
-
Min paper size:
-
150x150mm
-
Maximum height of paper:
-
50mm
-
Laminating temperature:
-
80-120℃
-
Pressure:
-
0.1~0.5MPa
-
Feeding mode:
-
Automatic
-
Feeding Method:
-
Friction
-
With slitting function:
-
with
-
Anti-curl function:
-
with
-
Auto Cutting after laminating:
-
Yes
-
Rolling-up after lamianting:
-
No

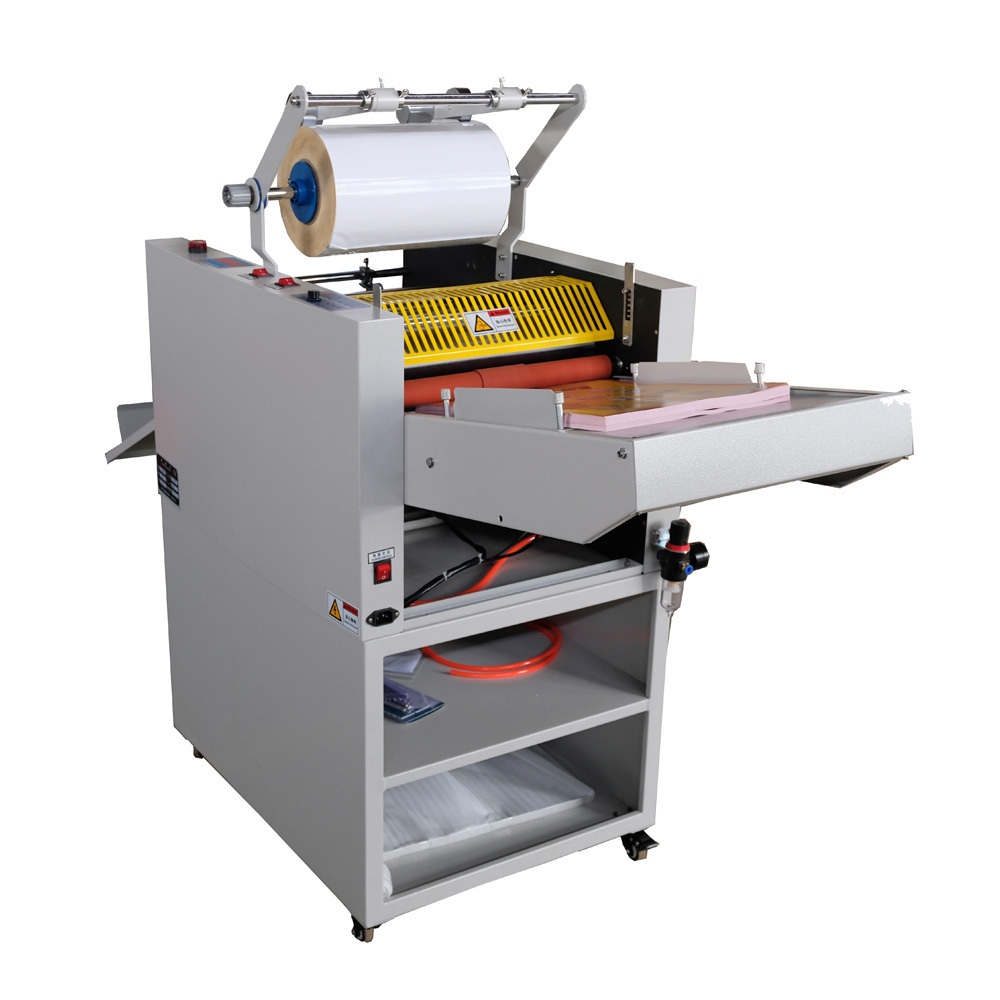

Product Appearance
Products Description
This machine is automatic feeding of paper whee automatic separation paper collecting,with advantages of compact structure, stability,safe and reliable operation, ultra-small footprint and convenient mobility that are ideal for printing store and package printing houses. The unit adopts programmable reduction box, which makes it a stable and energy-saving equipment. automatically cutting off excess film, with back-rolling device to adjust the flatness of the paper that produce a fast finished product.
The machine to pre-coated polyester film as material, can be widely used in digital bronzing,window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, clear.
|
Model
|
MSSM-390E
|
MSSM-520E
|
MSSM-720E
|
|
Max paper size
|
370mm
|
490mm
|
680mm
|
|
Min paper size
|
150x150mm
|
150x150mm
|
150x150mm
|
|
Maximum height of paper
|
50mm
|
50mm
|
50mm
|
|
Operating speed
|
0-10m/min
|
0-10m/min
|
0-10m/min
|
|
Laminating temperature
|
80~125℃
|
80~125℃
|
80~125℃
|
|
Total power
|
3kw
|
3kw
|
3kw
|
|
Dimensions(LxWxH )
|
1.5×0.63×1.2m
|
1.5×0.8×1.2m
|
1.5×1.3×1.2m
|
|
Voltage
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
|
Pressure
|
0.1~0.5MPa
|
0.1~0.5MPa
|
0.1~0.5MPa
|
|
Feeding mode
|
Automatic
|
Automatic
|
Automatic
|
|
Feeding Method
|
Friction
|
Friction
|
Friction
|
|
With slitting function
|
with
|
with
|
with
|
|
Anti-curl function
|
with
|
with
|
with
|
|
Rolling-up after lamianting
|
No
|
No
|
No
|
|
Auto cutting after laminating
|
Yes
|
Yes
|
Yes
|
Ralated Products
Details Images
CUTTING BLADE
Excess film can be cut for subsequent lamination processing
PERFORATED BLADE
A row of small holes can be punched at the edge of the film for easy tearing after lamination
