Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Blue
-
Finish:
-
Epoxy Powder Coated
Quick Details
-
Material:
-
Steel
-
Feature:
-
Suitable for Outdoors
-
Use:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Blue
-
Finish:
-
Epoxy Powder Coated

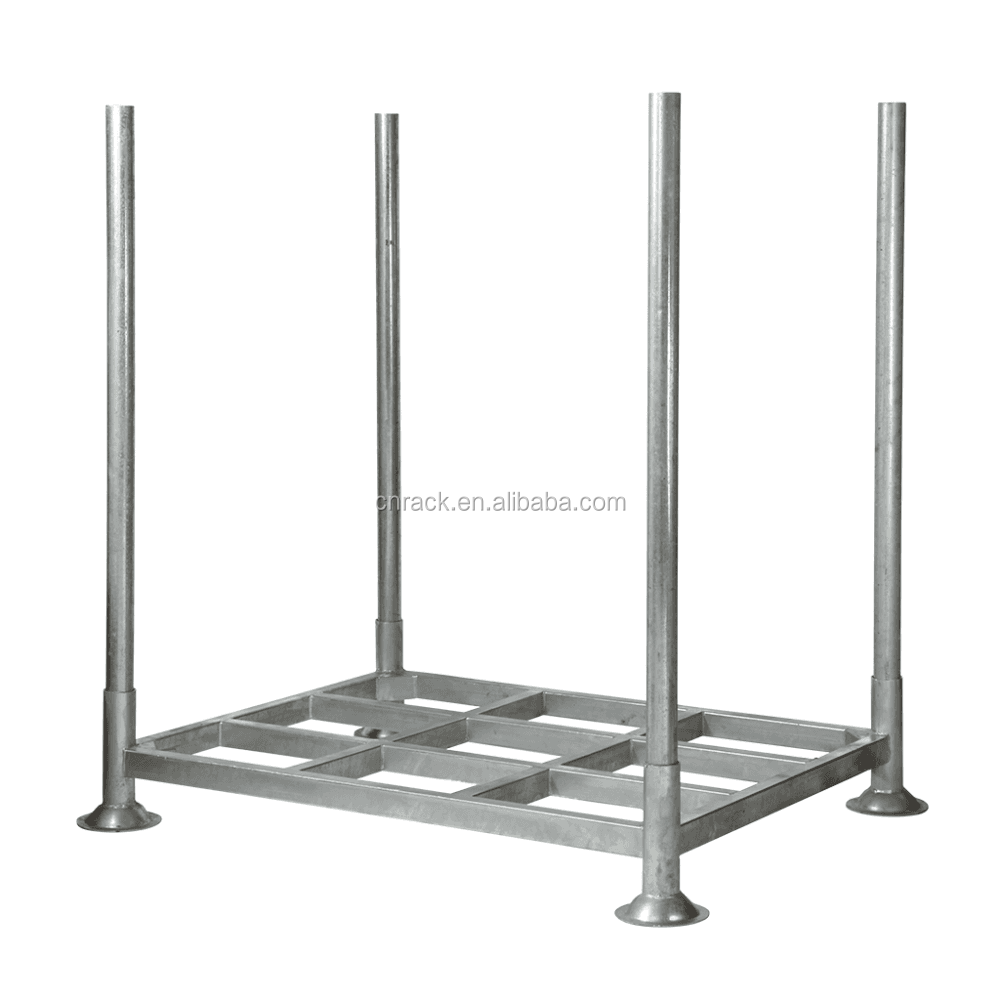

Stack rack is foldable and used for storage, circulation and handling of various goods. It has the dual function of rack and pallet and is the ideal material circulation goods for handling and storage. Knocks down or nests when empty. Stack storage racks are excellent for tire storage racks.
Optional choice:
l With wire deck
l With MDF deck
l With steel deck
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension |
Loading Capacity |
Finish | Quantities |
Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key Features |
1.Strong
tubular
steel - stack up to 4 high
2. Removable arms - fully collapsible, save space, easy storage when not in use 3. Cup feet - easy stacking 4. Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use |
||||
