Various connectors customizable to fit into different control systems and meet requirement of different scenarios.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
FH-MO/FH-S
-
Brand Name:
-
Flomarvel
-
Control Mode:
-
2 wires, 3 wires, 5 wires, feedback customizable
-
Connection:
-
NPT BSP thread
-
Pressure:
-
PN10
-
Usage:
-
Automated Systems & Machinery
-
Seal Material:
-
Silicone
-
Seat:
-
PTFE
-
Coil connection:
-
35cm (13'') lead wires (customizable)
-
Voltage:
-
V DC, 12V DC,24V DC, 220V AC etc.
-
Position indicator:
-
Yes
-
Manual override:
-
Optional
Quick Details
-
Port Size:
-
1/4''-1 1/4'' (DN8-DN32)
-
Warranty:
-
14 month
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
FH-MO/FH-S
-
Brand Name:
-
Flomarvel
-
Control Mode:
-
2 wires, 3 wires, 5 wires, feedback customizable
-
Connection:
-
NPT BSP thread
-
Pressure:
-
PN10
-
Usage:
-
Automated Systems & Machinery
-
Seal Material:
-
Silicone
-
Seat:
-
PTFE
-
Coil connection:
-
35cm (13'') lead wires (customizable)
-
Voltage:
-
V DC, 12V DC,24V DC, 220V AC etc.
-
Position indicator:
-
Yes
-
Manual override:
-
Optional

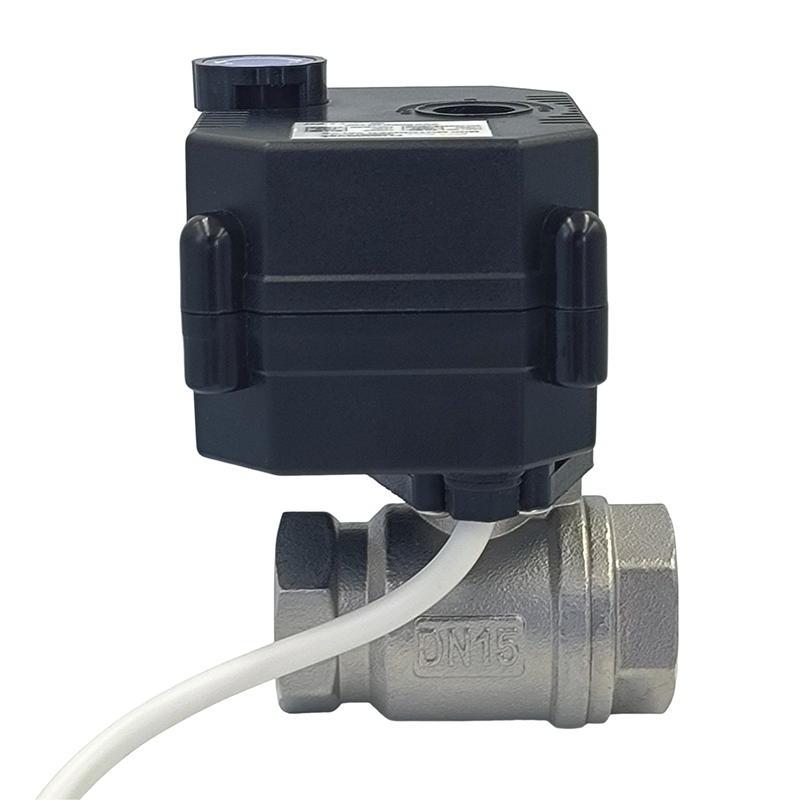

Product Overview
Good part makes good product.
Different views.
Successful Project
For Fire Extinguishing System
Automatic Equipment
Water Leakage Detection System
Water Treatment System
Automatic Process System
Automatic Equipment
Features
∎
Precision metal gear, high strength, reliable performance, long service life
∎
Multiple wiring for remote control and valve status feedback to intelligent control unit
∎
Low power consumption, battery workable
∎C
ompact, exquisite structure for small equipment
∎
IP 67 protection, applicable for humid environment
∎
With visual position indicator
∎
Manual override available for option
Clip-Pin Connection Optional
Clip-pin actuator and valve body connection makes:
① installation much easier;
② repairing much less troublesome;
③ tremendous reduction in inventory for retailers.
Various connectors customizable
Applications
Water supply and drainage system, smart home, municipal water supply, water treatment systems, irrigation system, fire fighting system, recreational vehicle (RV), trailer home, sprinkler truck, HVAC system etc.
Purchase Guide
When purchasing a motorized ball valve, it can be intimidating to decide all the specifications all at once. Below form should help to simplify the process. And it could also be used to check the
availability of the specifications.
Product Paramenters
|
Series
|
Torque
|
Operating Time
|
Working Voltage
|
Working Current
|
Max. Power
|
Max. Pressure
|
|
FH
|
2.5NM
|
<5s
|
3-6V DC, 9-24V ADC, 110-230V AC
|
<100mA
|
5W
|
1.0 Mpa
|
|
Medium Temperature
|
Ambient Temperature
|
Humidity
|
Enclosure
|
Service Life
|
Wiring
|
|
0-100℃/
32-212℉
|
-20-45℃/
-4 -113℉
|
95%
|
IP67
|
80,000 Times
|
OP01, OP02, OP03, OP04, OP05 Optional, Customization Available
|
Wiring diagram
OP01 Wiring - 2 Wires, Reverse Polarity
1.Connects red wire to positive pole, black wire to negative pole, the electric ball valve opens.
2.Reverse polarity, the electric ball valve closes.
※ Once in position, there will be no power consumption.
※ In case of power loss, valve will remain in its current state.
※ Voltage of power supply for option：5V DC/12V DC/9-35V DC
※ A DPDT switch is suggested for a simple set up.
OP02 Wiring - 3 Wires, 2 Points Control
1. Connects red wire to positive pole, black wire to negative pole, the ball valve opens.
2. Connects green wire to positive pole, black wire to negative pole, the ball valve closes.
※ Once in position, there will be no power consumption.
※ In case of power loss, valve will remain in its current state.
※ Voltage of power supply for option：5V DC/12V DC/9-35V DC
※ A SPDT switch is suggested for a simple set up.
OP03 Wiring - 3 Wires, 1 Point Control
1. Connects red wire and green wire to positive pole, black wire to negative pole, the ball valve opens.
2. Disconnects green wire, the ball valve closes.
※ Once in position, there will be no power consumption.
※ In case of power loss, valve will remain in its current state.
※ Voltage of power supply for option：5V DC/9-24V ADC
※ A on/off switch can be installed in line with green wire for a simple set up.
This OP03 electric ball actuator uses a constant power and ground wire while a third green wire is used for the control switch to open and close the valve.
OP04 Wiring - 2 Wires，Auto Return / Fail Safe
1. Connects red wire to positive pole, black wire to negative pole, the ball valve opens (the ball valve is normally closed by default).
2. Disconnect either wire (the circuit is open), there is no power supply to the ball valve, the ball valve closes.
※ Once in position, there is a nominal power consumption to keep the capacitor charged.
※ In case of power loss, valve will return to its normal position, which by default is normally closed valve. If normally open ball valve is needed, please let us know when place an order.
※ Voltage of power supply for option：5V DC/9-24V ADC
※ A on/off switch can be installed in line with red wire for a simple set up.
OP05 Wiring - 5 Wires，With Valve Position Feedback
1. There should be 2 power supply, one for electric ball valve actuator - red wire to positive pole, black wire to negative pole; another one for customer’s position indication devices - the green wire outputting fully-open signal connects to one device, the yellow wire outputting fully-closed signal connects to another device, and the devices both should be connected to the positive pole of the power supply, and the white wire of the electric ball valve actuator connects to negative pole of the power supply, there conforms a closed circuit. The valve opens, the open position indication device receives the fully-open signal, will light up if lights are used as position indication devices.
2. Reverse polarity, the ball valve closes, the close position indication device receives the fully-closed signal, will light up if lights are used as position indication devices.
※ Once in position, there will be no power consumption for electric ball valve, nomial power consumption for position indication devices.
※ In case of power loss, valve will remain in its current state.
※ Voltage of power supply for option：5V DC/12V DC/24V DC
※ A DPDT switch is suggested for a simple set up.
Why Choose Us
Efficient
Direct communicate with a manufacturer who has an experienced professional team about your needs, such as OEM, ODM service, expedite an urgent order etc. to save your time and cost.
Flomarvel Technology Co., ltd (Tianjin Huayi Chenlong Technology Co., Ltd) has been specialized in the R&D and production of electric ball valve/motorized ball valve for more than 10 years. Our products are mainly exported to Canada, the United States, German, Sweden, Netherlands etc. And they are mainly used in equipment and system automation, smart home, building automation, municipal water supply etc. We have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer’s project requirements. Welcome to contact us about your needs.
“Details matter” Is our culture. We serve our customers well by doing each small thing and each valve well.
FAQ
1
. Is OEM/ODM service available?
As a manufacturer, we have rich experience providing OEM service for customer to build their own product and ODM service to customize product according to customer’s project requirements. Welcome to contact us about your needs.
2.
How many days is the lead time?
For standard products, when the order quantity is less than 50pcs, the lead time would be about 3 working days; when the order quantity is 50-200 pcs, the lead time would be 7 working days, for 200-1000pcs order, it would be 15 working days.
3. How do you do the shipment?
Our products are mostly shipped by express, such as UPS, DHL, Fedex etc. If the shipment could be done with cilent's courier account as payer, or
the shipment is to be done by clients' own forwarder,
then of course no freight charge. Otherwise, we could quote for the shipping cost, if it is acceptable to clients, then we can do the shipment.
For bulky order, surely we could also check the cost of shipment by air or by sea.
4. What is the MOQ？
Actually we don't have requirement about the MOQ, because for most clients, they would need to test sample first, which could be 2 pcs.
