Rovmaker MCBH 4F MCIL 4M Underwater Electrical Wet-mate Connectors of Ip 68 Waterproof Marine Wire BNC Connector

Rovmaker MCBH 4F MCIL 4M Underwater Electrical Wet-mate Connectors of Ip 68 Waterproof Marine Wire BNC Connector

FOB Reference Price: Get Latest Price

≥1 Sets

US $93

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Pins:: 4p

Place of Origin:: Jiangsu, China

Brand Name:: ROVMAKER

Model Number:: YS-MCBH-4F YS-MCIL-4M

Keywords:: bnc ip68 waterproof marine wire connector

Depth:: 0~1000 meters

Voltage:: 300 V (resistance to voltage is greater than 1500V 60s)

Working current:: 2A~16A

Insulation resistance:: > 1000 mΩ(room temperature)

Wet insertion frequency:: > 500 times

Working temperature:: (-4~60)°C

Quick Details

Type:: BNC

Application:: Power,Automotive

Gender:: Male,Female

Pins:: 4p

Place of Origin:: Jiangsu, China

Brand Name:: ROVMAKER

Model Number:: YS-MCBH-4F YS-MCIL-4M

Keywords:: bnc ip68 waterproof marine wire connector

Depth:: 0~1000 meters

Voltage:: 300 V (resistance to voltage is greater than 1500V 60s)

Working current:: 2A~16A

Insulation resistance:: > 1000 mΩ(room temperature)

Wet insertion frequency:: > 500 times

Working temperature:: (-4~60)°C

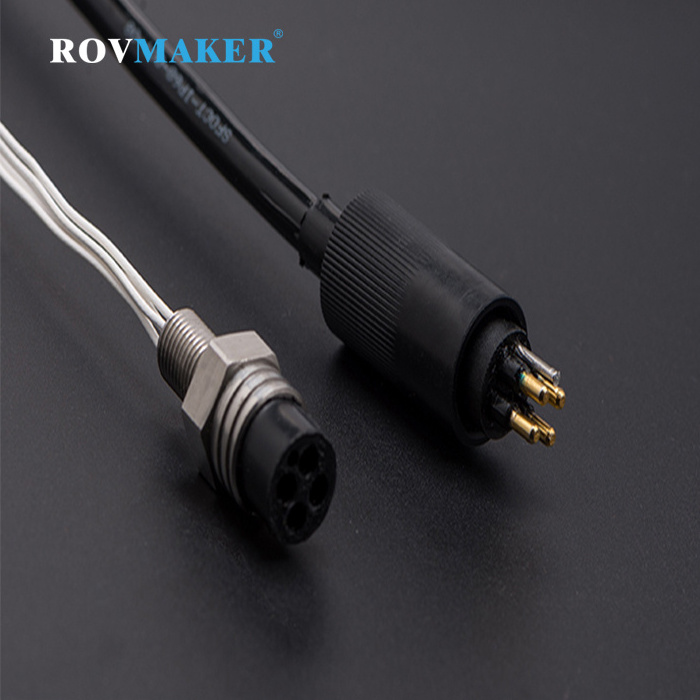

Rovmaker Underwater Electrical Wet-mate Connectors of Ip 68 Waterproof Marine Wire BNC Connector

PRODUCT TECHNICAL FEATURES

1. Small volume and light weight, small footprint, professional wet plug.

2. High seawater corrosion resistant stainless steel shell material.

3. Standard pin and hole position distribution, 7/16"-20 UNF tail thread, can be exchanged with different brands of the same model.

PRODUCT SPECIFICATION

STRUCTURE	MATERIALS AND SPECIFICATIONS
Main	The seawater corrodes stainless steel
Install screw	7/16-20 UNF thread length is 15/19mm
Socket head	Neoprene (special mixing rubber for underwater connector)
Contact Pin	Gold-plated copper alloy, American standard pin
Positioning pin	303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don't need)
O-rings	Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78
Locking lid	Polyformaldehyde resin (POM)
Cable plug body	Special polyether
Install line	Teflflon, silver-plated pure copper.
End cap	Neoprene (special mixing rubber for underwater connector)
Cable plug	Pressure-resistant seawater special cable.

______________________________________________________________________________________________________________________

TECHNICAL PERFORMANCE

ITEM	RATING VALUE
Depth	0~1000 meters
Voltage	300V (resistance to voltage is greater than 1500V 60s)
Working current	2A~16A
Insulation resistance	> 1000 m Ω (room temperature)
Wet insertion frequency	> 500 times
Working temperature	(-4~60)°C

DIMENSIONED DETAILS

PRECAUTIONS

* Always apply grease before mating.
* Disconnect by pulling straight, not at an angle.

* Do not pull on the cable and avoid sharp bends at cable entry.
* When using a bulkhead connector, ensure that there are no angular loads.
* All kinds of connectors should not be exposed to extended periods of heat or direct sunlight.

Greasing and mating above water (dry mate) :

* Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.

* A layer of grease corresponding to minimum 1/10 of socket depth should be applied to the female connector.

* The inner edge of all sockets should be completely covered, and a thin transparent layer of grease left visible on the face of the connector.

* After greasing, fully mate the male and female connector in order to secure optimal distribution of grease on pins and in sockets.

* To confifirm that grease has been suffificiently applied, de-mate and check for grease on every male pin. Then re-mate the connector.

Greasing and mating under water (wet mate) ：

* Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.

* A layer of grease corresponding to approximately 1/3 of socket depth should be applied to the female connector.

* All sockets should be completely sealed, and a transparent layer of grease left visible on the face of the connector.

* After greasing, fully mate the male and female connector and remove any excess grease from the connector joint.

Cleaning

* General cleaning and removal of any accumulated sand or mud on a connector should be performed using spray based contact cleaner (isopropyl alcohol).

* New grease must be applied again prior to mating.

Use of loctite

For locking metallic connectors, the use of Loctite 243 is recommended.

INSTALLATION REQUIREMENTS

1. End surface roughness requirements Ra1.6 in the diameter of the screw hole around 25mm when threaded hole installation.

2. Hole diameter should be between Ø 11.2 ~ Ø11.4 mm and roughness requires Ra1.6 in the diameter of the screw hole around 25mm when through-hole installation.

3. Before installing ,make sure to apply a thin layer of silicone oil to the o-ring, not too thick.

MORE PINS

PRODUCTION

PACKAGING DELIVERY

Each Kit Contents
- Bulkhead connector female plug (4pin) * 1

- Inline connector male socket (4pin) * 1
- Dummy locking * 1

Packaging
- Special Carton for International Logistics

Shipping
- We provide the following express
