Quick Details
-
Brand Name:
-
LXTL-3.5
-
Voltage:
-
380V 50HZ 3P (Customizable)
-
Power:
-
45kw
-
Dimension(L*W*H):
-
1700*1300*1700
-
Weight:
-
1150 kg
-
Application:
-
Waste Oil Refinery Equipment
-
Function:
-
Remove Water
-
End product:
-
Light Oil
-
Name:
-
Diesel Distillation Plant
-
Type:
-
Continuous Oil Distillation Machine
-
After-sales Service Provided:
-
Engineers
Quick Details
-
Marketing Type:
-
New Product 2021
-
Flow:
-
3.5m³/h
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
LXTL-3.5
-
Voltage:
-
380V 50HZ 3P (Customizable)
-
Power:
-
45kw
-
Dimension(L*W*H):
-
1700*1300*1700
-
Weight:
-
1150 kg
-
Application:
-
Waste Oil Refinery Equipment
-
Function:
-
Remove Water
-
End product:
-
Light Oil
-
Name:
-
Diesel Distillation Plant
-
Type:
-
Continuous Oil Distillation Machine
-
After-sales Service Provided:
-
Engineers
| Technical Parameter | |||||
| Parameter | Unit | LXTL-1.5 | LXTL-2 | LXTL-3.5 | LXTL-5 |
| Flowrate | m 3 /h | 1.5 | 2 | 3.5 | 5 |
| Vacuum Range | Mpa | -0.06~-0.095 | |||
| Working Pressure | Mpa | ≤0.5 | |||
|
Working Temperature |
℃ | ≤30~80 | |||
| Heating Power | KW | 18 | 24 | 36 | 48 |
| Total Power | KW | 23 | 31 | 45 | 60 |
| Inlet(outlet)Diameter | mm | Φ32 | Φ32 | Φ38 | Φ42 |
| Net Weight | Kg | 730 | 850 | 1150 | 1650 |
| Overall Dimensions | L/mm | 1550 | 1650 | 1700 | 1750 |
| W/mm | 1200 | 1250 | 1300 | 1350 | |
| H/m | 1600 | 1700 | 1700 | 1700 | |
| Performance Index | |
| Item | Index after processing |
| Content of granule | ≤G6(NAS1638) |
| Content of water | ≤80ppm |
| Demulsifying Value | ≤15min(GB/T7605) |
| Flash point | >172℃(GB/T3536) |
| Rust Test in Liquid Phase | GB/T3536 |
Application>>>

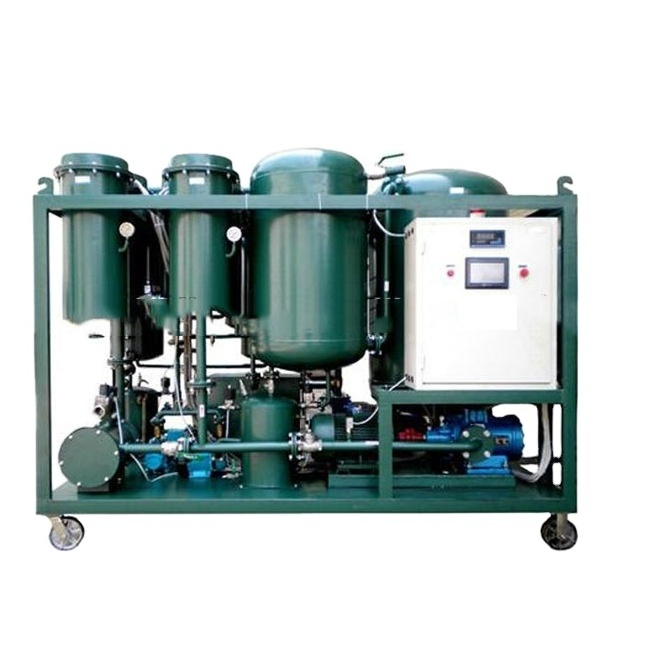

LXTL Vacuum centrifugal type purifier is specially used for processing turbine oil. On one hand,it can separate water and impurity in large amount contained in the turbine oil without changing filtration core;one the other,it can remove drops of water,impurities,gas and soluble acid to regenerate lubrication of turbine oil and to ensure the turbine's safe and stable operation.
After-sales Services
>>>
One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers requ
ired.
