Quick Details
-
Brand Name:
-
BANGZHAO OR OEM
-
Model Number:
-
BZMC Series
-
Work Time (h):
-
8-12hours
-
Max PV Power:
-
80kw
-
Max PV Voltage:
-
900vdc
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Accessories:
-
Charger Adapter
-
Flexibility:
-
normly
-
Maximum Current::
-
30A to 150A optional
-
Color:
-
Blue/White
-
Display:
-
5'' LCD Screen
Quick Details
-
Type:
-
MPPT, PWM
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BANGZHAO OR OEM
-
Model Number:
-
BZMC Series
-
Work Time (h):
-
8-12hours
-
Max PV Power:
-
80kw
-
Max PV Voltage:
-
900vdc
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Accessories:
-
Charger Adapter
-
Flexibility:
-
normly
-
Maximum Current::
-
30A to 150A optional
-
Color:
-
Blue/White
-
Display:
-
5'' LCD Screen
MPPT solar regulator high voltage solar charge controller 50-100amp solar panel battery charger regulator
Bangzhao Electric Co.,Ltd is a company who was established in 2008 and specialized in developing and supplying of power products. The high performance of its products stems from the cutting-edge technology developed by the domestic top 100 engineers. During the past 10 years, we have been providing the best system solutions of Life PO4 battery pack cabinet,Boat inverter ,Car inverter,Solar inverter,Wind-Solar Hybrid inverter,lithium battery charger,PWM/MPPT solar charge controller,PV pump inverter,Explosion-proof inverter,DC combiner box,AC to DC battery cabinet ,Single Phase to 3 Phase Converter,Lithium battery storage system etc . to customers, it is widely applied in the industry of solar energy,wind power,water power,car,ship,train,hospital, aviation,military automation,etc.
Rack type MPPT charge controller easy to install solar inverter or lithium battery storage system:
Rack type solar charge controller For lithium battery storage system picture:
Rack type solar charger For solar inverter storage system charge controller with MPPT and LCD touch screen
Product Characteristic for MPPT solar regulator LCD touch screen solar charge controller 30-50-80-100-150amp solar panel battery charger regulator
1. High speed & performance 32bit processor, advanced EMC design
2. Advanced MPPT tracking algorithm, the tracking efficiency more than 99%
3. High performance IGBT power module as electronic switch, plus multiphase synchronous rectification technology, improves the stable greatly
4. Ultrafast maximum power point tracking speed to ensure tracking efficiency
5. Perfect battery protection function and advanced battery activation technology which increases battery lifespan 30% at least and improves the system performance
6. Widely PV arrays’ voltage input, this can save the cost of PV combiner box, wires and construction
7. Full enclosed duct design and high-speed fan for cooling makes the controller suitable for various harsh environments
8. 3’’ LCD screen and LED indicators show working parameters and system status
9. Parameters can be adjusted through touching keys in LCD panel
10. Users can check the power generation of daily, monthly and total through the statistical function of generating capacity (SOC)
11. Complete menu display and operation, plus the humanized design of browsing interface, makes the operation more easy
12.It shows the environment temperature, data and real time, auto temperature compensation function
13.Twice protection function to protect battery from damage when the power switch is down
14. Standard Modbus communication protocol for RS-485 or GPRS communication to extend the communication distance (optional function)
|
Model |
BZMC192,220(216),240 |
BZMC360,384(380) |
BZMC 480 |
||||||
|
Battery bank voltage |
192V, 220V(216V), 240V |
360V,384V(380V) |
480V |
||||||
|
Rated charge current |
50A |
80A |
100A |
50A |
80A |
100A |
50A |
60A |
80A |
|
Controller charging method |
MPPT ( Maximum power point tracking ) |
||||||||
|
Controller tracking efficiency |
≥99% |
≥99% |
≥99% |
||||||
|
PV module maximum open circuit voltage |
DC800V |
DC800V |
850VDC |
||||||
|
MPPT tracking start voltage |
Vbat( Actual battery voltage )+20V |
||||||||
|
PV startup charging voltage |
Vbat( Actual battery voltage )+10V |
||||||||
|
Maximum PV module power |
9.6KW 11.0KW 12.0KW |
15.2KW 17.6KW 19.2KW |
19.2KW 22.0KW 24.0KW |
18.0KW 19.2KW |
28.8KW 30.7KW |
36.0KW 38.4KW |
24.0KW |
28.8KW |
38.4KW |
|
Charging method |
Four-stage charging: MPPT fast charge, equal charge (constant voltage), float charge, end charge |
||||||||
|
Human interaction |
LCD display, touch button |
||||||||
|
Heat dissipation |
Intelligent temperature control air cooling |
||||||||
|
communication |
RS485 communication, standard Modbus protocol, optional DTU module for wireless remote monitoring |
||||||||
|
Use area elevation |
≤2000 meters, more than 2000 meters need to be derated |
||||||||
|
Working temperature |
-25℃~+55℃ |
||||||||
|
Equipment protection level |
IP21 |
||||||||
|
Weight |
25kg |
28Kg |
25Kg |
28Kg |
25Kg |
28Kg |
|||
|
Size |
494*384*187mm |
||||||||

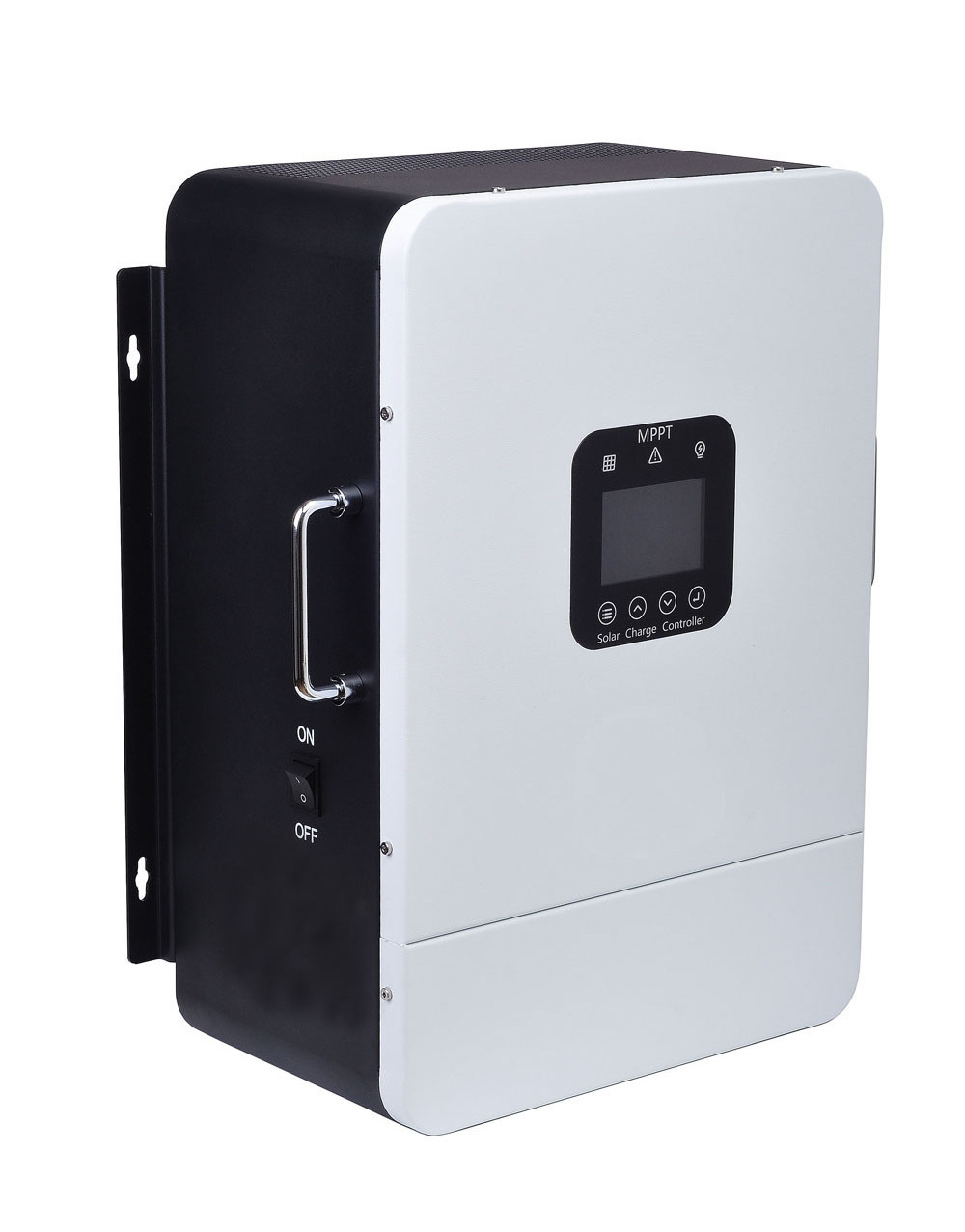

MPPT type pv charge controller wall type picture:
Bangzhao electric other products for your Choose:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year .
