Quick Details
-
Features:
-
Multi function
-
Warranty:
-
1 year
-
Dimension(L*W*H):
-
150*120*80
-
Voltage:
-
220V
-
Weight (KG):
-
172 KG
-
Marketing Type:
-
Multi Function Industrial Robot
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAXIN
-
Application:
-
welding
-
Features:
-
Multi function
-
Warranty:
-
1 year
-
Dimension(L*W*H):
-
150*120*80
-
Voltage:
-
220V
-
Weight (KG):
-
172 KG
-
Marketing Type:
-
Multi Function Industrial Robot

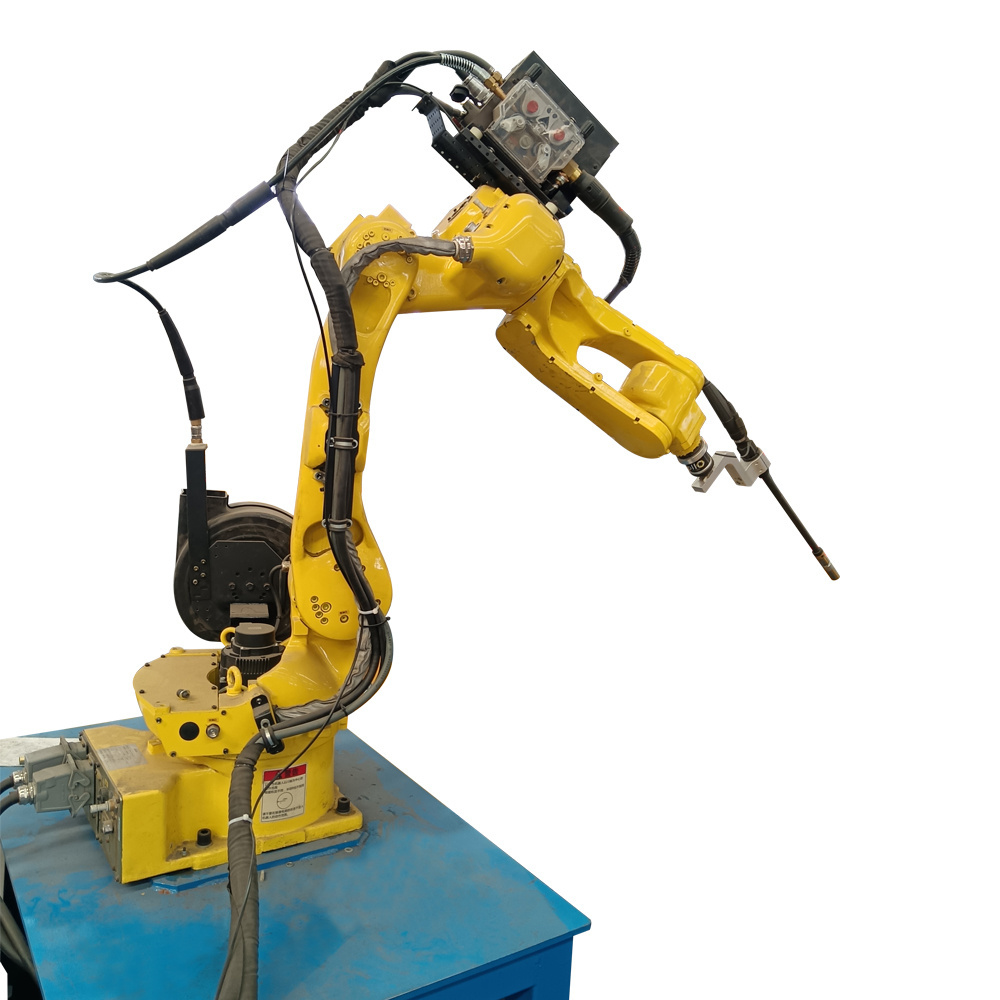

Product Description
Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial
robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and
control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications
of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all
tasks are completed with high efficiency, durability, speed and accuracy.
robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and
control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications
of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all
tasks are completed with high efficiency, durability, speed and accuracy.
Specification
|
Model No.
|
JX10-1440
|
|
|
Controlled axis
|
6-DOF
|
|
|
Max payload
|
10 kg
|
|
|
Max stroke
|
1440mm
|
|
|
IP Level
|
J1, J2-IP56; J3, J4, J5, J6-- IP67
|
|
|
Installation mode
|
Floor type, ceiling type
|
|
|
Robot mass
|
172 kg
|
|
|
Repeatability
|
±0.05 mm
|
|
|
Welding machines |
● Standard: Aotai NBC-350R (MIG/MAG/CO2)
|
|
|
|
● Optional: Aotai NBC-350RL (low spatter)
|
|
|
|
● Optional: Aotai NBC-350RL (low spatter)
|
|
|
Welding current
|
350A/500A
|
|
|
Welding torch
|
Standard air-cooling torch with built-in anti-collision protection
|
|
|
Travel range
|
|
|
|
J1 axis S
|
±160°
|
|
|
J2 axis L
|
+80°~-145°
|
|
|
J3 axis U
|
+145°~-75°
|
|
|
J4 axis R
|
±190°
|
|
|
J5 axis B
|
+50°~-210°
|
|
|
J6 axis T
|
±230°
|
|
|
Travel speed
|
|
|
|
J1 axis S
|
199.5 ˚/s
|
|
|
J2 axis L
|
159.3 ˚/s
|
|
|
J3 axis U
|
199.5 ˚/s
|
|
|
J4 axis R
|
392 ˚/s
|
|
|
J5 axis B
|
272 ˚/s
|
|
|
J6 axis T
|
1000 ˚/s
|
|
Working pictures
