- Product Details
- {{item.text}}
Quick Details
-
Input Voltage(V):
-
120-277
-
Lamp Luminous Flux(lm):
-
8400
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 to 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Wuhu
-
Brand Name:
-
DL
-
Product name:
-
DLC ETL 60W 2X4 Lay In LED Retrofit Troffer Lights
-
Warranty:
-
5 Years
-
Installation:
-
Recessed mounting
-
Luminous Efficiency:
-
105lm/w
-
Wattage:
-
60W
-
Driver:
-
Chinese LED Driver
-
Beam angle:
-
160 Degree
-
Life Time:
-
50000 hours
Quick Details
-
Type:
-
LED Troffer Light
-
Warranty(Year):
-
5-Year
-
Application:
-
Hotel / Hospital / Supermarket/Factory / Office
-
Input Voltage(V):
-
120-277
-
Lamp Luminous Flux(lm):
-
8400
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 to 55
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Wuhu
-
Brand Name:
-
DL
-
Product name:
-
DLC ETL 60W 2X4 Lay In LED Retrofit Troffer Lights
-
Warranty:
-
5 Years
-
Installation:
-
Recessed mounting
-
Luminous Efficiency:
-
105lm/w
-
Wattage:
-
60W
-
Driver:
-
Chinese LED Driver
-
Beam angle:
-
160 Degree
-
Life Time:
-
50000 hours

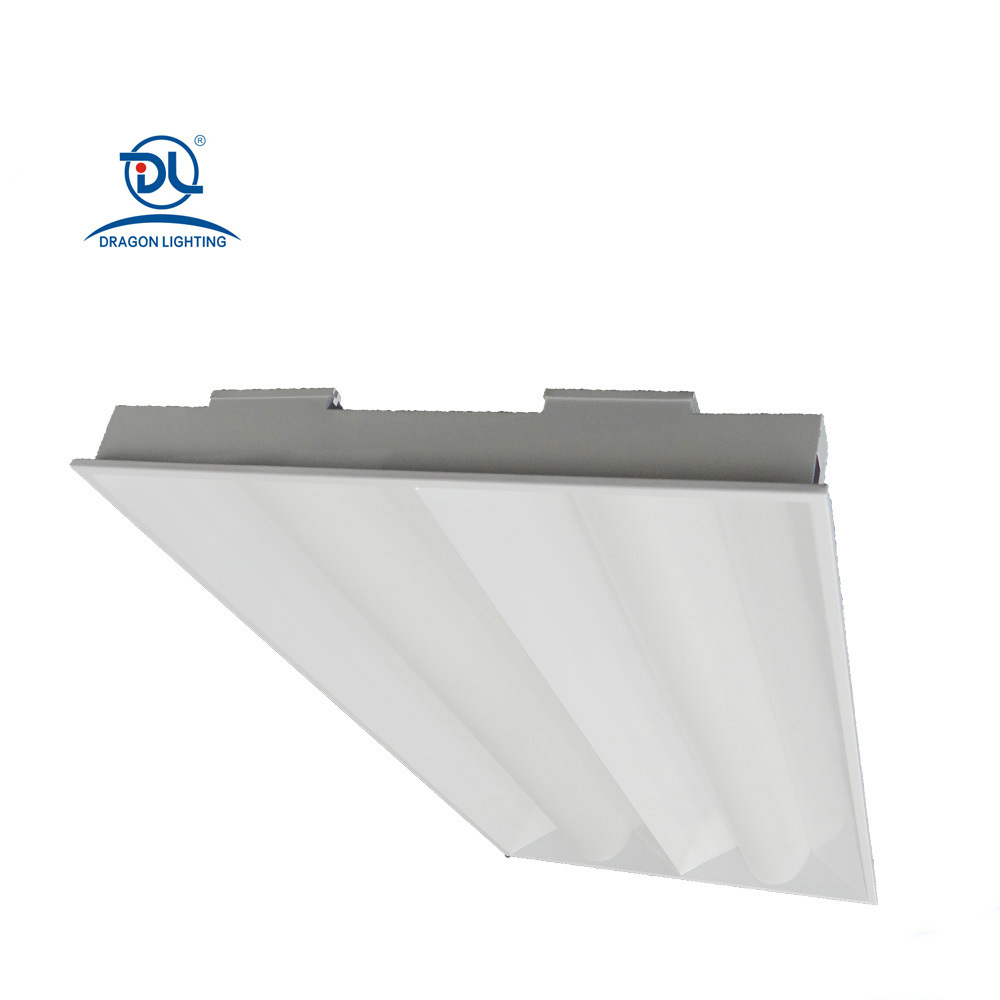

DLC ETL 60W 2X4 Lay In LED Retrofit Troffer Lights
Technical data:
|
Model: DLTPD2480 Fixture Demension: 47.25"x23.80"x3.35" Output power: 60W Luminous Flux: 6300lm Light efficiency: 105lm/W LED: LED SMD 2835 Driver:Chinese LED driver |
CRI: >80 CCT: 3000K-6000k Rated input: 120-277V Beam Angle: 160° Certification: ETL/DLC Warranty: 50000 hours Dimmable or Dali driver is available on request |
Housing for LED troffer:
Light is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.
Diffuser for LED troffer:
Polycarbonate, Acrylic LED Diffuser Specially for LED.
LED type for LED troffer:
It use LED SMD 2835.
Electrical for LED troffer:
Arcata or Famous logo standard driver or Dimmable 0-10v driver.
Mounting for LED troffer:
Recessed mounting.
Main applications:
1.Hotel / Hospital / Supermarket
2.Conference / Meeting room / Factory / Office
3.Bank / Institution Building
4.School / College / University
High efficiency save energy:
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.
Luminous uniformity:
It is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, so the reasonable distance between the LED SMD and the Polycarbonate or Acrylic LED Diffuser, so that it improves the brightness uniformity when it's lighting up.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications:
|
Model |
Power |
Leds |
Luminous Flux (lm) |
Efficiency (lm/w) |
CRI |
CCT |
|
20 |
2835 |
2500 |
125 |
>80 |
3000K-6000K | |
|
30 |
2835 |
3750 |
125 |
>80 |
3000K-6000K |
|
|
40 |
2835 |
5000 |
125 |
>80 |
3000K-6000K |
|
|
50 |
2835 |
6250 |
125 |
>80 |
3000K-6000K |
|
|
60 |
2835 |
7500 |
125 |
>80 |
3000K-6000K |
|
|
80 |
2835 |
10000 |
125 |
>80 |
3000K-6000K |
Packing details:
|
Model |
Dimension (L*W*H)(inch ) |
Packing size (inch ) |
Qty/ctn
|
|
23.80x23.80x3.35 |
24.40x24.40x7.50 |
2 |
|
|
23.80x23.80x3.35 |
24.40x24.40x7.50 |
2 |
|
|
23.80x23.80x3.35 |
24.40x24.40x7.50 |
2 |
|
|
47.25x23.80x3.35 |
47.65x24.40x7.50 |
2 |
|
|
47.25x23.80x3.35 |
47.65x24.40x7.50 |
2 |
|
|
47.25x23.80x3.35 |
47.65x24.40x7.50 |
2 |
High transmittance of polycarbonate diffuser for bright and uniform lighting distribution.
Indirect reflectors are precision formed and contoured to provide soft, indiect illumination.
Open rear cover design, it is easy to install It uses Arcata,and it can give the LED troffer
the wiring and maintenance. long life.
It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection. Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.
Q1: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample order is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.
Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.
