Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAHE
-
Dimension(L*W*H):
-
270*270*700MM
-
Weight:
-
13 KG
-
Product name: chine:
-
A03 hand pressure filling ma
-
Working mode::
-
Manual
-
Working speed::
-
20-30 times/min
-
Filling range::
-
0-50ml
-
Filling nozzle diameter:
-
1 cone filling nozzle: 6mmx9mm
-
1 tube filling nozzle::
-
4mmx6mm
-
Weight::
-
13KG
-
Dimensions::
-
270*270*700mm
-
Hopper volume::
-
10 kg
-
Filling accuracy::
-
±1%
Quick Details
-
Machinery Capacity:
-
500BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Paper
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%
-
Voltage:
-
0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIAHE
-
Dimension(L*W*H):
-
270*270*700MM
-
Weight:
-
13 KG
-
Product name: chine:
-
A03 hand pressure filling ma
-
Working mode::
-
Manual
-
Working speed::
-
20-30 times/min
-
Filling range::
-
0-50ml
-
Filling nozzle diameter:
-
1 cone filling nozzle: 6mmx9mm
-
1 tube filling nozzle::
-
4mmx6mm
-
Weight::
-
13KG
-
Dimensions::
-
270*270*700mm
-
Hopper volume::
-
10 kg
-
Filling accuracy::
-
±1%
Product Overview

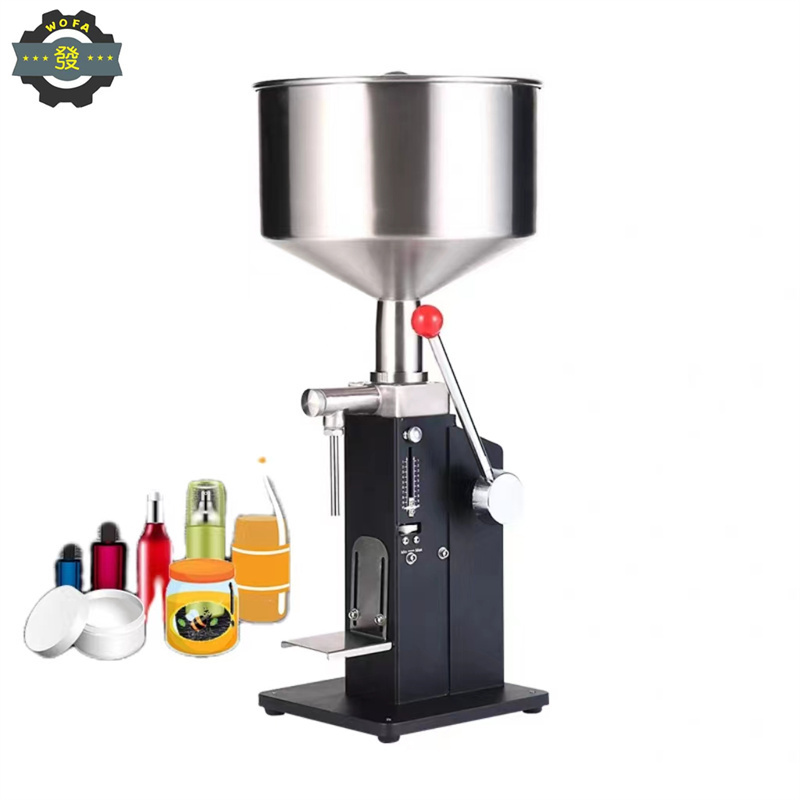

A03 manual paste filling machine
A03 manual paste filling machine adopts piston structure, which can fill 0-50g liquid, paste and other materials quantitatively. It can fill liquid substances such as liquid medicine, liquid food, lubricating oil, shampoo, shampoo, etc., with the function of the paste liquid filling machine
FEATURES AT A GLANCE
It has the function of paste liquid filling machine
Its structure is simple and reasonable,
Easy manual operation.
No energy required
A knob for adjusting the filling volume is provided
, quantitative discharge,
Filling volume and filling speed can be manually controlled
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Product name:
|
A03 hand pressure filling machine
|
|
2
|
Working mode:
|
Manual
|
|
3
|
Working speed:
|
20-30 times/min
|
|
4
|
Filling range:
|
0-50ml
|
|
5
|
Filling accuracy:
|
±1%
|
|
6
|
Hopper volume:
|
10 kg
|
|
7
|
Dimensions:
|
270×270×700mm
|
|
8
|
Weight:
|
13KG
|
PRODUCT CONFIGURATION
Upgrades can be adjusted quantitatively
304 stainless steel hopper (can do 316)
Pallet design
