Quick Details
-
Warranty:
-
25, 25 Years Output Power Guarantee
-
Brand Name:
-
SINOSHINE
-
Model Number:
-
HET-M300-310S96A
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2094*1038*30mm
-
Solar Panel Type:
-
mono crystalline
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
TUV Certificate IP230 Waterproof
-
produce base:
-
two
-
Connector:
-
PV connectors
-
Glass cover:
-
3.2mm high transmission,low iron tempered glass
-
Cable:
-
4.0mm2 photovoltaic special cable
-
Frame Color:
-
Silver, Black or any color
-
Application:
-
solar power system
-
Certificate:
-
TUV/ISO/CE/ROHS/FCC
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Monocrystalline Silicon
-
Panel Efficiency:
-
0.203193727290113
-
Warranty:
-
25, 25 Years Output Power Guarantee
-
Brand Name:
-
SINOSHINE
-
Model Number:
-
HET-M300-310S96A
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2094*1038*30mm
-
Solar Panel Type:
-
mono crystalline
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
TUV Certificate IP230 Waterproof
-
produce base:
-
two
-
Connector:
-
PV connectors
-
Glass cover:
-
3.2mm high transmission,low iron tempered glass
-
Cable:
-
4.0mm2 photovoltaic special cable
-
Frame Color:
-
Silver, Black or any color
-
Application:
-
solar power system
-
Certificate:
-
TUV/ISO/CE/ROHS/FCC
Please send inquiry to us!
Products Description
|
Structural Parameters
|
|
|
|

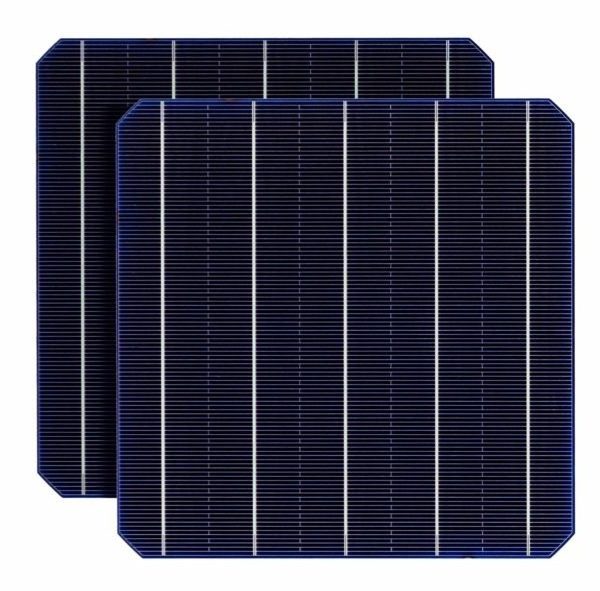

Cells
|
96pcs 166x83mm Monocrystalline solar cells
|
|
|
Module Dimension
|
2094x1038x30mm(LxWxH)
|
|
|
Module Weight
|
28kg
|
|
|
frame
|
Anodized aluminum profile
|
|
|
Junction Box
|
Rated current:25A,IP68,TUV
|
|
|
Cable
|
Length Negative 400mm/Positive 300mm
|
|
|
Connector
|
Compatible with MC4
|
|
|
STC
|
|
|
|
|
|
|||||
|
Maximum Power (Pmax)
|
300W
|
305W
|
310W
|
425W
|
430W
|
|||||
|
Maximum Power Voltage (Vmp)
|
27.68V
|
28.09V
|
28.46V
|
31.70V
|
31.88V
|
|||||
|
Maximum Power Current (Imp)
|
10.84A
|
10.86A
|
10.90A
|
13.41A
|
13.49A
|
|||||
|
Open-circuit Voltage (Voc)
|
33.13V
|
33.34V
|
33.54V
|
38.30V
|
38.49V
|
|||||
|
Short-circuit Current (Isc)
|
11.33A
|
11.35A
|
11.39A
|
14.15A
|
14.23A
|
|||||
|
Module Efficiency STC (%)
|
0.21
|
0.2125
|
0.2151
|
0.2176
|
0.2202
|
|||||
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃，AM1.5G
|
|
|
|
|
|||||
|
Operating Conditions
|
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
|
Temperature range
|
-40°C~+85°C
|
|
|
Series Fuse Rating
|
15A
|
|
|
NOTC
|
45±2℃
|
|
|
Temperature Coefficient of Isc(α-Isc）
|
+0.033%/℃
|
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
|
