- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HBAN
-
Model Number:
-
HBS1-AGQ16F-11EZ/J/S/12V/G
-
Mounting hole size:
-
16mm
-
Head type:
-
Ring illumination
-
Rating value:
-
5A/250VAC
-
Operation type:
-
Latching
-
Contact configuration:
-
1NO1NC
-
Waterproof:
-
IP67
-
Led voltage:
-
12V
-
Led color:
-
Green
-
Crust material:
-
Stainless steel
-
Terminal type:
-
Pin terminal
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67,IK08
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HBAN
-
Model Number:
-
HBS1-AGQ16F-11EZ/J/S/12V/G
-
Mounting hole size:
-
16mm
-
Head type:
-
Ring illumination
-
Rating value:
-
5A/250VAC
-
Operation type:
-
Latching
-
Contact configuration:
-
1NO1NC
-
Waterproof:
-
IP67
-
Led voltage:
-
12V
-
Led color:
-
Green
-
Crust material:
-
Stainless steel
-
Terminal type:
-
Pin terminal
-
Certification:
-
CE
Product Paramenters
|

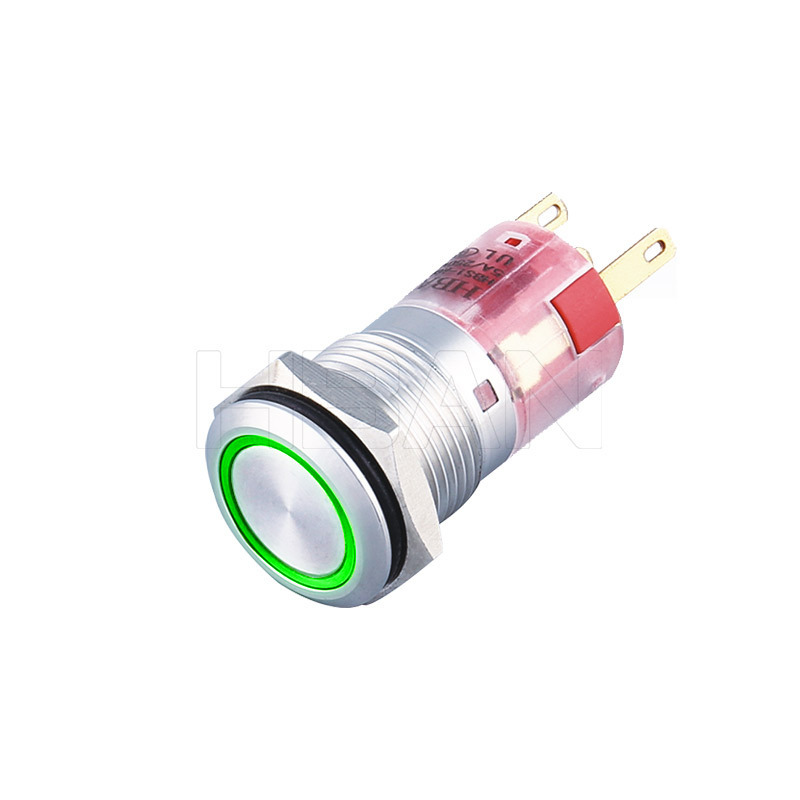

16mm Flat Stainless steel Push Button Switch with LED
|
|
|
|
Mounting hole size:
|
16mm
|
|
|
Switch value:
|
5A/250 AC
|
|
|
Operation type:
|
Latching
|
|
|
Contact configuration:
|
1NO1NC
|
|
|
Head shape:
|
Flat round
|
|
|
Crust material:
|
Stainless Steel
|
|
|
Terminal type:
|
Pin terminal
|
|
|
Electrical life :
|
≥50,000 times
|
|
|
Mechanical life:
|
≥1，000,000 times
|
|
|
Protection grade :
|
IP67
|
|
|
Contact material:
|
Silver alloy
|
|
|
Illumination type:
|
Ring illumination
|
|
|
Led color:
|
R G B O W Y (One led)
|
|
|
Led voltage:
|
6v,12v,24v,220v
|
|
|
Led life:
|
50,000 hours
|
|
Products Description
Company information
Product packaging
We pack 20 pieces diameter 22mm push button switch into 1 foam box to protect them .Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
FAQ
Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
Q: Can you provide samples ?
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
Q: What kind of payment do you accept ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
