Quiescent current: ≤35mA
Proximity card: EM&HID
Reading range: 3-6cm
Frequency: 125KHz
Wiegand input & output format: 26-37 bit
Dimensions: 125 * 83 * 21.7 mm
Operating Temperature: - 40~60℃
Operating Humidity： 0~95%
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sebury
-
Model Number:
-
Kit 1
-
Model:
-
sTouch W-w System Kit 1
-
Card Type:
-
Support EM,HID Card Or IC CPU Card
-
Body Material:
-
Metal
-
Keyword:
-
Access Control Solution System kit
-
Standby Current:
-
≤35mA
-
Certificate:
-
CE
-
Output Format:
-
Wiegand 26-37bit can customized
-
Warranty:
-
1 years
-
Ingress Protection:
-
IP65 (water and dust-resistant)
-
MOQ:
-
1pcs
Quick Details
-
Special Features:
-
Access control system kit
-
Customized support:
-
Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sebury
-
Model Number:
-
Kit 1
-
Model:
-
sTouch W-w System Kit 1
-
Card Type:
-
Support EM,HID Card Or IC CPU Card
-
Body Material:
-
Metal
-
Keyword:
-
Access Control Solution System kit
-
Standby Current:
-
≤35mA
-
Certificate:
-
CE
-
Output Format:
-
Wiegand 26-37bit can customized
-
Warranty:
-
1 years
-
Ingress Protection:
-
IP65 (water and dust-resistant)
-
MOQ:
-
1pcs

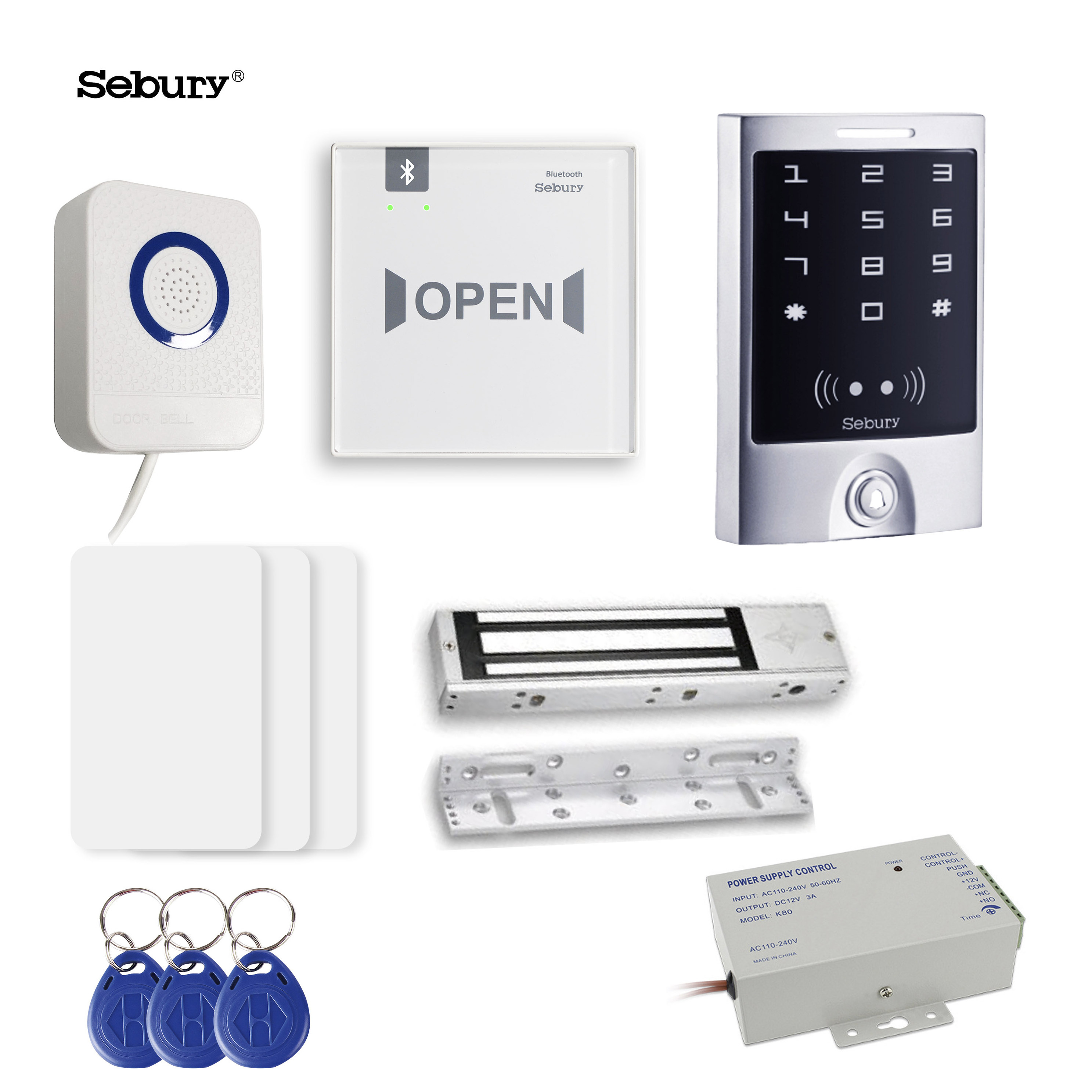

Product Description
Product Paramenters
Remember to Choose One Bracket Model for Installation
A. sTouch W-w
Quiescent current: ≤35mA
Proximity card: EM&HID
Reading range: 3-6cm
Frequency: 125KHz
Wiegand input & output format: 26-37 bit
Dimensions: 125 * 83 * 21.7 mm
Operating Temperature: - 40~60℃
Operating Humidity： 0~95%
B. F01 Bell
Working Voltage:
12V
Material:
ABS
Plastic
Ring Volume:
Max 90dB
Connection:
Wired to power supply
Dimension:
85*67*25mm
C. EM-280KGA01
Dimension:
250*53*27mm
Maximum pull: 280kg
Working voltage: 12/24V
Maximum pull: 280kg
Working voltage: 12/24V
Working current: 400/200mA
Signal feedback: NO/NC/COM
Signal feedback: NO/NC/COM
D. H3A01
Model:
TA-K80 3A
Input voltage:
DC12V
Input current:
3A
Dimension:
104*68*32mm
Weight:
0.4KG
E. sPad Bluetooth
Product model
:
sPad
Product name: Bluetooth exit button
Working temperature: - 40 ~ 60 ° C
Dimension: 86 * 86 * 12 mm
Product name: Bluetooth exit button
Working temperature: - 40 ~ 60 ° C
Dimension: 86 * 86 * 12 mm
F. MF02 / ID01A card
Working frequency:
125KHz
Reading distance: 2-10cm
Card No: 10+8 digits
Operating temperature: -40° C~60° C
Dimension of Card: 85mm × 54mm × 1.8mm
Reading distance: 2-10cm
Card No: 10+8 digits
Operating temperature: -40° C~60° C
Dimension of Card: 85mm × 54mm × 1.8mm
