- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan
-
Model Number:
-
M3-M12, self tapping screw machine
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
60*59*58cm
-
Weight (KG):
-
48 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
High Quality M3-M12 Pneumatic Tapping Machine
-
Product name:
-
Tapping machine
-
Color:
-
customer require
-
Motor:
-
servo motor
-
Package:
-
Wooden case
-
Working direct:
-
Universal/Vertical
-
Weight:
-
20kg
-
Power:
-
800
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
36
-
Range of Spindle Speed(r.p.m):
-
30 - 500 r.p.m
-
Place of Origin:
-
Henan
-
Model Number:
-
M3-M12, self tapping screw machine
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
60*59*58cm
-
Weight (KG):
-
48 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
High Quality M3-M12 Pneumatic Tapping Machine
-
Product name:
-
Tapping machine
-
Color:
-
customer require
-
Motor:
-
servo motor
-
Package:
-
Wooden case
-
Working direct:
-
Universal/Vertical
-
Weight:
-
20kg
-
Power:
-
800
Product Description
Product Description:

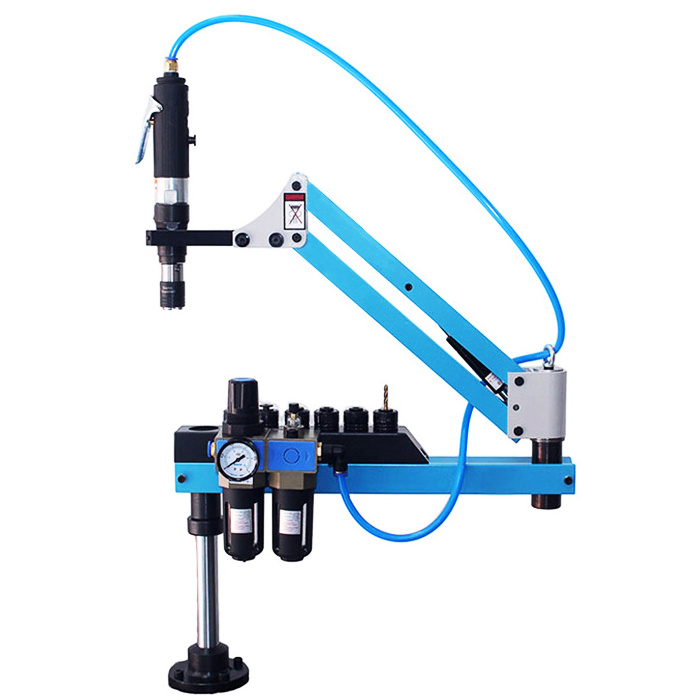

The pneumatic tapping machine uses compressed air as power. This machine collocate over loading protect equipment, will not break off thread, precise, other accessories universal headward. The machine also choose universal joint, can tap different Angle of workpieces. Cylinder with overload protection device to protect the safety of the user. simple operation,no need much experience and technique. In addition, the machine is simple to operate, without too much experience and technology.
Product features:
1.This machine has advanced mechanical design, durable, no deformation, beautiful appearance;
2.Powered by compressed air for safe, fast and efficient work;
3.Super torsion with less air flow pressure and smaller air volume;
4.Able to tap on varies materials including sundry steel, iron, copper, wood, aluminum etc.
Product Display:
Specification
|
Tapping Range
|
M3-M12
|
M3-M16
|
M6-M24
|
|
No-load Speed
|
400rpm
|
250rpm
|
900rpm
|
|
Working Pressure
|
6-8kg
|
6-8kg
|
6-8kg
|
|
Max Work Radius
|
900mm
|
900mm
|
1200mm
|
|
Net Weight
|
22KG
|
25KG
|
42KG
|
|
Tapping Direction
|
Vertical/Universal
(Optional)
|
Vertical/Universal
(Optional)
|
Vertical/Universal
(Optional)
|
|
Control panel
|
Touch screen
|
Touch screen
|
Touch screen
|
|
Chucks
|
3,4,5,6/8,10,12
|
3,4,5,6/8,10,12,14,16
|
6/8,10,12,14,16,18/20, 22,24
|
