Quick Details
-
Ink Type:
-
Special ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
220v /380v
-
Dimensions(L*W*H):
-
180*150*100cm, 173*170 *76cm
-
Weight:
-
300 KG
-
Marketing Type:
-
Hot Product 2022
-
Machinery Test Report:
-
Provide CE certificate
-
Product name:
-
1325 Inkjet 3D UV Flatbed Printer on Advertising Poster
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Printing width:
-
0.6m*0.9m~1.3m*2.5m
-
inkjet printer Packing:
-
Wooden case
-
Print head:
-
DX5/DX7
-
Resolution:
-
2880*1440dpi
-
Material:
-
Paper, PVC, Glass,, Paster, Metal, wood, plexiglass label phone etc
-
Usage:
-
Bill Printer, Card Printer, Cloths Printer, Label, Paper, Metal, Wood
-
Number of printing head:
-
single or double DX5 DX7
Quick Details
-
Print Dimension:
-
1300 x 2500mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Special ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
220v /380v
-
Dimensions(L*W*H):
-
180*150*100cm, 173*170 *76cm
-
Weight:
-
300 KG
-
Marketing Type:
-
Hot Product 2022
-
Machinery Test Report:
-
Provide CE certificate
-
Product name:
-
1325 Inkjet 3D UV Flatbed Printer on Advertising Poster
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Printing width:
-
0.6m*0.9m~1.3m*2.5m
-
inkjet printer Packing:
-
Wooden case
-
Print head:
-
DX5/DX7
-
Resolution:
-
2880*1440dpi
-
Material:
-
Paper, PVC, Glass,, Paster, Metal, wood, plexiglass label phone etc
-
Usage:
-
Bill Printer, Card Printer, Cloths Printer, Label, Paper, Metal, Wood
-
Number of printing head:
-
single or double DX5 DX7
Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
(Model: PE-UV2513)
Contact: Nicole Wechat/Whatsapp:+86 136 5988 6768 Email: Nicole@perfectlaser.net
Product Description

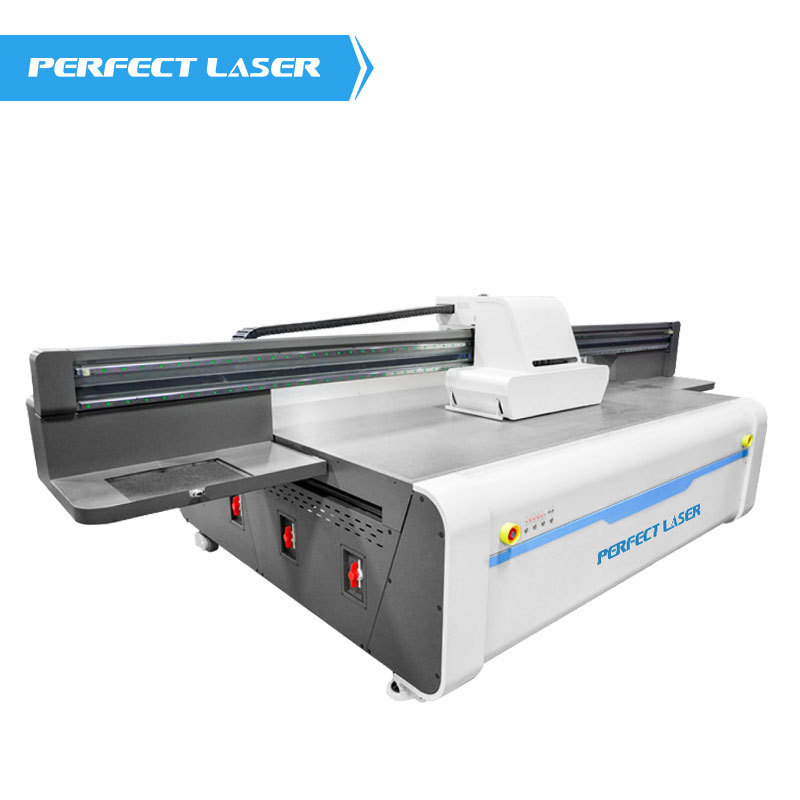

Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
made increasingly high requirements, Perfect Laser has also introduced a large format flatbed printer, model for the PE-UV2513.
1325 Inkjet Printing Machine 3D UV Flatbed Printer on Advertising Poster
is equipped with a unique anti-collision device, which can be very good protection nozzle. 2500*1300mm format, high production efficiency. And using a long-term natural aging beam, durable, no deformation. The large format
1325 Inkjet Printing Machine 3D UV Flatbed Printer on Advertising Poster
has been recognized by customers for its excellent quality.
Features of
Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
1. The rack adopts all-steel integration, the structure is more reasonable and it is not easy to be deformed, and the stability is stronger.
2. The large format flatbed printer use of high-performance screw: high-speed mute imported screw, high precision, low noise,wear-resistant, to ensure accurate positioning.
3. Configured a segmented suction platform to freely adjust the air volume to conveniently and effectively protect the nozzle and avoid ink waste, saving operating costs.
4. Professional color management software is used to ensure brilliant and full color output.
5. Ink cartridge automatic alarm system: When the ink level is less than one-third, the ink cartridge will automatically light the alarm, so that the print is uninterrupted and the production is more smooth.
2. The large format flatbed printer use of high-performance screw: high-speed mute imported screw, high precision, low noise,wear-resistant, to ensure accurate positioning.
3. Configured a segmented suction platform to freely adjust the air volume to conveniently and effectively protect the nozzle and avoid ink waste, saving operating costs.
4. Professional color management software is used to ensure brilliant and full color output.
5. Ink cartridge automatic alarm system: When the ink level is less than one-third, the ink cartridge will automatically light the alarm, so that the print is uninterrupted and the production is more smooth.
Sample & Application
Applications of
Perfect Laser - Large Format 2513 High Speed Wood Metal Glass Phone Case UV Flatbed Inkjet Printer
Large format flatbed printer can perform color inkjet printing on a variety of materials. Large format flatbed printer can not only infuse soft materials, but also can develop in diversified directions. For example, glass, wood, floor tiles, ceilings, ceramics and other materials can be sprayed with beautiful patterns, which is the development trend of digital printing technology.
Deatiled Images
Specification
|
Model type
|
Large format flatbed printer PE-UV2513
|
|
|
||
|
Maximum output size
|
2500mm*1300mm
|
|
|
||
|
Print head type
|
Ricoh Industrie nozzle
|
Ricoh Industrie nozzle
|
|
||
|
Droplet size
|
|
|
3.5pl
|
||
|
Ink Type
|
Thermal transfer ink, eco solvent ink
|
aqueous ink, sublimation ink, UV ink
|
|
||
|
Material Type
|
|
|
|
||
|
Print color
|
Precision smart dual four-color(CMYK), dual eight-color / eight-color (optional white ink scheme)
|
C/M/Y/K/W/LC/LM
|
|
||
|
Maximum media thickness
|
100mm
|
|
|
||
|
Bearing weight
|
Max 200KG
|
|
|
||
|
Printing accuracy
|
2880*1440dpi(32 PASS),1440*1440dpi
(16PASS),1440*720dpi (8PASS),720*720dpi(4 PASS),720*360dpi (2PASS) |
360dpi*360dpi,
360dpi*720dpi, 720dpi*360dpi, 720dpi*720dpi, 720dpi*1440dpi, 1440dpi*1440dpi |
720dpi
|
||
|
Lift function
|
Smart ink car lift,electronic automatic / manual smart sensors detect height adjustment
|
|
|
||
|
Image Format
|
TIFF(RGB & CMYK),BMP,PDF,EPS,JPEG
|
|
|
||
|
Ink system
|
1000ml*8 colors
|
|
|
||
|
NO. of print heads
|
2
|
3~4
|
8
|
||
|
Print speed
|
2 PASS 16M²/hr
|
Draft Mode：up to ikkok45 m²/h（4+2 print head speed）
|
3pass 720*600dpi @ 30sqm/h
|
||
|
|
4 PASS 8M²/hr
|
Standard Mode：up to 36 m²/h（4+2print head speed）
|
4pass 720*900dpi @ 20sqm/h
|
||
|
|
8 PASS 4M²/hr
|
High-precision mode:up to 24 m²/h（4+2 print head speed）
|
4pass 32m²/h
|
||
|
|
12 PASS 3.7M²/hr
|
Ultra-high precision：up to 17m²/h（4+2 print head speed）
|
6pass 20m²/h
|
||
|
|
16 PASS 2.5M²/hr
|
|
8pass 15m²/h
|
||
|
PowerRequirements
|
50Hz/60Hz,110/220VAC(±10%),1.5KW
|
|
|
||
|
Interface
|
high speed USB
|
|
|
||
|
Operating system
|
MS Window 98/Me/2000/XP/Win7
|
|
Operating system WindowsXP Home Edition or Professional Edition
|
||
|
Operation condition
|
Temperature 15℃~35℃，Reative humidity20%~80%
|
|
|
||
|
Print Workflow
|
RIP after printing
|
RIP printing
|
|
||
|
Cleaning System
|
Automatic cleaning system
|
|
|
||
|
Software
|
|
|
Maintop/Photoprint /Wasatch |
||
|
RAM
|
|
|
2G
|
||
|
Hard disk
|
|
|
80G 250G
|
||
|
Physical dimension
|
2000mm*3640mm*1260mm
|
3750mm*2100mm*1350mm
|
|
||
|
Package Size
|
2100mm*3750mm*1350mm
|
3950mm*2150mm*140mm
|
|
||
|
Curing lamp
|
Germany Osram LED light
|
|
|
||
|
RIP software
|
USA PP PHOTOPRINT
|
|
|
||
|
X axle rail brand and model
|
Taiwan HIWIN mute linear guide rail
|
|
|
||
|
X shaft belt
|
Japan Fujifilm industrial wire belt
|
|
|
||
|
X axis /Y axis servo motor
|
Taiwan Delta
|
|
|
||
|
X axis beam
|
Two times tempered high strength steel, high hardness, no deformation
|
|
|
||
|
X/Y axis print towline and wire harness
|
Germany IGUS
|
|
|
||
|
Y shaft drive screw
|
Imported grinding rod
|
|
|
||
|
Ink car lift rail brand
|
Taiwan HIWIN mute linear guide rail
|
|
|
||
|
Platform type and accuracy
|
Glass platform
|
|
|
||
|
Solvent capacity and liquid level alarm of main ink box
|
1L capacity, including liquid level alarm
|
|
|
||
|
Filtration and brand
|
Cobetter
|
|
|
||
|
Negative pressure control mode
|
Double negative color control
|
|
|
||
|
Negative pressure meter brand and model
|
Japan Fujifilm
|
|
|
||
|
Electrical switch brand
|
Japan Omron
|
|
|
||
|
Ink pipe
|
France Saint-Gobain
|
|
|
||
|
X/Y/Z axis master control driver
|
X/Y/Z three axis servo drive, delta exclusive research and development
|
|
|
||
|
Sprinkler board control
|
National exclusive network card, 3 cable transmission, easy to upgrade
|
|
|
||
|
Ink circulation system
|
White ink circulation, white ink mixing to prevent plugging
|
|
|
||
|
Frame structure
|
All steel one-piece frame, non welded or locked aluminum frame
|
|
|
||
Related Product
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
