Quick Details
-
Brand Name:
-
EPEVER
-
Model Number:
-
Tracer 4215BN
-
Work Time (h):
-
8
-
Max PV Power:
-
1040
-
Max PV Voltage:
-
24
-
Certificate:
-
CE,RoHS,ISO9001
-
Warranty:
-
2 years
-
Rated Voltage:
-
24V /48V
-
Charge mode::
-
150V max pv input mppt solar charge controllers
-
Output::
-
2 outputs with seperate control
-
Timer setting::
-
timer function for street light
-
Temperature compensation::
-
temperature compensation
-
Protection::
-
electronic protection
-
Battery setting::
-
battery type selection
-
Communications::
-
RJ45 interface with remote meter
-
Enclosure::
-
IP30
-
Certificate::
-
CE,RoHS,ISO9001
Quick Details
-
Type:
-
MPPT
-
Application:
-
Voltage Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
Tracer 4215BN
-
Work Time (h):
-
8
-
Max PV Power:
-
1040
-
Max PV Voltage:
-
24
-
Certificate:
-
CE,RoHS,ISO9001
-
Warranty:
-
2 years
-
Rated Voltage:
-
24V /48V
-
Charge mode::
-
150V max pv input mppt solar charge controllers
-
Output::
-
2 outputs with seperate control
-
Timer setting::
-
timer function for street light
-
Temperature compensation::
-
temperature compensation
-
Protection::
-
electronic protection
-
Battery setting::
-
battery type selection
-
Communications::
-
RJ45 interface with remote meter
-
Enclosure::
-
IP30
-
Certificate::
-
CE,RoHS,ISO9001

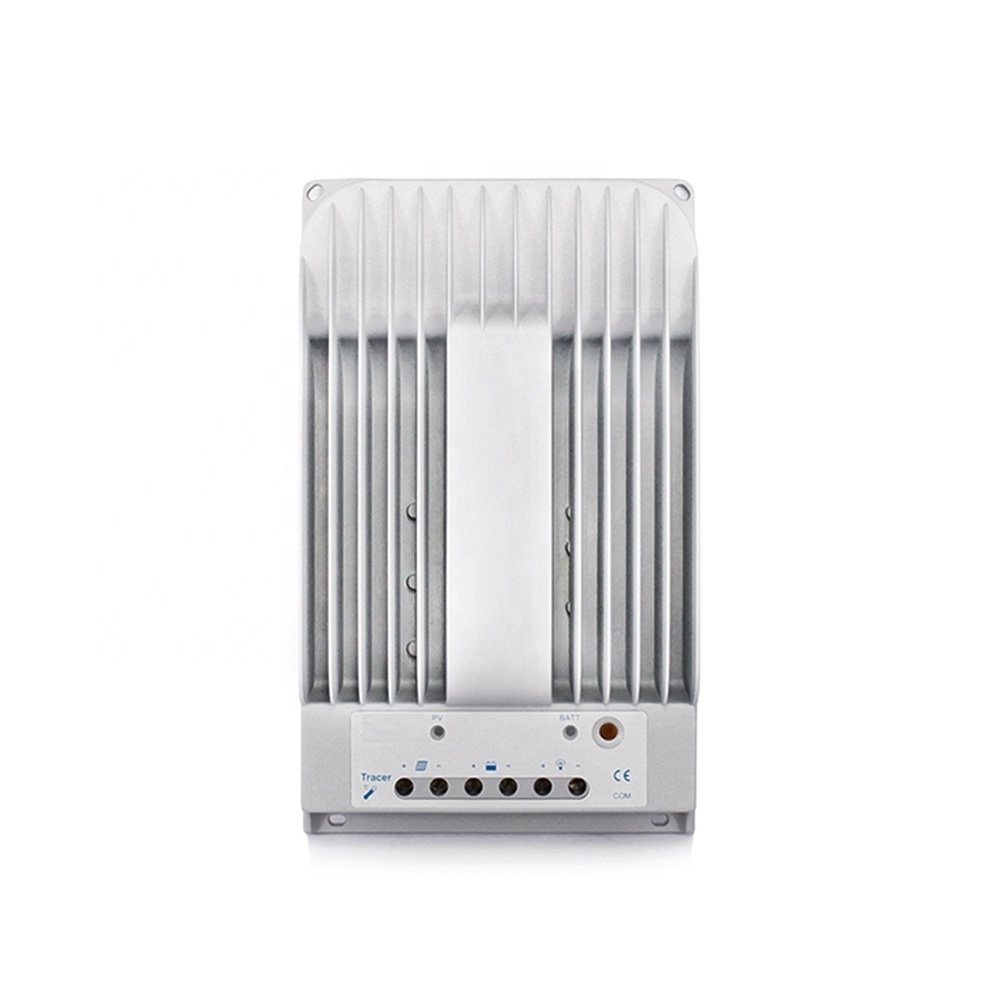

EPEVER Tracer BN Series Solar MPPT Controller
Model No:
Tracer1215BN / 2215BN / 3215BN / 4215BN
Tracer 4215BN Solar power MPPT Controller 40A PV Max Input 150V MPPT Solar Charge Controller Adjustable 12V 24V 48V
New Tracer series is SUNS energy’s second generation of MPPT controller. Compared with CLASSIC Tracer series, it has extensive communication ability. And the die-cast aluminum design ensures excellent heat dispersion. Compared to conventional PWM controller, MPPT technology increases the charge efficiency up to 30% and potentially decrease the power of solar array needed.
Features:
·Innovative MPPT technology
·Peak conversion efficiency of 98%
·High tracking efficiency up to 99%
·Several seconds tracking speed
·Die-cast aluminum design and nature cooling
·Temperature compensation
·Diversified load control to meet different requirements
·Four battery type options: Sealed, Gel, Flooded, and USER
·Intelligent lighting and timer control for solar lighting system
·Energy statistics function
·RS485 ports with MODBUS communication protocol
·Optional PC monitoring software and remote meter for real-time monitoring and battery
management parameter
setting
·Field upgradable firmware
Specification
|
Model
|
Tracer1215BN
|
Tracer2215BN
|
Tracer3215BN
|
Tracer4215BN
|
|||
|
System nominal voltage
|
12/24V Auto Work
|
|
|
|
|||
|
Rated charge current
|
10A
|
20A
|
30A
|
40A
|
|||
|
Rated discharge current
|
10A
|
20A
|
20A
|
20A
|
|||
|
Battery voltage range
|
32V
|
|
|
|
|||
|
Max. PV open circuit voltage
|
150V
|
|
|
|
|||
|
Max. PV input power
|
130W (12V)
|
260W (12V)
|
390W (12V)
|
520W (12V)
|
|||
|
|
260W (24V)
|
520W (24V)
|
780W (24V)
|
1040W (24V)
|
|||
|
Equalize charging voltage
|
Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V
|
|
|
|
|||
|
Boost charging voltage
|
Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V, USER: 9~17V
|
95.6%
|
97.3%
|
97.2%
|
|||
|
Float charging voltage
|
Gel /Sealed /Flooded: 13.8V, USER: 9~17V
|
|
|
|
|||
|
Low voltage reconnect voltage
|
Gel /Sealed /Flooded: 12.6V, USER: 9~17V
|
|
|
|
|||
|
Low voltage disconnect voltage
|
Gel /Sealed /Flooded: 11.1V, USER: 9~17V
|
|
|
|
|||
|
Self-consumption
|
≤50mA(12V) ≤27mA(24V)
|
|
|
|
|||
|
Grounding
|
Common negative
|
|
|
|
|||
|
Temp. compensation
|
-3mV/℃/2V
|
|
|
|
|||
|
Communication Port
|
RS485 / RJ45 interface
|
|
|
|
|||
|
Mechanical
|
Tracer1215BN
|
Tracer2215BN
|
Tracer3215BN
|
Tracer4215BN
|
|||
|
Overall dimension
|
196x118x36mm
|
217x143x56mm
|
281x160x60mm
|
303x183x64mm
|
|||
|
Terminal
|
4mm2
|
10mm2
|
16mm2
|
25mm2
|
|||
|
Net weight
|
0.9kg
|
1.5kg
|
2.3kg
|
2.9kg
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
Environmental
|
|
|
|
|
|||
|
Working temperature
|
-35℃~+55℃
|
|
|
|
|||
|
Storage temperature
|
-35℃~+80℃
|
|
|
|
|||
|
Humidity
|
≤95% N.C.
|
|
|
|
|||
Optional Accessories
