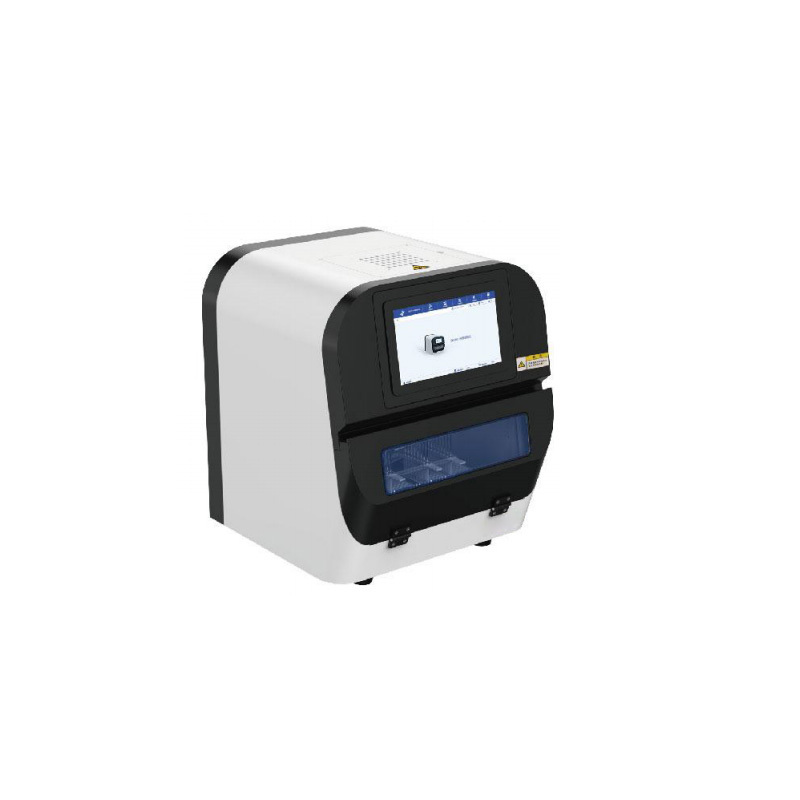

HS32 medical laboratory nucleic acid purification extractor automation equipment Factory direct sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $3250

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: OEM

Place of Origin:: JIANGSU

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Brand Name:: OEM

Model Number:: OEM

Place of Origin:: JIANGSU

Features of Nucleic Acid Extraction Extractor System:

Open system, fully automatic, stable results and good repeatability
7-inch touch screen, easy to use, fast response
Automatic control system, connect to computers wirelessly
User-defined cracking and elution temperature
Free programming to meet the needs of different reagent
Extract rapidly 15-60 minutes , 32 samples can be extracted at the same time
According to different reagents to optimize the purification scheme to achieve higher extraction efficiency and purity
Built-in UV disinfection and air duct, avoid cross contamination

Specification

Multi-mode Operation	List mode, shortcut, view mode
Processing Volume	20µL-1000µL
Sample Throughput	1-32
Magnetic Bead Recovery	>98%
Extracting the Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing	Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type	Magnetic bead open platform
Extraction Time	15-60 min/round (depending on the reagent used)
Internal Program	Be able to store >500 groups of programs
Program Management	Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design	After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door is closed
Built-in Air Duct	Built-in air duct to avoid cross infection
Safety Protection	Support power-off protection and continuous operation after power is restored
Flashlight	Yes
Ultraviolet Irradiation	Yes
Package Size (WDH)mm	650540560
Gross Weight(kg)	50
