- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOING
-
Voltage:
-
220V, 380V
-
Power:
-
24.5KW
-
Dimension(L*W*H):
-
25m*10m*6m
-
Weight:
-
5000 kg
-
Diesel rate:
-
85%-90%
-
Heating method:
-
Conduction oil heating
-
Raw material:
-
Tire or plastic pyrolysis oil, waste engine oil
-
Application:
-
Waste Oil Refinery Equipment
-
End product:
-
Diesel, asphalt
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Advantages:
-
Environmentally Friendly
-
Material of Reactor:
-
standard Q245R boiler steel
Quick Details
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
Distillation reactor
-
Flow:
-
500kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOING
-
Voltage:
-
220V, 380V
-
Power:
-
24.5KW
-
Dimension(L*W*H):
-
25m*10m*6m
-
Weight:
-
5000 kg
-
Diesel rate:
-
85%-90%
-
Heating method:
-
Conduction oil heating
-
Raw material:
-
Tire or plastic pyrolysis oil, waste engine oil
-
Application:
-
Waste Oil Refinery Equipment
-
End product:
-
Diesel, asphalt
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Advantages:
-
Environmentally Friendly
-
Material of Reactor:
-
standard Q245R boiler steel
PRODUCT VIEW

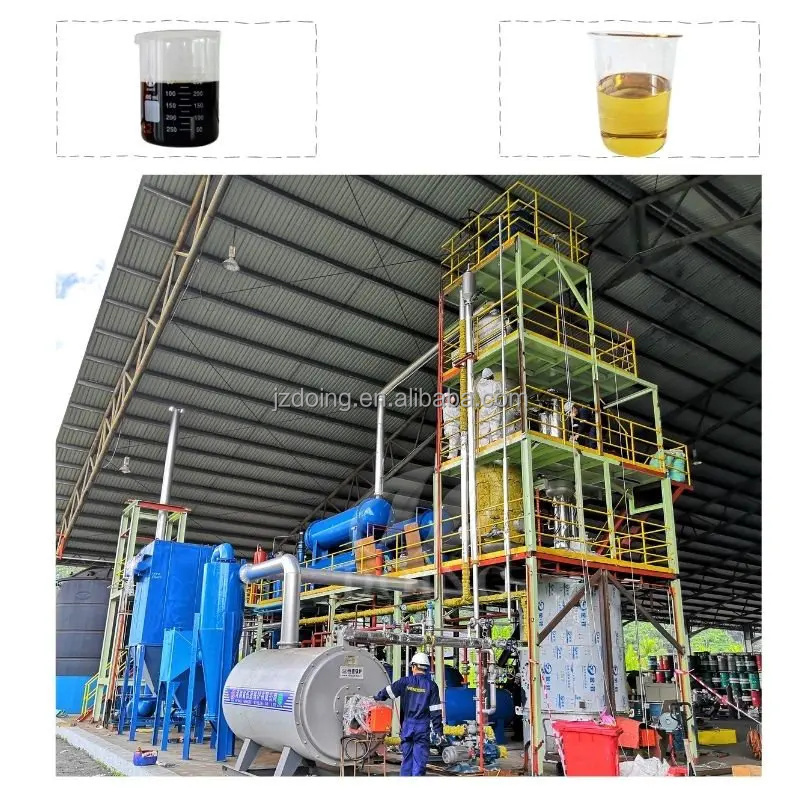

Waste Oil/Crude Oil Distillation Plant
DOING Waste oil/Crude Oil Distillation plant
can process waste engine oil, used motor oil, black oil, tire plastic pyrolysis oil to clean diesel and asphalt. The obtained diesel can be used in
diesel engines, heavy machinery, large agricultural machinery, mining machinery, generators, boilers, trucks and ships etc.; or directly used as a heating fuel;
PRODUCT SPECIFICATIONS
|
Items
|
Contents
|
|
Model
|
DY-500KG, DY-1T, DY-5T, DY-10T, DY-15T, DY- 20T...
|
|
Raw material
|
used motor oil, waste engine oil, tire pyrolysis oil, plastic pyrolysis oil
|
|
Structure form
|
Vertical (easy cleaning and maintenance)
|
|
Heating method
|
Indirect heating to prolong the machine service life
|
|
Operating pressure
|
Constant pressure
|
|
Heating material
|
Coal, charcoal, fuel gas, fuel oil
|
|
Average out-put oil rate
|
95%
|
|
Material of reactor
|
4 reactor with different durable materials
|
|
Thickness of reactor
|
18mm
|
|
Mode of cooling
|
Recycled water cooling
|
|
Power in total
|
20 Kw
|
|
Service life
|
average 7 years
|
|
Land area
|
180 square meters
|
Pyrolysis/Waste Oil to Diesel Recycling Process
Equipment application&Final Products
Profit Analysis
Project Case
Why Choose Us
FAQ
Q:
Are there any bad smell or odor from DOING used motor oil to diesel distillation plant while distillation system is working?
A: There will be no smell at all as the gas produced by DOING pyrolysis oil distillation plant will be purified by our exclusive tail gas purification unit before emission.
Q: What is the yield of this used motor oil to diesel distillation plant?
A: Typically the yield of our pyrolysis oil distillation plant is between 85-90% (depending on variations of water content, light HC and others ingredients from waste oil.)
Q: How many areas are required to build the used motor oil to diesel distillation plant?
A: The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.
Q: What is the warranty of the used motor oil to diesel distillation plant?
A: 12 months free guanantee and life long standard paid service.
Q: Can you install the production line and train our stuffs?
A: Yes we can. We'll send engineers to help you install the pyrolysis oil distillation plant and train your workers until the machine is skillfully operated.
A: There will be no smell at all as the gas produced by DOING pyrolysis oil distillation plant will be purified by our exclusive tail gas purification unit before emission.
Q: What is the yield of this used motor oil to diesel distillation plant?
A: Typically the yield of our pyrolysis oil distillation plant is between 85-90% (depending on variations of water content, light HC and others ingredients from waste oil.)
Q: How many areas are required to build the used motor oil to diesel distillation plant?
A: The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.
Q: What is the warranty of the used motor oil to diesel distillation plant?
A: 12 months free guanantee and life long standard paid service.
Q: Can you install the production line and train our stuffs?
A: Yes we can. We'll send engineers to help you install the pyrolysis oil distillation plant and train your workers until the machine is skillfully operated.
