Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems. (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gauge sizes.
- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
Non-Integrally Jacketed
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei Huatong HT Cable
-
Model Number:
-
Photovoltaic Wire Type PV
-
Certification:
-
UL Certification
-
Standard:
-
UL 4703 for TYPE PV, UL 44 for TYPE RHW-2 UL 854 for TYPE USE-2
-
Rated Voltage:
-
600V, 1000V or 2000V
-
Conductor:
-
Single Conductor
-
Size:
-
18AWG - 2000kcmil stranded con
-
Colors:
-
Black, Red, White
-
Insulation:
-
XLPO
-
Temperature range:
-
-40°C to 90°C
-
Resistance:
-
Flame Resistance VW-1
Quick Details
-
Insulation Material:
-
Electron beam cross-linked, halogen free and flame retardant compound
-
Application:
-
Interconnection wiring photovoltaic power systems
-
Conductor Material:
-
Copper or Aluminum Conductor
-
Jacket:
-
Non-Integrally Jacketed
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei Huatong HT Cable
-
Model Number:
-
Photovoltaic Wire Type PV
-
Certification:
-
UL Certification
-
Standard:
-
UL 4703 for TYPE PV, UL 44 for TYPE RHW-2 UL 854 for TYPE USE-2
-
Rated Voltage:
-
600V, 1000V or 2000V
-
Conductor:
-
Single Conductor
-
Size:
-
18AWG - 2000kcmil stranded con
-
Colors:
-
Black, Red, White
-
Insulation:
-
XLPO
-
Temperature range:
-
-40°C to 90°C
-
Resistance:
-
Flame Resistance VW-1
Products Description

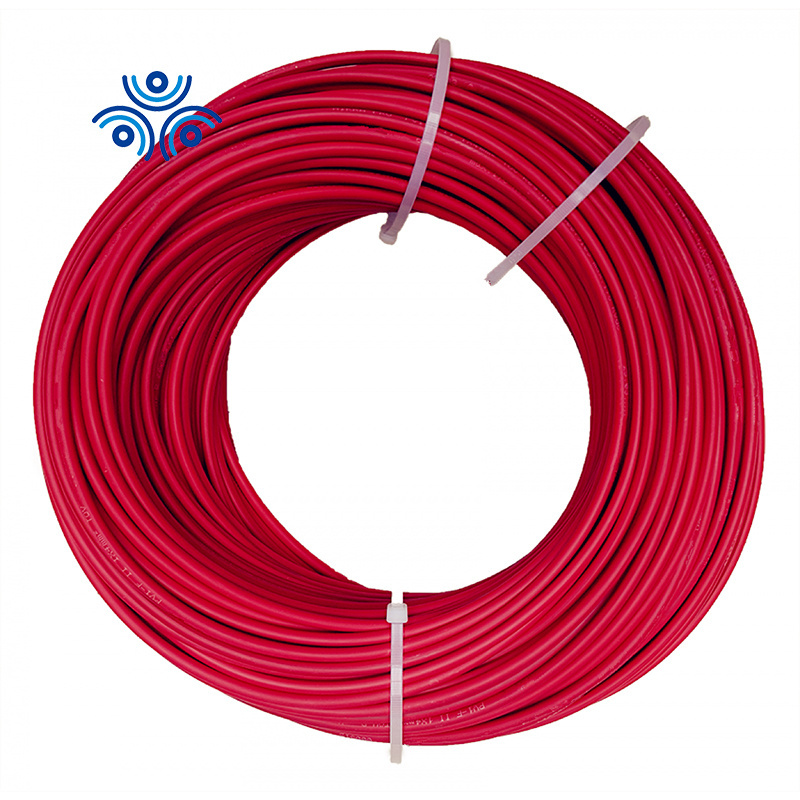

PV Wire 10 AWG UL 4703 Solar Cable Power Connection DC for Panel Type Ring Length Jackery Extension
Overview
PV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90°C, 105°C, 125°C or 150°C dry and 90°C wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-clad aluminum, or 18 AWG - 2000 kcmil stranded copper, tined copper conductors.
Applications
This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in balance of system (BOS) integration.
Standards
PV (Photovoltaic) with UL certificate standard
UL 4703 for TYPE PV
UL 44 for TYPE RHW-2
UL 854 for TYPE USE-2
UL 4703 for TYPE PV
UL 44 for TYPE RHW-2
UL 854 for TYPE USE-2
Specifications
--Maximum Operating Voltage: 600 VRMS (UL PV)
Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--RoHS Compliant
--Flame Resistance:VW-1
--Conductor AWG: 12 to 2000 AWG
Physical Characteristics:
--Temperature Rating: -40°C to 90°C
--RoHS Compliant
--Flame Resistance:VW-1
--Conductor AWG: 12 to 2000 AWG
Construction
Photovoltaic Wire, Type PV
Details Images
Product Paramenters
|
AA-8000 Aluminum conductor 1000V/2000V
|
|
|
|
|
|
|
||||||
|
Size
|
Diameter of conductor
|
Min. Number of
Strands |
Insulation
Thickness |
Nominal O.D.
|
Net Weight
|
Maximum conductor resistance at temperature 20℃
|
||||||
|
AWG or kcmil
|
mm
|
n
|
mm
|
mm
|
kg/km
|
Ω/km
|
||||||
|
12
|
2.16
|
7
|
1.90
|
6.0
|
46
|
8.880
|
||||||
|
10
|
2.72
|
7
|
1.90
|
6.5
|
56
|
5.590
|
||||||
|
8
|
3.40
|
7
|
2.15
|
7.7
|
80
|
3.520
|
||||||
|
6
|
4.29
|
7
|
2.15
|
8.6
|
102
|
2.210
|
||||||
|
4
|
5.41
|
7
|
2.15
|
9.7
|
135
|
1.390
|
||||||
|
3
|
6.02
|
7
|
2.15
|
10.3
|
156
|
1.100
|
||||||
|
2
|
6.81
|
7
|
2.15
|
11.1
|
183
|
0.875
|
||||||
|
1
|
7.59
|
18
|
2.66
|
12.9
|
244
|
0.693
|
||||||
|
1/0
|
8.53
|
18
|
2.66
|
13.9
|
286
|
0.550
|
||||||
|
2/0
|
9.55
|
18
|
2.66
|
14.9
|
337
|
0.436
|
||||||
|
3/0
|
10.74
|
18
|
2.66
|
16.1
|
400
|
0.346
|
||||||
|
4/0
|
12.07
|
18
|
2.66
|
17.4
|
477
|
0.274
|
||||||
|
250
|
13.21
|
35
|
3.04
|
19.3
|
579
|
0.232
|
||||||
|
300
|
14.48
|
35
|
3.04
|
20.6
|
665
|
0.194
|
||||||
|
350
|
15.65
|
35
|
3.04
|
21.7
|
750
|
0.166
|
||||||
|
400
|
16.74
|
35
|
3.04
|
22.8
|
836
|
0.145
|
||||||
|
450
|
17.78
|
35
|
3.04
|
23.9
|
914
|
0.129
|
||||||
|
500
|
18.69
|
35
|
3.04
|
24.8
|
1028
|
0.116
|
||||||
|
550
|
19.69
|
58
|
3.43
|
26.6
|
1133
|
0.1060
|
||||||
|
600
|
20.65
|
58
|
3.43
|
27.5
|
1217
|
0.0967
|
||||||
|
650
|
21.46
|
58
|
3.43
|
28.3
|
1298
|
0.0893
|
||||||
|
700
|
22.28
|
58
|
3.43
|
29.1
|
1382
|
0.0829
|
||||||
|
750
|
23.06
|
58
|
3.43
|
29.9
|
1463
|
0.0774
|
||||||
|
800
|
23.83
|
58
|
3.43
|
30.7
|
1543
|
0.0725
|
||||||
|
900
|
25.37
|
58
|
3.43
|
32.2
|
1707
|
0.0645
|
||||||
|
1000
|
26.92
|
58
|
3.43
|
33.8
|
1871
|
0.0580
|
||||||
|
AA-8000 Aluminum conductor 600V
|
|
|
|
|
|
|
||||||
|
Size
|
Diameter of conductor
|
Min. Number of
Strands |
Insulation
Thickness |
Nominal O.D.
|
Net Weight
|
Maximum conductor resistance at temperature 20℃
|
||||||
|
AWG or
kcmil |
mm
|
n
|
mm
|
mm
|
kg/km
|
Ω/km
|
||||||
|
12
|
2.16
|
7
|
1.52
|
5.2
|
36
|
8.8800
|
||||||
|
10
|
2.72
|
7
|
1.52
|
5.76
|
45
|
5.5900
|
||||||
|
8
|
3.4
|
7
|
1.9
|
7.2
|
71
|
3.5200
|
||||||
|
6
|
4.29
|
7
|
1.9
|
8.09
|
92
|
2.2100
|
||||||
|
4
|
5.41
|
7
|
1.9
|
9.21
|
124
|
1.3900
|
||||||
|
3
|
6.02
|
7
|
1.9
|
9.82
|
145
|
1.1000
|
||||||
|
2
|
6.81
|
7
|
1.9
|
10.61
|
170
|
0.8750
|
||||||
|
1
|
7.59
|
18
|
2.41
|
12.41
|
230
|
0.6930
|
||||||
|
1/0
|
8.53
|
18
|
2.41
|
13.35
|
271
|
0.5500
|
||||||
|
2/0
|
9.55
|
18
|
2.41
|
14.37
|
320
|
0.4360
|
||||||
|
3/0
|
10.74
|
18
|
2.41
|
15.56
|
382
|
0.3460
|
||||||
|
4/0
|
12.07
|
18
|
2.41
|
16.89
|
457
|
0.2740
|
||||||
|
250
|
13.21
|
35
|
2.79
|
18.79
|
557
|
0.2320
|
||||||
|
300
|
14.48
|
35
|
2.79
|
20.06
|
642
|
0.1940
|
||||||
|
350
|
15.65
|
35
|
2.79
|
21.23
|
725
|
0.1660
|
||||||
|
400
|
16.74
|
35
|
2.79
|
22.32
|
810
|
0.1450
|
||||||
|
450
|
17.78
|
35
|
2.79
|
23.36
|
887
|
0.1290
|
||||||
|
500
|
18.69
|
35
|
2.79
|
24.27
|
999
|
0.1160
|
||||||
|
550
|
19.69
|
58
|
3.18
|
26.05
|
1103
|
0.1060
|
||||||
|
600
|
20.65
|
58
|
3.18
|
27.01
|
1185
|
0.0967
|
||||||
|
650
|
21.46
|
58
|
3.18
|
27.82
|
1265
|
0.0893
|
||||||
|
700
|
22.28
|
58
|
3.18
|
28.64
|
1348
|
0.0829
|
||||||
|
750
|
23.06
|
58
|
3.18
|
29.42
|
1428
|
0.0774
|
||||||
|
800
|
23.83
|
58
|
3.18
|
30.19
|
1508
|
0.0725
|
||||||
|
900
|
25.37
|
58
|
3.18
|
31.73
|
1670
|
0.0645
|
||||||
|
1000
|
26.92
|
58
|
3.18
|
33.28
|
1832
|
0.0580
|
||||||
|
Copper conductor 1000V/2000V
|
|
|
|
|
|
|
||||||
|
Size
|
Diameter of conductor
|
Min. Number of
Strands |
Insulation
Thickness |
Nominal O.D.
|
Net Weight
|
Maximum conductor resistance at temperature 20℃
|
||||||
|
AWG or kcmil
|
mm
|
n
|
mm
|
mm
|
kg/km
|
Ω/km
|
||||||
|
12
|
2.16
|
7
|
1.90
|
6.0
|
66
|
5.4300
|
||||||
|
10
|
2.72
|
7
|
1.90
|
6.5
|
88
|
3.4100
|
||||||
|
8
|
3.40
|
7
|
2.15
|
7.7
|
130
|
2.1400
|
||||||
|
6
|
4.29
|
7
|
2.15
|
8.6
|
183
|
1.3500
|
||||||
|
4
|
5.41
|
7
|
2.15
|
9.7
|
265
|
0.8480
|
||||||
|
3
|
6.02
|
7
|
2.15
|
10.3
|
321
|
0.6730
|
||||||
|
2
|
6.81
|
7
|
2.15
|
11.1
|
391
|
0.5340
|
||||||
|
1
|
7.59
|
18
|
2.66
|
12.9
|
506
|
0.4230
|
||||||
|
1/0
|
8.53
|
18
|
2.66
|
13.9
|
617
|
0.3350
|
||||||
|
2/0
|
9.55
|
18
|
2.66
|
14.9
|
754
|
0.2660
|
||||||
|
3/0
|
10.74
|
18
|
2.66
|
16.1
|
927
|
0.2110
|
||||||
|
4/0
|
12.07
|
18
|
2.66
|
17.4
|
1140
|
0.1670
|
||||||
|
250
|
13.21
|
35
|
3.04
|
19.3
|
1366
|
0.1420
|
||||||
|
300
|
14.48
|
35
|
3.04
|
20.6
|
1608
|
0.1180
|
||||||
|
350
|
15.65
|
35
|
3.04
|
21.7
|
1849
|
0.1010
|
||||||
|
400
|
16.74
|
35
|
3.04
|
22.8
|
2097
|
0.0885
|
||||||
|
450
|
17.78
|
35
|
3.04
|
23.9
|
2318
|
0.0787
|
||||||
|
500
|
18.69
|
35
|
3.04
|
24.8
|
2663
|
0.0709
|
||||||
|
550
|
19.69
|
58
|
3.43
|
26.6
|
2867
|
0.0644
|
||||||
|
600
|
20.65
|
58
|
3.43
|
27.5
|
3106
|
0.0590
|
||||||
|
650
|
21.46
|
58
|
3.43
|
28.3
|
3343
|
0.0545
|
||||||
|
700
|
22.28
|
58
|
3.43
|
29.1
|
3589
|
0.0506
|
||||||
|
750
|
23.06
|
58
|
3.43
|
29.9
|
3826
|
0.0472
|
||||||
|
800
|
23.83
|
58
|
3.43
|
30.7
|
4063
|
0.0443
|
||||||
|
900
|
25.37
|
58
|
3.43
|
32.2
|
4545
|
0.0393
|
||||||
|
1000
|
26.92
|
58
|
3.43
|
33.8
|
5027
|
0.0345
|
||||||
|
Copper conductor 600V
|
|
|
|
|
|
|
||||||
|
Size
|
Diameter of conductor
|
Min. Number of
Strands |
Insulation
Thickness |
Nominal O.D.
|
Net Weight
|
Maximum conductor resistance at temperature 20℃
|
||||||
|
AWG or kcmil
|
mm
|
n
|
mm
|
mm
|
kg/km
|
Ω/km
|
||||||
|
12
|
2.16
|
7
|
1.52
|
5.2
|
61
|
5.4300
|
||||||
|
10
|
2.72
|
7
|
1.52
|
5.8
|
95
|
3.4100
|
||||||
|
8
|
3.40
|
7
|
1.90
|
7.2
|
131
|
2.1400
|
||||||
|
6
|
4.29
|
7
|
1.90
|
8.1
|
186
|
1.3500
|
||||||
|
4
|
5.41
|
7
|
1.90
|
9.2
|
262
|
0.8480
|
||||||
|
3
|
6.02
|
7
|
1.90
|
9.8
|
319
|
0.6730
|
||||||
|
2
|
6.81
|
7
|
1.90
|
10.6
|
416
|
0.5340
|
||||||
|
1
|
7.59
|
18
|
2.41
|
12.4
|
506
|
0.4230
|
||||||
|
1/0
|
8.53
|
18
|
2.41
|
13.4
|
617
|
0.3350
|
||||||
|
2/0
|
9.55
|
18
|
2.41
|
14.4
|
756
|
0.2660
|
||||||
|
3/0
|
10.74
|
18
|
2.41
|
15.6
|
929
|
0.2110
|
||||||
|
4/0
|
12.07
|
18
|
2.41
|
16.9
|
1172
|
0.1670
|
||||||
|
250
|
13.21
|
35
|
2.79
|
18.8
|
1369
|
0.1420
|
||||||
|
300
|
14.48
|
35
|
2.79
|
20.1
|
1609
|
0.1180
|
||||||
|
350
|
15.65
|
35
|
2.79
|
21.2
|
1848
|
0.1010
|
||||||
|
400
|
16.74
|
35
|
2.79
|
22.3
|
2095
|
0.0885
|
||||||
|
450
|
17.78
|
35
|
2.79
|
23.4
|
2314
|
0.0787
|
||||||
|
500
|
18.69
|
35
|
2.79
|
24.3
|
2706
|
0.0709
|
||||||
|
550
|
19.69
|
58
|
3.18
|
26.1
|
2864
|
0.0644
|
||||||
|
600
|
20.65
|
58
|
3.18
|
27.0
|
3101
|
0.0590
|
||||||
|
650
|
21.46
|
58
|
3.18
|
27.8
|
3338
|
0.0545
|
||||||
|
700
|
22.28
|
58
|
3.18
|
28.6
|
3583
|
0.0506
|
||||||
|
750
|
23.06
|
58
|
3.18
|
29.4
|
3819
|
0.0472
|
||||||
|
800
|
23.83
|
58
|
3.18
|
30.2
|
4067
|
0.0443
|
||||||
|
900
|
25.37
|
58
|
3.18
|
31.7
|
4548
|
0.0393
|
||||||
|
1000
|
26.92
|
58
|
3.18
|
33.3
|
4557
|
0.0345
|
||||||
