Quick Details
-
Voltage:
-
Requirment
-
Power:
-
11kw
-
Dimension(L*W*H):
-
6500*1300*1100mm
-
Weight:
-
10000 kg
-
Product name:
-
Vineyard post roll forming machine
-
Color:
-
Optional Roll Forming Machine
-
Tolerance:
-
+-0.5mm
-
Capacity:
-
8-12m/min
-
Control System:
-
PLC with touch screen
-
Material thickness:
-
1.0-2.0mm
-
Roller material:
-
Gcr15, Quench HRC58-62 Plated Chrome
-
Shaft material:
-
45# Steel
-
Advantages:
-
High Efficent
-
Application:
-
Building
Quick Details
-
Work Pressure:
-
12Mpa
-
Production Capacity:
-
8-12m/min
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
Requirment
-
Power:
-
11kw
-
Dimension(L*W*H):
-
6500*1300*1100mm
-
Weight:
-
10000 kg
-
Product name:
-
Vineyard post roll forming machine
-
Color:
-
Optional Roll Forming Machine
-
Tolerance:
-
+-0.5mm
-
Capacity:
-
8-12m/min
-
Control System:
-
PLC with touch screen
-
Material thickness:
-
1.0-2.0mm
-
Roller material:
-
Gcr15, Quench HRC58-62 Plated Chrome
-
Shaft material:
-
45# Steel
-
Advantages:
-
High Efficent
-
Application:
-
Building

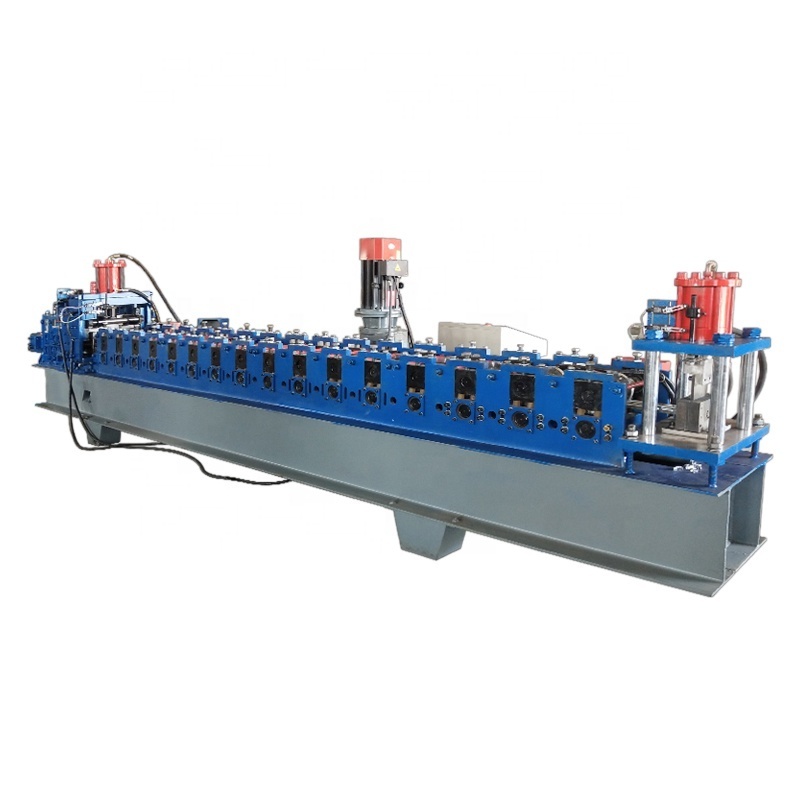

Automatic Omega profile metal stud grape stake vineyard trellis post Ceiling C Channel Roll Forming Machine
Product Description
Technical parameter
| Name | Description |
| Material Thickness | 1.5-2mm, Galvanized steel or blank steel |
| Rolling Speed | 8-12 m/min |
| Roller Stations | About 16 stations |
| Roller Material | Gcr15, Quench HRC58-62 Plated Chrome |
| Main Motor Power | 11 kw |
| Transmission | Gearbox driven |
| Control system | PLC with touch screen |
| Material of cutting | Cr12Mov with quench HRC58-62° |
| Tolerance | 6m+-1.5mm |
| Frame | H type steel |
Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
