Quick Details
-
Resolution:
-
0.1°C
-
Channel:
-
8 channels
-
Range:
-
-200°C~1800°C
-
Speed:
-
Fast: 100ms/channel Medium: 500ms/channel, Low: 1s/channel
-
Interface:
-
U-disk interface Mini-USB (virtual serial port)
-
Graduation:
-
Thermocouple J/K/T/E/S/N/B/R
-
Correction:
-
Error correction for each channel
-
Power Supply:
-
Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC
Quick Details
-
Brand Name:
-
Decca
-
Model Number:
-
AT4808
-
Product name:
-
Digital thermocouple Temperature measuring instrument for industrial
-
Resolution:
-
0.1°C
-
Channel:
-
8 channels
-
Range:
-
-200°C~1800°C
-
Speed:
-
Fast: 100ms/channel Medium: 500ms/channel, Low: 1s/channel
-
Interface:
-
U-disk interface Mini-USB (virtual serial port)
-
Graduation:
-
Thermocouple J/K/T/E/S/N/B/R
-
Correction:
-
Error correction for each channel
-
Power Supply:
-
Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC

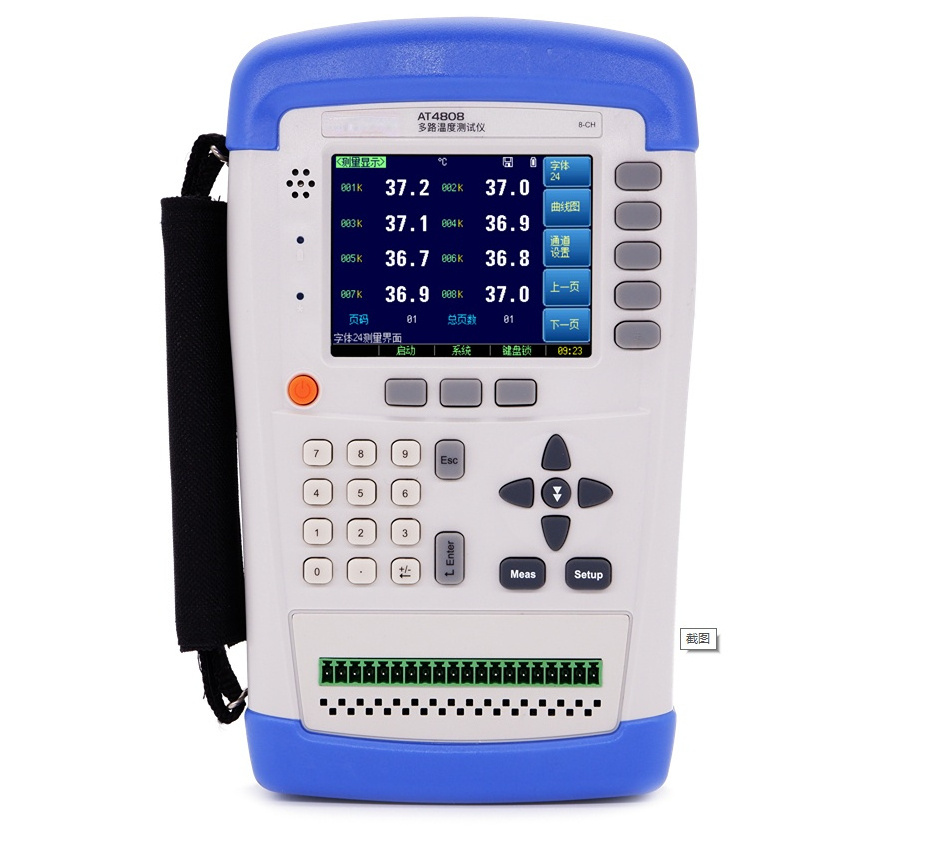

AT4808 handheld multi-channel temperature meter adopts high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly.
AT4808 has the function of checking broken thermocouple, high/low beep function and communication transmission.
128 channels temperature data can be extended, compatible with various temperature sensors. Equipped with Mini-USB (virtual series port) interface to realize data acquisition, analysis and print through the standard computer software. Support USB disk storage, real-time sampling data storage.
The users can adjust data for each channel independently.
|
SPECIFICATIONS |
|
|
AT4808 Handheld Temperature Meter |
|
|
Graduation |
Thermocouple: J/K/T/E/S/N/B/R |
|
Accuracy |
0.2%+1°C |
|
Measurement Range |
-200°C~1300°C (variation depend on graduation) |
|
Resolution |
0.1°C |
|
Channel |
8 channels Can be extended to 128 channels |
|
Speed |
Fast: 100ms/channel Medium: 500ms/channel, Low: 1s/channel |
|
Correction |
Error correction for each channel |
|
Comparator |
High & low beep High & low value setting individually for each channel |
|
Interface |
U-disk interface Mini-USB (virtual serial port) |
|
Cold Junction Compensation |
Accuracy: 0.5°C |
|
Others |
TFT-LCD True-color LCD display,broken thermocouple checking function |
|
GENERAL FEATURES |
|
|
Power Supply (ATL909) |
Input: 100-240V~50/60Hz 0.35A, Output: 9V 1A DC |
|
Battery Parameters |
8.4V, Li, 2200mA rechargeable battery |
|
Battery charging time |
Single continuous charging time: Max 300Min |
|
Battery Lifetime |
≥8 hours |
|
Dimension & Weight |
Outside(mm): 130.23 (Width)x210.76(Height)x37.88 (Depth) 650g |
|
ORDER INFORMATION |
|
|
Accessories |
K type thermocouple 8 teams ATL909: DC power adaptor ATL202 Carrying Case ATL804: lithium battery ATL105 Mini-USB communication cable ATS45 data acquisition software |
