Quick Details
-
Speed:
-
1500rpm/1800rpm/2300rpm/2500rpm
-
Power:
-
48kw/60kw/74kw/78kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
F6L912
-
Cylinder No.:
-
6
-
Speed:
-
1500rpm/1800rpm/2300rpm/2500rpm
-
Power:
-
48kw/60kw/74kw/78kw

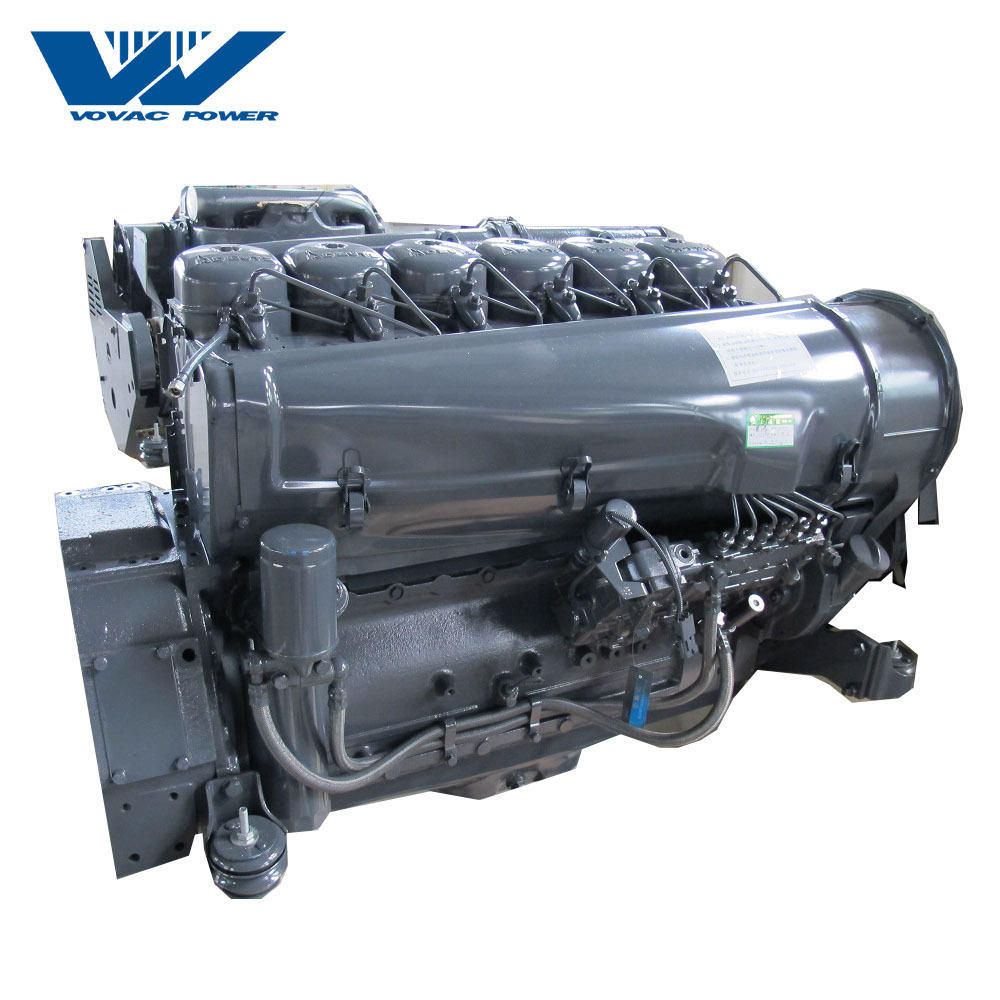

High Quality F6L912 6 Cylinder Deutz Air Cooled Diesel Engine With Competitive Price
--------F6L912 Deutz Air Cooled Diesel Engine Specificaiton:
| Model Diesel Engine | F6L912 |
| Brand | Deutz air cooled |
| Rated Output | 48KW/60KW/74KW/78KW |
| Rated Speed (r/min) | 1500RPM/1800RPM/2300RPM/2500RPM |
| Bore×Stroke | 100*120mm |
| Induction system | Naturally aspirated |
| Governor | Mechanical governor |
| Displacement | 5.655L |
| Compression Ratio | 17 |
| Cylinders | 6 |
| Direction of Rotation(facing cooling blower) | Clockwise |
| 100% fuel consumption at power rating 100% | 238g/kw.h |
| Lubrication system Capacity | 14L |
| Electric system | 12V /24V |
| Type | wated cooled, inline, 4 stroke, direct injection |
---------Pictures
------------------Deutz Air Cooled Diesel Engine Catalogue
| Model | Cylinder No. | Bore/stroke mm | Displa L | Power/speed KW/rpm | Weight | ||||
| L*W*H(mm) | (kg) | ||||||||
| F2L912 | 2 | 100/120 | 1.88 | 14/1500 | 17/1800 | 20/2300 | 678×704×872 | 245 | |
| F3L912 | 3 | 100/120 | 2.828 | 24/1500 | 29/1800 | 36/2300 | 38/2500 | 730×673×815 | 275 |
| F4L912 | 4 | 100/120 | 3.77 | 32/1500 | 38/1800 | 46/2300 | 51/2500 | 860×673×815 | 300 |
| F4L912T | 4 | 100/120 | 3.77 | 41/1500 | 48/1800 | 52/2000 | 865×673×815 | 314 | |
| F4L913 | 4 | 102/125 | 4.068 | 34/1500 | 40/1800 | 50/2300 | 56/2500 | 860×673×820 | 310 |
| F6L912 | 6 | 100/120 | 5.655 | 48/1500 | 60/1800 | 74/2300 | 78/2500 | 1120×673×815 | 410 |
| F6L912T | 6 | 100/120 | 5.655 | 61/1500 | 72/1800 | 81/2300 | 85/2500 | 1120×673×815 | 420 |
| F6L913 | 6 | 102/125 | 6.128 | 51/1500 | 65/1800 | 79/2300 | 85/2500 | 1120×673×820 | 420 |
| BF6L913 | 6 | 102/125 | 6.128 | 74/1500 | 88/1800 | 112/2300 | 118/2500 | 1134×711×910 | 485 |
| BF6L913C | 6 | 102/125 | 6.128 | 84/1500 | 105/1800 | 125/2300 | 141/2500 | 1134×711×990 | 510 |
---------------- A uxiliary products :
---------------Any requirements, welcome contact with me
