Quick Details
-
Brand Name:
-
ONESTO
-
Model Number:
-
ACS
-
Rated Current:
-
63A-100A
-
Product name:
-

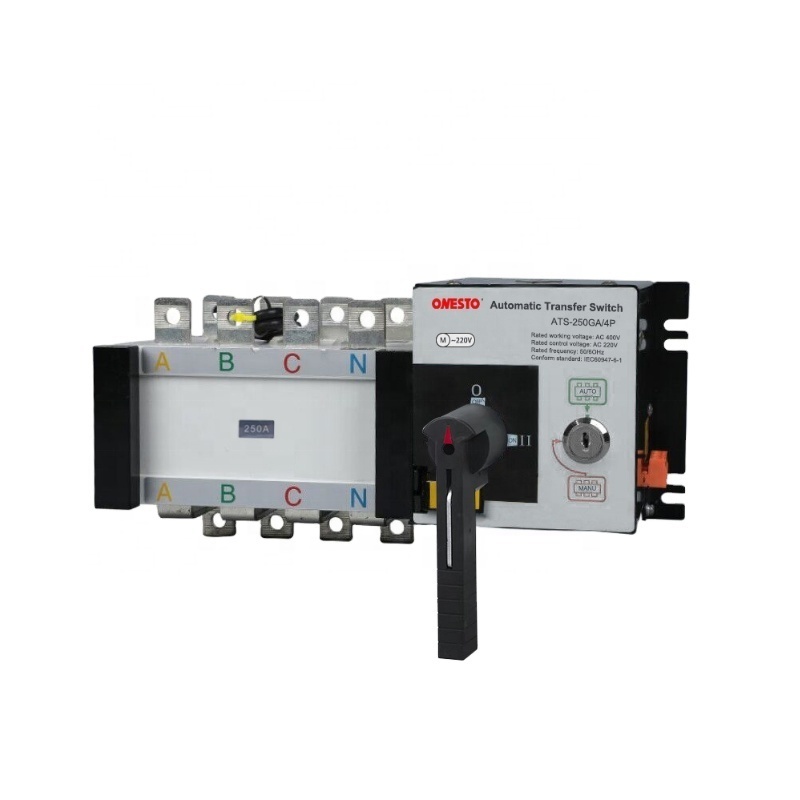

Automatic Transfer Switch ATS
-
Rated working voltage:
-
AC 400V
-
Rated control voltage:
-
AC 220V
-
Rated frequency:
-
50/60Hz
-
Conform standard:
-
IEC60947-6-1
-
Operation type:
-
Manual or Auto
-
Indicator:
-
With Indicate light for Main power, and standby power.
-
Pole:
-
3/4 Pole
Quick Details
-
Type:
-
PC, I-O-II. Auto
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONESTO
-
Model Number:
-
ACS
-
Rated Current:
-
63A-100A
-
Product name:
-
Automatic Transfer Switch ATS
-
Rated working voltage:
-
AC 400V
-
Rated control voltage:
-
AC 220V
-
Rated frequency:
-
50/60Hz
-
Conform standard:
-
IEC60947-6-1
-
Operation type:
-
Manual or Auto
-
Indicator:
-
With Indicate light for Main power, and standby power.
-
Pole:
-
3/4 Pole
1.
In case of power failure, switch the power consumption mode rapidly and enable the standby power supply; Switch to the main power supply after an incoming call
2.
When switching two power supplies, if automatic switching is not required under special circumstances, it can also be set to manual switching
3. Two in One out,
Easier and more convenient wiring
4.
High ability to break short-circuit current and short arcing distance
Detailed analysis of product panel is more convenient to use
5.
3.5cm wide installation guide rail installation
Convenient, more secure and worry-free to use
|
Frame
|
100
|
250
|
630
|
1600
|
3200
|
||||
|
Rated current(A)
|
16-100
|
125-250
|
315-630
|
800-1600
|
2000-3200
|
||||
|
Rated insulation voltage(Ui)
|
690V
|
|
800V
|
|
|
||||
|
Rated concussion withstand voltage(Uimp)
|
8KV
|
|
|
|
|
||||
|
Rated working voltage(Ue)
|
AC 400V
|
|
|
|
|
||||
|
Using category
|
AC-33B
|
|
|
AC-33iB
|
|
||||
|
Rated short-circuit connection capacity
|
8KA
|
17KA
|
26KA
|
67.5KA
|
|
||||
|
Rated short-time withstand current(lcw)
|
5kA/30ms
|
10kA/60ms
|
12.6kA/60ms
|
32kA/60ms
|
|
||||
|
Transfer time I-II or II-I
|
2.5s
|
0.6s
|
|
1.2s/1.8s/2.4s
|
|
||||
|
Control voltage
|
DC24V, 48V, 110V, AC220V
|
|
|
|
|
||||
|
Weight(kg) 4Pole
|
3.4kg
|
6-7.6kg
|
15.8-16.8kg
|
36-38.6kg
|
55-67kg
|
||||
